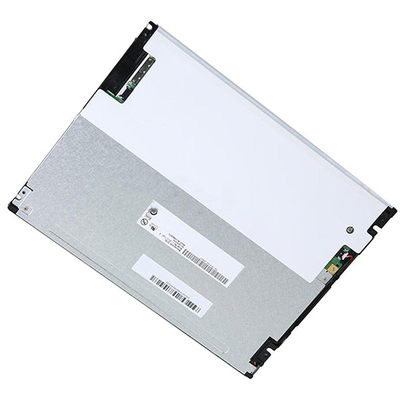

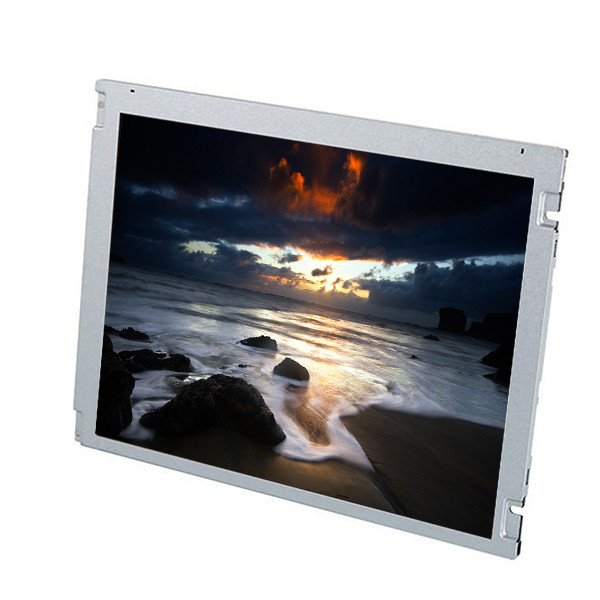

8.4inch LCM 640x480 400 600:1 262K CCFL TTL LQ084V3DG01 LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ084V3DG01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ084V3DG01 | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA, 95PPI | Active Area: | 170.88(W)×128.16(H) Mm |
| Outline Size: | 199.5(W)×149.5(H) Mm | Luminance: | 400 Cd/m² (Typ.) |
| Contrast Ratio: | 600:1 (Typ.) (Transmission) | Viewing Angle: | 65/65/55/60 (Typ.)(CR≥10) |
| Reaction Time: | 5/21 (Typ.)(Tr/Td) | Application: | Industrial |
Product Description
8.4inch LCM 640x480 400 600:1 262K CCFL TTL LQ084V3DG01 LCD Display
LQ084V3DG01 Product details :
| SHARP LCD SCREEN LQ084V3DG01 | |
| Brand | SHARP |
| Model Name | LQ084V3DG01 |
| Diagonal Size | 8.4inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 640(RGB)×480, VGA, 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 170.88(W)×128.16(H) mm |
| Outline(mm) | 199.5(W)×149.5(H) mm |
| Bezel Opening | 175.5(W)×133.0(H) mm |
| Contrast | Antiglare |
| Display | 400 cd/m² (Typ.) |
| contrast | 600:1 (Typ.) (Transmission) |
| Viewing angle | 65/65/55/60 (Typ.)(CR≥10) |
| Work Mode | TN, Normally White, Transmissive |
| Number of color | 262K |
| Reaction time | 5/21 (Typ.)(Tr/Td) |
| Backlight type | 2 pcs CCFL , 50K hours, |
| Refresh Rate | 60Hz |
| Touch function | No touch |
| Used for | Industrial |
| Panel weight | 400g (Typ./Max.) |
| Signal Type | LVDS (1 ch, 6-bit) , 33 pins , terminal |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage temperature: -30 ~ 80 °C Operating temperature: -30 ~ 80 °C |
| 8.4inch LCM 640x480 400 600:1 262K CCFL TTL LQ084V3DG01 LCD Display | |
LQ084V3DG01 Pls note:
1:Description before buying, please carefully read the title, please make sure the board models and machine models, if you have not understand problem, you can always send email to us, we will reply to your mail, thank you!
2.we will test it before we sent .
3. All product have been tested before shipping. If the product is faulty during shipping, please inform us immediately after your received it.
4: Don't open a dispute because the product is old. We have a detailed description. If you can't accept it, please don't make the order, and avoid causing unnecessary disputes. Thank you!
5:Part of the product is new and original, in the case of inventories have new stock, we will send all the new products, if in the case of new stock sold out, we will send the old products, but all products are strictly tested before sending, so don't worry!hope you can understand!
6:you can contact to us ,we can change goods and maintenance, If you are not satisfied, We will try our best to satisfy you without any loss.
LQ084V3DG01 Shippment:
The panel will be 100% check and test before shippment.
We will handle your order within 3-5 business day after got your order(Weekends And Holidays Excluded).
It usually takes10-45
business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
We also can offer Expedited International Shipping(FedEx,UPS or DHL) with extra fee if you need the item urgently.
Buyer is responsible for customs duty fee.
LQ084V3DG01 Return& Refund:
Please read the item description and check the pictures carefully before bidding.
Refund or Return is available if the item arrived broken,not as described or does not do what it's supposed to.
Return items must have all original packaging and in good condition.
LQ084V3DG01 Payment terms:
Credit Card, L/C, PayPal, western union, Bank Transfer, T/T, BOLETO, ESCROW, Mastercard, VISA, e-checking etc.
LQ084V3DG01 Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
LQ084V3DG01 Warranty :
1, We take 3 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP.
LQ084V3DG01 Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination
Customs , It depends the laws in the destination country .
LQ084V3DG01 FAQ:
Q: How long will I receive my goods LQ064V3DG06 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of LQ064V3DG06 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of LQ064V3DG06 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
LQ084V3DG01 Shipping and Package :
