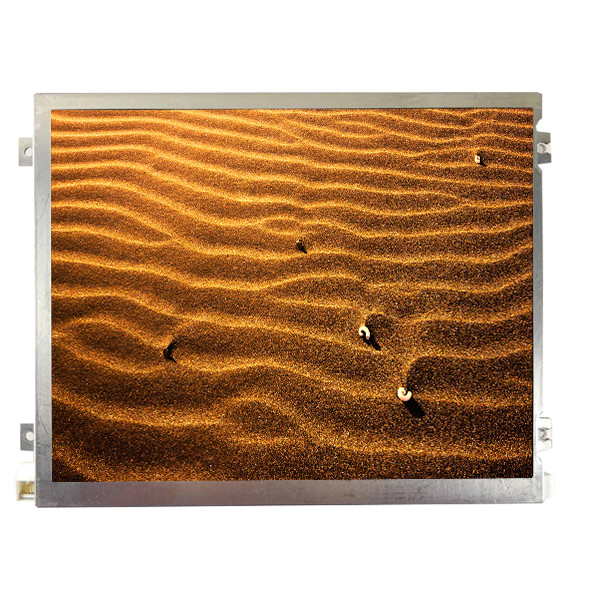

LQ084V3DG02 8.4 640*480 95PPI Industrial LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ084V3DG02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ084V3DG02 | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA, 95PPI | Active Area: | 170.88(W)×128.16(H) Mm |
| Outline Size: | 199.5(W)×149.5(H) Mm | Luminance: | 400 Cd/m² (Typ.) |
| Contrast Ratio: | 600:1 (Typ.) (Transmission) | Viewing Angle: | 65/65/55/60 (Typ.)(CR≥10) |
| Reaction Time: | 5/21 (Typ.)(Tr/Td) | Application: | Industrial |
Product Description
LQ084V3DG02 8.4 640*480 95PPI Industrial LCD Display Screen
LQ084V3DG02 Product details :
| SHARP LCD SCREEN LQ084V3DG02 | |
| Manufacturer | SHARP |
| Model Name | LQ084V3DG02 |
| Screen size | 8.4inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 640(RGB)×480, VGA, 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 170.88(W)×128.16(H) mm |
| Outline Size | 199.5(W)×149.5(H) mm |
| Open area | 175.5(W)×133.0(H) mm |
| Contrast | Matte, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (Transmission) |
| Viewing angle | 65/65/55/60 (Typ.)(CR≥10) |
| Work Mode | TN, Normally White, Transmissive |
| Number of color | 262K |
| Reaction time | 5/21 (Typ.)(Tr/Td) |
| Backlight type | 6S2P WLED , 50K hours , No Driver |
| Refresh rate | 60Hz |
| Touch function | Without |
| Panel weight | 400g (Typ./Max.) |
| Used for | Industrial |

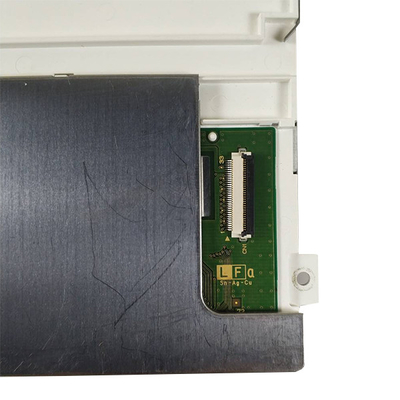

| Signal Type | Parallel RGB (1 ch, 6-bit) , 33 pins Connector |
| Voltage Supply | 3.3V (Typ.)(VCC) |
| Max. Ratings | Storage temperature: -30 ~ 80 °C Operating temperature: -30 ~ 80 °C |
| LQ084V3DG02 8.4 640*480 95PPI Industrial LCD Display Screen | |
LQ084V3DG02 Pls note:
1:Description before buying, please carefully read the title, please make sure the board models and machine models, if you have not understand problem, you can always send email to us, we will reply to your mail, thank you!
2.we will test it before we sent .
3. All product have been tested before shipping. If the product is faulty during shipping, please inform us immediately after your received it.
4: Don't open a dispute because the product is old. We have a detailed description. If you can't accept it, please don't make the order, and avoid causing unnecessary disputes. Thank you!
5:Part of the product is new and original, in the case of inventories have new stock, we will send all the new products, if in the case of new stock sold out, we will send the old products, but all products are strictly tested before sending, so don't worry!hope you can understand!
6:you can contact to us ,we can change goods and maintenance, If you are not satisfied, We will try our best to satisfy you without any loss.
LQ084V3DG02 Shippment:
The panel will be 100% check and test before shippment.
We will handle your order within 3-5 business day after got your order(Weekends And Holidays Excluded).
It usually takes10-45
business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
We also can offer Expedited International Shipping(FedEx,UPS or DHL) with extra fee if you need the item urgently.
Buyer is responsible for customs duty fee.
LQ084V3DG02 Return& Refund:
Please read the item description and check the pictures carefully before bidding.
Refund or Return is available if the item arrived broken,not as described or does not do what it's supposed to.
Return items must have all original packaging and in good condition.
LQ084V3DG02 Payment terms:
Credit Card, L/C, PayPal, western union, Bank Transfer, T/T, BOLETO, ESCROW, Mastercard, VISA, e-checking etc.
LQ084V3DG02 Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
LQ084V3DG02 Warranty :
1, We take 3 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP.
LQ084V3DG02 FAQ:
Q: If I place order now,when will you ship the goods of LQ084V3DG02 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of LQ084V3DG02 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods LQ084V3DG02 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of LQ084V3DG02 ?
A: We accept T/T , Paypal , western union .
LQ084V3DG02 Shipping and Package :
