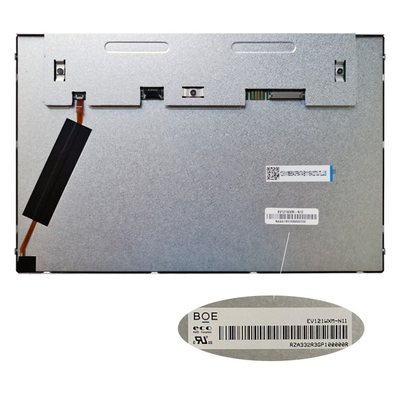

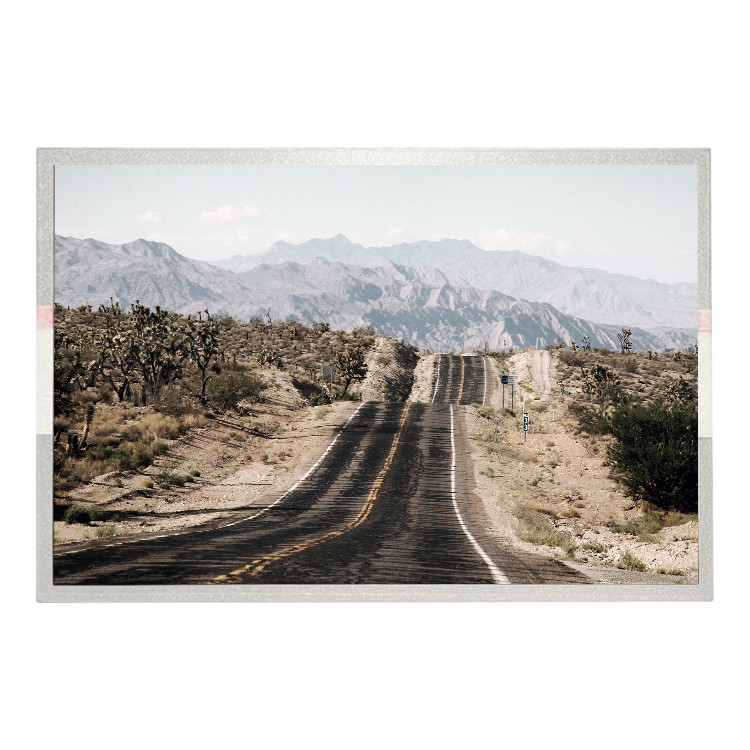

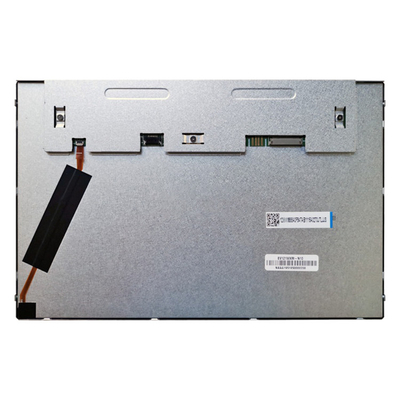

Original 1280*800 12.1 inch LCD monitor LCD screen LCD panel EV121WXM-N11
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | EV121WXM-N11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | EV121WXM-N11 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 124PPI | Active Area: | 261.12(W)×163.2(H) Mm |
| Bezel Opening: | 264.12(W)×166.2(H) Mm | Outline Dim.: | 277.7(W)×180.6(H) Mm |
| Luminance: | 400 Cd/m² (Typ.) | Contrast Ratio: | 1200:1 (Typ.) (TM) |
| Weight: | 556g (Typ.) | Designed For: | Industrial / Medical Imaging |
Product Description
Original 1280*800 12.1 inch LCD monitor LCD screen LCD panel EV121WXM-N11
EV121WXM-N11 Product details :
| BOE LCD Screen EV121WXM-N11 | |
|---|---|
| Brand | BOE |
| Model P/N | EV121WXM-N11 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 124PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 261.12(W)×163.2(H) mm |
| Bezel Opening | 264.12(W)×166.2(H) mm |
| Outline Dim. | 277.7(W)×180.6(H) mm |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 48% NTSC |
| Light Source | WLED , 50K hours , With LED Driver |
| Weight | 556g (Typ.) |
| Designed For | Industrial / Medical Imaging |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Original 1280*800 12.1 inch LCD monitor LCD screen LCD panel EV121WXM-N11 | |
EV121WXM-N11 Before order:
Before the order, please confirm whether your machine model matching with this LCD screen, if not sure, please contact us
International Orders:
1.Buyer is responsible for all customs fees and import taxes.
2.International orders may take several weeks longer than expected to arrive due to delays in customs processing.
3.And to send to Japan or South Korea via Fedex or DHL , we to declare actual price,the South Korea recipient needs to provide a customs clearance serial number, for example: "P123987654321" . Please provide us with the customs clearance serial number.
EV121WXM-N11 Shipping and Package :
EV121WXM-N11 Shipping:
-> Your items will be shipped by Fedex to all of country,unless which country can not ship it by fedex,then we will choose DHL OR UPS OR EMS ,Pls leave your phone number to us.
-> We will ship the item to you on the same day,or within 1-2 business days after getting your payment. Shipping time depends on the country you are living in, your country's customs and the peak periods in particular.
-> Buyer is under obligation if (in case) the item is liable to your country's customs duties. We are not responsible for your country's any taxes or customs fee.
-> We only ship to confirmed addresses (PayPal, Visa, Master Card, Discover and American Express). Please contact us immediately via Email if you will replace or change your shipping addresses.
EV121WXM-N11 Return Terms:
1. If you receive defective item, please kindly notify us within 14 days. We will guide you the returning instruction for replacement or refund.
2. If you purchased in improper condition, please NOTE that the sipping and handling fee will not be refund, all return shipping fee should paid by the buyer unless item DOA.
3. We reserve the right to refuse any returns for objective reasons.
EV121WXM-N11 FAQ:
Q: How can I trace my order of EV121WXM-N11 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods EV121WXM-N11 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods of EV121WXM-N11 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of EV121WXM-N11 ?
A: Of course!If you make a large order, we will give you a discount.
