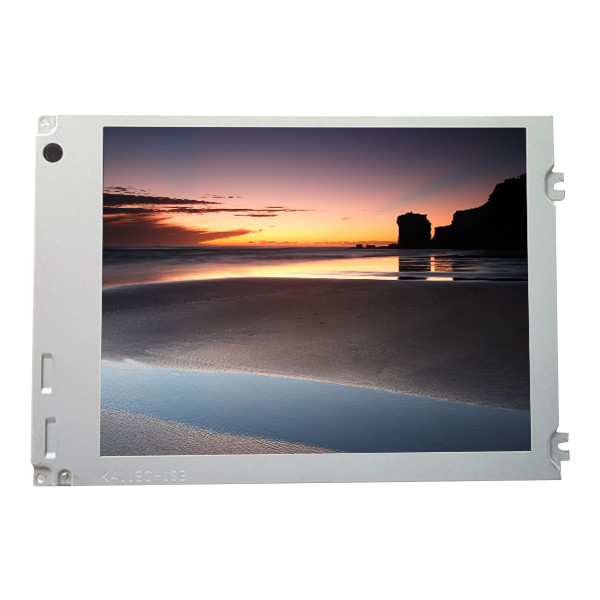

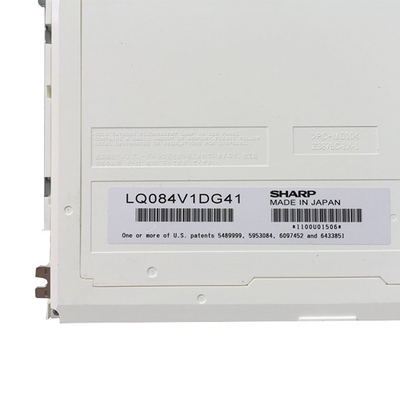

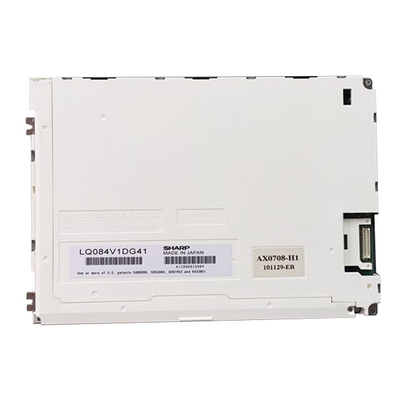

8.4inch LCM 640x480 300 600:1 262K CCFL TTL LQ084V1DG41 LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ084V1DG41 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ084V1DG41 | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA, 95PPI | Active Area: | 170.88(W)×128.16(H) Mm |
| Outline Size: | 221(W)×152.4(H) Mm | Brightness: | 300 Cd/m² |
| Contrast Ratio: | 600 :1 (Typ.) (TM) | Response Time: | 10/25 (Typ.)(Tr/Td) Ms |
| Viewing Angle: | 70/70/60/50 (Typ.)(CR≥10) | Application: | Industrial |
Product Description
8.4inch LCM 640x480 300 600:1 262K CCFL TTL LQ084V1DG41 LCD Display
LQ084V1DG41 Product details :
| SHARP LCD SCREEN LQ084V1DG41 | |
| Brand | SHARP |
| Model Name | LQ084V1DG41 |
| Diagonal Size | 8.4inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 640(RGB)×480, VGA, 95PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 170.88(W)×128.16(H) mm |
| Outline Dim. | 221(W)×152.4(H) mm |
| Bezel Opening | 175.9(W)×134.6(H) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (Transmission) |
| Viewing angle | 70/70/60/50 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| View Direction | 12 o'clock |
| Number of color | 262K |
| Reaction time | 10/25 (Typ.)(Tr/Td) ms |
| Light Source | CCFL [1 pcs] , W/O Driver |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Designed For | Industrial |
| Panel weight | 430g (Typ./Max.) |
| Interface Type | Parallel RGB (1 ch, 6-bit) 31 pins Connector |
| Power Supply | 3.3/5.0V (Typ.) |
| Environment | Operating Temperature: -10 ~ 65 °C ; Storage Temperature: -30 ~ 70 °C |
| 8.4inch LCM 640x480 300 600:1 262K CCFL TTL LQ084V1DG41 LCD Display | |
LQ084V1DG41 Pls note:
1:Description before buying, please carefully read the title, please make sure the board models and machine models, if you have not understand problem, you can always send email to us, we will reply to your mail, thank you!
2.we will test it before we sent .
3. All product have been tested before shipping. If the product is faulty during shipping, please inform us immediately after your received it.
4: Don't open a dispute because the product is old. We have a detailed description. If you can't accept it, please don't make the order, and avoid causing unnecessary disputes. Thank you!
5:Part of the product is new and original, in the case of inventories have new stock, we will send all the new products, if in the case of new stock sold out, we will send the old products, but all products are strictly tested before sending, so don't worry!hope you can understand!
6:you can contact to us ,we can change goods and maintenance, If you are not satisfied, We will try our best to satisfy you without any loss.
LQ084V1DG41 Shippment:
The panel will be 100% check and test before shippment.
We will handle your order within 3-5 business day after got your order(Weekends And Holidays Excluded).
It usually takes10-45
business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
We also can offer Expedited International Shipping(FedEx,UPS or DHL) with extra fee if you need the item urgently.
Buyer is responsible for customs duty fee.
LQ084V1DG41 Return& Refund:
Please read the item description and check the pictures carefully before bidding.
Refund or Return is available if the item arrived broken,not as described or does not do what it's supposed to.
Return items must have all original packaging and in good condition.
LQ084V1DG41 Payment terms:
Credit Card, L/C, PayPal, western union, Bank Transfer, T/T, BOLETO, ESCROW, Mastercard, VISA, e-checking etc.
LQ084V1DG41 Friendly Reminder :
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
LQ084V1DG41 FAQ:
Q: If I order LQ084V1DG41 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for LQ084V1DG41 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of LQ084V1DG41 ?
A: Of course!If you make a large order, we will give you a discount.
Q:Can You declare my order of LQ084V1DG41 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of LQ084V1DG41 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of LQ084V1DG41 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
LQ084V1DG41 Shipping and Package :
