LQ084S3LG01 8.4 inch TFT LCD Display Screen 800*600
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ064V3DG06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ064V3DG06 | Diagonal Size: | 6.4" |
|---|---|---|---|
| Resolution: | 640×480(RGB), VGA, 124PPI | Active Area: | 130.56 × 97.92 Mm (H×V) |
| Outline Size: | 161.3 × 117× 12.5 Mm (H×V×D) | Brightness: | 350 Cd/m² |
| Contrast Ratio: | 500 :1 (Typ.) (TM) | Response Time: | 5/21 (Typ.)(Tr/Td) Ms |
| Viewing Angle: | 70/70/40/70(Typ.)(CR≥10) | Application: | Industrial |
Product Description

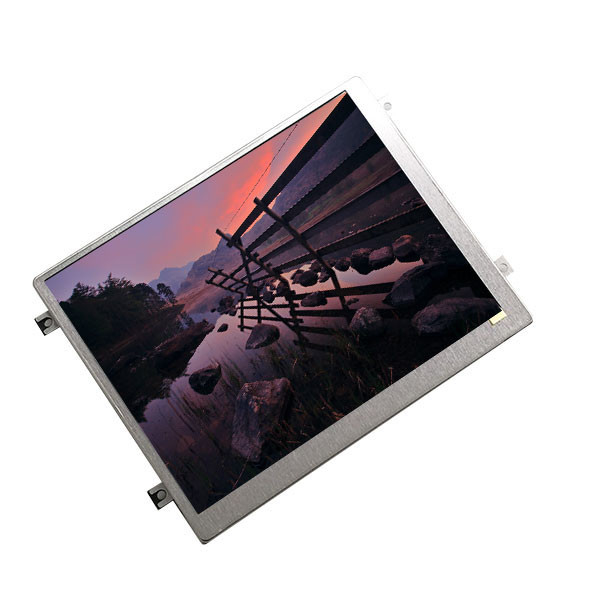

640*480 LQ064V3DG06 RGB crystal tft display screen 6.4 inch lcd panel
LQ064V3DG06 Product details :
| SHARP LCD SCREEN LQ064V3DG06 | |
| Brand | SHARP |
| Model Name | LQ064V3DG06 |
| Diagonal Size | 6.4inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 640×480(RGB), VGA, 124PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 130.56 × 97.92 mm (H×V) |
| Outline Size | 161.3 × 117× 12.5 mm (H×V×D) |
| Bezel Opening | 135.3 × 103.0 mm (H×V) |
| Contrast | Antiglare, Hard coating (3H) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (Transmission) |
| Viewing angle | 70/70/40/70(Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Number of color | 262K |
| Reaction time | 5/21 (Typ.)(Tr/Td) ms |
| Backlight type | WLED , 50K hours, LED |
| Refresh rate | 60Hz |
| Touch function | Without |
| Application | Industrial |
| Panel weight | 200g (Typ./Max.) |

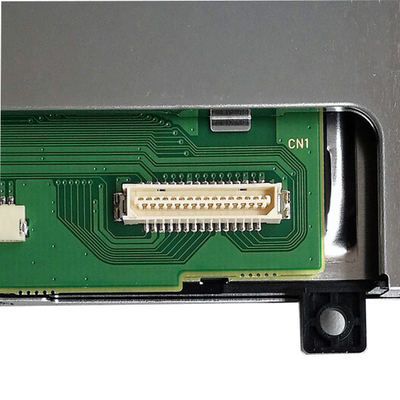

| Signal Interface | LVDS (1 ch, 6-bit) , 31pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| 640*480 LQ064V3DG06 RGB crystal tft display screen 6.4 inch lcd panel | |
LQ064V3DG06 Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
LQ064V3DG06 About Shipping:
We will test them strictly before shipping.
we will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
LQ064V3DG06 Return& Refund:
Please read the item description and check the pictures carefully before bidding.
Refund or Return is available if the item arrived broken,not as described or does not do what it's supposed to.
Return items must have all original packaging and in good condition.
LQ064V3DG06 Payment terms:
Credit Card, L/C, PayPal, western union, Bank Transfer, T/T, BOLETO, ESCROW, Mastercard, VISA, e-checking etc.
LQ064V3DG06 Friendly Reminder :
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
LQ064V3DG06 FAQ:
Q: How long will I receive my goods LQ064V3DG06 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of LQ064V3DG06 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of LQ064V3DG06 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
LQ064V3DG06 Shipping and Package :
