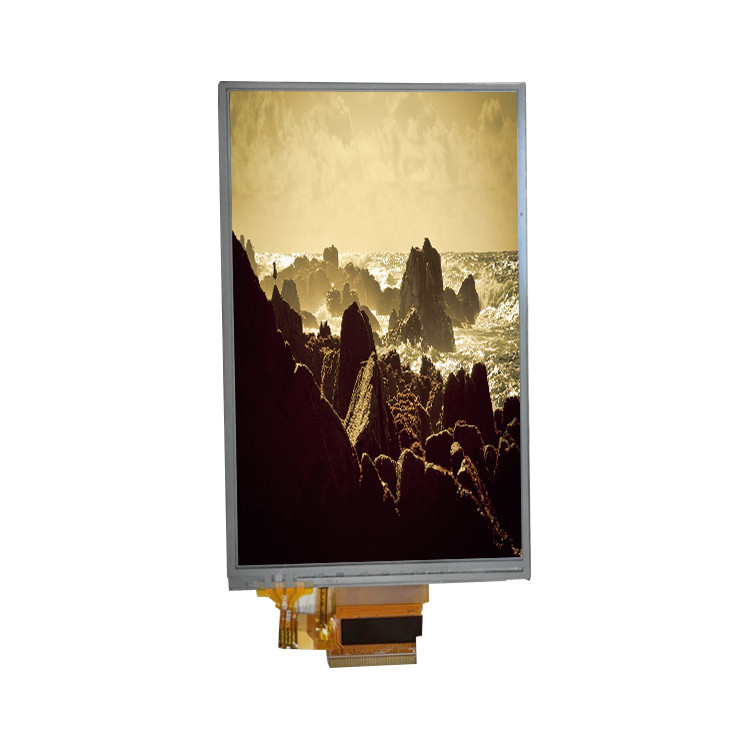

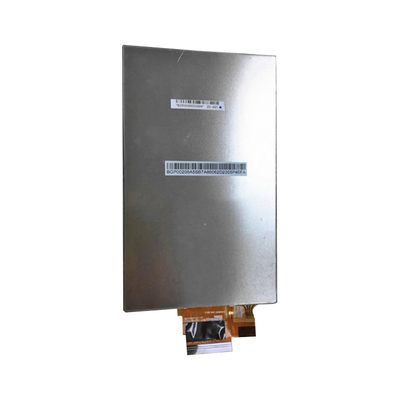

HSD061IDW1-A00-R00 6.1 inch 800*480 HannStar LCD screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD061IDW1-A00-R00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD061IDW1-A00-R00 | Diagonal Size: | 6.1" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 153PPI | Active Area: | 132(W)×79.2(H) Mm |
| Outline Size: | 134.4(W)×81.6(H) Mm | Outline Dim.: | 144.8(H)×87.6(V)×4.8(D) Mm |
| Luminance: | 400 Cd/m² (Typ.) | Touch Panel: | 4-wire Resistive Touch |
| Weight: | 140g (Max.) | Designed For: | Automotive Display |
Product Description
HSD061IDW1-A00-R00 6.1 inch 800*480 HannStar LCD screen
HSD061IDW1-A00-R00 Product details :
| HannStar LCD Screen HSD061IDW1-A00-R00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD061IDW1-A00-R00 |
| Diagonal Size | 6.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 153PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 132(W)×79.2(H) mm |
| Bezel Opening | 134.4(W)×81.6(H) mm |
| Outline Dim. | 144.8(H)×87.6(V)×4.8(D) mm |
| Treatment | Antiglare (Haze 8%), Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 48% NTSC |
| Light Source | WLED [6S2P] , 10K hours , W/O Driver |
| Weight | 140g (Max.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | 4-wire Resistive Touch |
| Interface Type | Parallel RGB (1 ch, 6-bit) + SPI , 50 pins FPC |
| Power Supply | 1.8/3.3/3.3V (Typ.)(VDD1/VDD2/VCI) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -40 ~ 85 °C |
| HSD061IDW1-A00-R00 6.1 inch 800*480 HannStar LCD screen | |
HSD061IDW1-A00-R00 Payment:
-> We accept PayPal and T/T
-> Buyers should make the payment within 7 business days. Unpaid auction winners will be forfeited after 21 business days.
-> VERIFY: Our prices do NOT include any customs duty or tax.
HSD061IDW1-A00-R00 Shipping and Package :
HSD061IDW1-A00-R00 Shipping Terms:
1. We ship all the items to your address, please make sure that your address must be correct or send us a message to inform us if you want to change a address before you pay for it.
2. We ship all our buyers packages with tracking number, and all the items will be sent within 1-2 business days after payment received.
3. We Ship it in one day by DHL 1- 3 Day arrive you!
4. For remote regions, we will charge your extra shipping costs. Usually it cost about 35USD-50USD. We will contact you after your payment. Thanks for your understanding.
HSD061IDW1-A00-R00 Warranty:
1.Guarantee 3 Months.
2.Replece new and good if you got the fake products.But make sure that is not used and not man-made damaged.
3.ship back to us with good package , avoid damaged on the way returned.4.We test 1 by 1 before shipping, 100% working well before shipping
All questions response in China working time,if you have any questions about the products,please feel free to contact us !
HSD061IDW1-A00-R00 FAQ:
Q: Can you give me a discount if I need a large quantity of HSD061IDW1-A00-R00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of HSD061IDW1-A00-R00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for HannStar HSD061IDW1-A00-R00 ?
A: We accept T/T , Paypal , western union .
