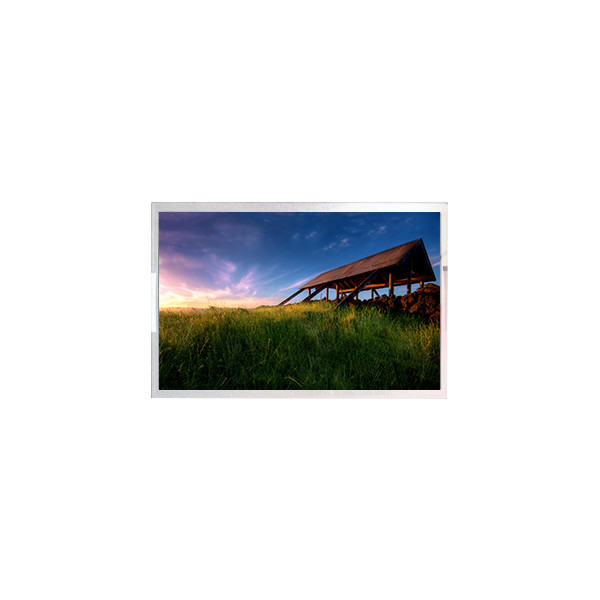

Brand New Arrival Original WF80BTIAGDNNC# 8.0 inch 800*480 LCD Screen Display In Stock
Product Details:
| Place of Origin: | China |
| Brand Name: | Winstar |
| Model Number: | WF80BTIAGDNNC# |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | WF80BTIAGDNNC# | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Active Area: | 176.64(W)×99.36(H) Mm |
| Outline Size: | 192.8×116.9×6.7 (H×V×D) | Treatment: | Antiglare |
| View Direction: | 6 O'clock | Support Color: | 262K/16.7M |
| Frame Rate: | 60Hz | Application: | Industrial |
Product Description
Brand New Arrival Original WF80BTIAGDNNC# 8.0 inch 800*480 LCD Screen Display In Stock
WF80BTIAGDNNC# Product details :
| Brand | Winstar |
| Model P/N | WF80BTIAGDNNC# |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 176.64(W)×99.36(H) mm |
| Bezel Opening | 180.1(W)×103.4(H) mm |
| Outline Dim. | 192.8×116.9×6.7 (H×V×D) |
| Treatment | Antiglare |
| View Direction | 6 o'clock |
| Response Time | - |
| Viewing Angle | - |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.7M |
| Light Source | WLED , No Driver |
| Weight | - |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 6/8-bit) , FPC 50 pins |
| Power Supply | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
WF80BTIAGDNNC# We Promise to:
1:Manufacture only the best consumer goods and ensure the highest quality possible.
2:Deliver goods to our customers all over the world with speed and precision
WF80BTIAGDNNC# Payment:
PLCCenter/Radwell ships worldwide and accepts PayPal and most Credit Cards. All items are priced each. All items are subject to availability and passing our QA testing and inspection. For Customer Service please contact us via the Paypal Message System/Contact Seller.
WF80BTIAGDNNC# Shipping and Package :
WF80BTIAGDNNC# International:
We will ship worldwide. Please remember your item must go through customs which can delay receiving your item in a timely manner.
Custom holds and delays vary from country-to-country and are beyond the control of the Seller. We will not mark your item as a gift or pay any customs fees. These charges are the Buyer’s responsibility. Please check with your country’s customs office to determine what the additional costs will be prior to purchase.
ISRAEL ONLY: Need to Add 17 % VAT to Price.
WF80BTIAGDNNC# FAQ:
Q: Can you tested the WF80BTIAGDNNC# before shipping ?
A: Of course , our lcd panel WF80BTIAGDNNC# was Strictly tested before shipping.
Q: How to order WF80BTIAGDNNC# ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel WF80BTIAGDNNC# received can't work ?
A:WF80BTIAGDNNC# was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
