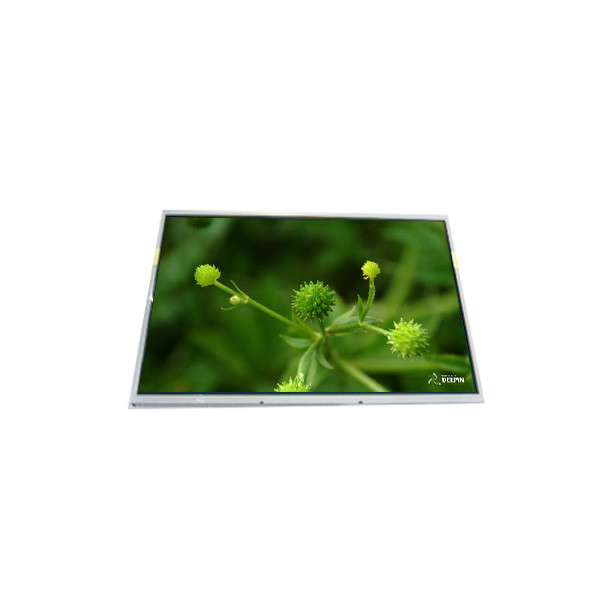

23.0 inch 1920*1080 LM230WF3-SLN1 LCD display Modules
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM230WF3-SLN1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM230WF3-SLN1 | Diagonal Size: | 23.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 95PPI | Active Area: | 509.184(W)×286.416(H) Mm |
| Outline Size: | 533.2(W)×312(H)×11(D) | Brightness: | 250 (Typ.)(cd/m²) |
| Contrast Ratio: | 1000 : 1 (Typ.) (TM) | Response Time: | 14 (Typ.)(G To G) Ms |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Application: | Desktop Monitor |
Product Description
23.0 inch 1920*1080 LM230WF3-SLN1 LCD display Modules
LM230WF3-SLN1 Product details :
| Brand | LG Display |
| Model P/N | LM230WF3-SLN1 |
| Diagonal Size | 23.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 509.184(W)×286.416(H) mm |
| Bezel Opening | 513.8(W)×291.0(H) mm |
| Outline(mm) | 533.2(W)×312(H)×11(D) |
| Luminance | 250 (Typ.)(cd/m²) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 72% NTSC |
| Mass | 1.93Kgs (Typ.) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | IPS, Normally Black, Transmissive |
| Response | 14 (Typ.)(G to G) ms |
| Backlight | 17S2P WLED , 30K hours , No Driver |
| Used for | Desktop Monitor |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit), 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
LM230WF3-SLN1 Return& Refund:
Please read the item description and check the pictures carefully before bidding.
Refund or Return is available if the item arrived broken,not as described or does not do what it's supposed to.
Return items must have all original packaging and in good condition.
LM230WF3-SLN1 Payment terms:
Credit Card, L/C, PayPal, western union, Bank Transfer, T/T, BOLETO, ESCROW, Mastercard, VISA, e-checking etc.
LM230WF3-SLN1 About Shipping:
We will test them strictly before shipping.
We will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
LM230WF3-SLN1 FAQ:
Q: Can you give me a discount if I need a large quantity of LM230WF3-SLN1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of LM230WF3-SLN1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of LM230WF3-SLN1 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
LM230WF3-SLN1 Shipping and Package :
