LCD Screen Display Panel

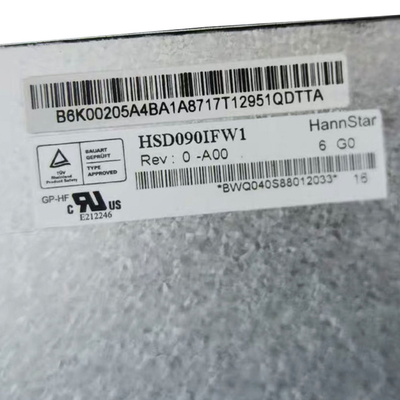

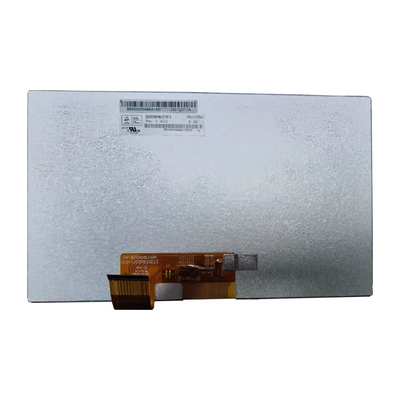

HSD090IFW1-A00 HannStar 9.0 inch 1024*600 TFT ips LCD Screen panel display

All Category

Floor Standing Digital Signage

HSD090IFW1-A00 HannStar 9.0 inch 1024*600 TFT ips LCD Screen panel display

Brand Name:	HannStar
Model Number:	HSD090IFW1-A00
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model Name:

HSD090IFW1-A00

Diagonal Size:

Resolution:

1024(RGB)×600, WSVGA 132PPI

Active Area:

196.608(W)×114.15(H) Mm

Bezel Opening:

200.01(W)×117.55(H) Mm

Outline Dim.:

211.1(H)×126.5(V)×7.1(D) Mm

Treatment:

Antiglare, Hard Coating (3H)

Light Source:

WLED [3S7P] , 30K Hours , W/O Driver

Weight:

240g (Typ.)

Designed For:

Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD090IFW1-A00 HannStar 9.0 inch 1024*600 TFT ips LCD Screen panel display

HSD090IFW1-A00 Product details :

HannStar LCD Screen HSD090IFW1-A00
Panel Brand	HannStar
Model P/N	HSD090IFW1-A00
Diagonal Size	9.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 132PPI
Pixel Format	RGB Vertical Stripe
Active Area	196.608(W)×114.15(H) mm
Bezel Opening	200.01(W)×117.55(H) mm
Outline Dim.	211.1(H)×126.5(V)×7.1(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	500 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	18/17 (Typ.)(Tr/Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	IPS Pro, Normally Black, Transmissive
Support Color	262K/16.2M 70% NTSC
Light Source	WLED [3S7P] , 30K hours , W/O Driver
Weight	240g (Typ.)
Designed For	Automotive Display
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit) , 40 pins FPC
Power Supply	3.3/12.6/23/-10.0V (Typ.)(VDD/AVDD/VGH/VGL)
Environment	Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²)
HSD090IFW1-A00 HannStar 9.0 inch 1024*600 TFT ips LCD Screen panel display

HSD090IFW1-A00 Please note! ! !

We test all products before sending. But we can't control everything, and the screen is easily damaged during transportation. So please test the product before installation. If you find some problems, please do not install and contact us. If you have not tested the installation, we will not provide after-sales service and refund service. We are not responsible for all problems that occur during the installation process.

HSD090IFW1-A00 Shipping and Package :
HSD090IFW1-A00 HannStar 9.0 inch 1024*600 TFT ips LCD Screen panel display 0

HSD090IFW1-A00 Abount Shipping Information:

We will ship out your items within 1-5 business days after the payment is cleared.

Standard shipping using international Airmail,Items ship from China and it takes 7-14 working days (2-3 weeks) to receive for most areas.

If you do not receive item within 30 working days (5 weeks), please contact us to investigate the case.(Brazil. Italy. 5~8 weeks)

HSD090IFW1-A00 Returns:

· We are happy to return any unused item in its original packaging within 30 days of delivery.

· Buyers are responsible for the round (two-way) shipping cost.

HSD090IFW1-A00 FAQ:

Q: Can You declare my order of HSD090IFW1-A00 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How can I trace my order of HSD090IFW1-A00 ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of HSD090IFW1-A00 ?

A: We accept T/T , Paypal , western union .

Q: Can I pay my order of HSD090IFW1-A00 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
