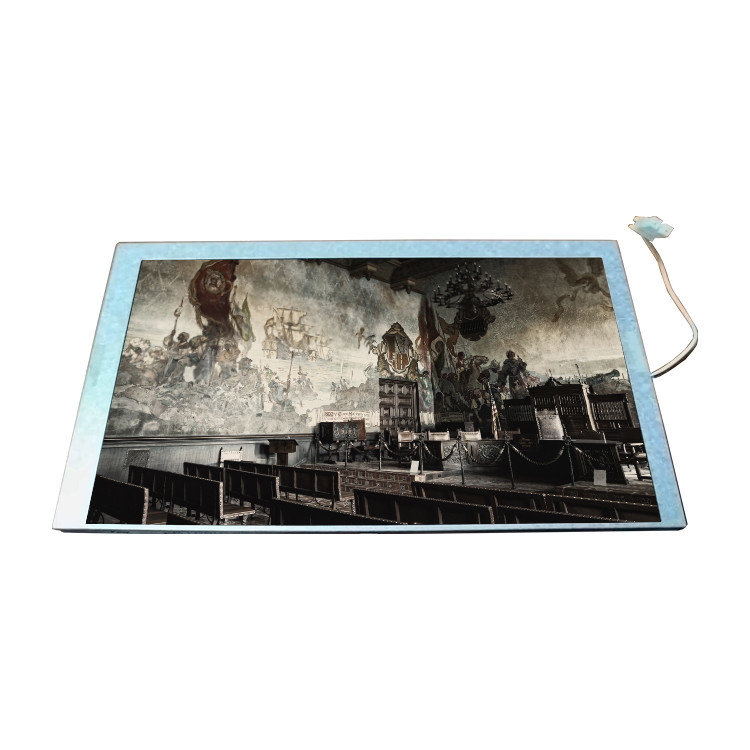

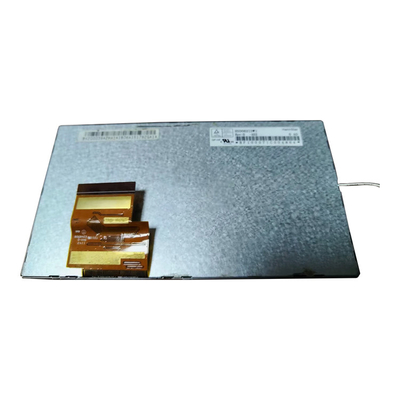

6.2 inch 800*480 Resolution LCD PANEL SCREEN HSD062IDW1-A02-0299
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD062IDW1-A02-0299 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD062IDW1-A02-0299 | Diagonal Size: | 6.2" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 150PPI | Active Area: | 137.52(W)×77.232(H) Mm |
| Outline Size: | 147(W)×86.323(H) ×1.43(D) Mm | Brightness: | 0 Cd/m² |
| Viewing Angle: | 75/75/70/70 (Typ.)(CR≥10) | Display Mode: | TN, Normally White, Transmissive |
| Glass Depth: | 0.50+0.50 Mm | Application: | Automotive Display |
Product Description
6.2 inch 800*480 Resolution LCD PANEL SCREEN HSD062IDW1-A02-0299
HSD062IDW1-A02-0299 Product details :
| HannStar LCD Screen HSD062IDW1-A02-0299 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD062IDW1-A02-0299 |
| Diagonal Size | 6.2" |
| Panel Type | a-Si TFT-LCD, CELL , FOG |
| Resolution | 800(RGB)×480, WVGA 150PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 137.52(W)×77.232(H) mm |
| Outline Size | 147(W)×86.323(H) ×1.43(D) mm |
| Brightness | 0 cd/m² |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 75/75/70/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 4.1% (Typ.)(with Polarizer) |
| Display Colors | 262K/16.2M 48% NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Application | Automotive Display |
| Signal Interface | TTL (1 ch, 6/8-bit) , 60 pins FPC |
| Input Voltage | 3.3/10.0/15.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| 6.2 inch 800*480 Resolution LCD PANEL SCREEN HSD062IDW1-A02-0299 | |
