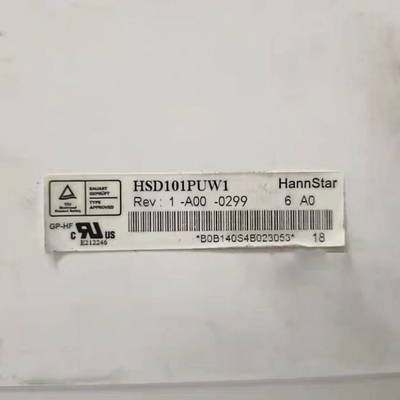

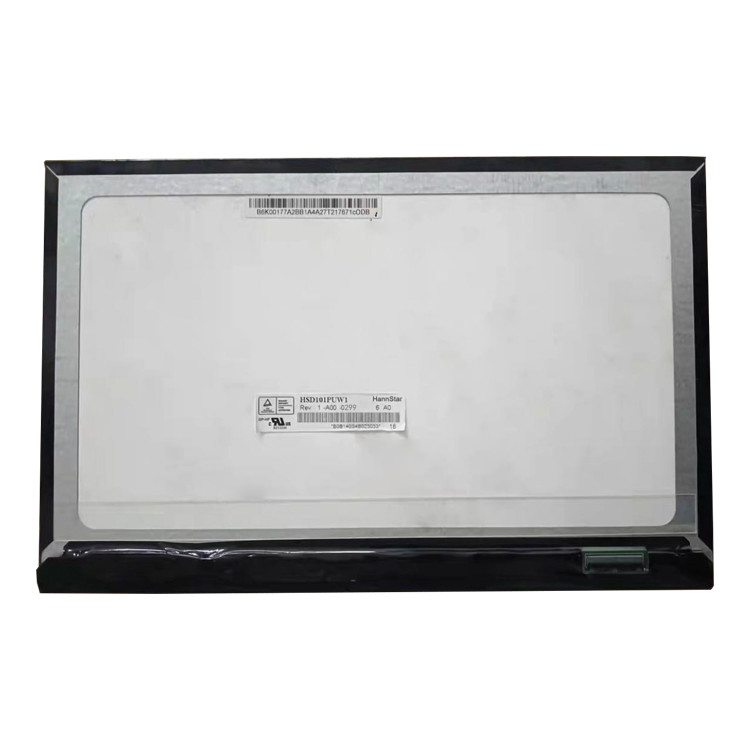

New 10.1 inch 1920*1200 HSD101PUW1-A00-0299 lcd Screen panel for Pad Tablet
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD101PUW1-A00-0299 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD101PUW1-A00-0299 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1200, WUXGA 225PPI | Active Area: | 216.576(W)×135.36(H) Mm |
| Outline Size: | 224.46(H)×144.98(V)×0.77(D) Mm | Treatment: | Hard Coating |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Response Time: | 25 (Typ.)(Tr+Td) |
| Plate Thickness: | 0.25+0.25 Mm | Designed For: | Pad & Tablet |
Product Description
New 10.1 inch 1920*1200 HSD101PUW1-A00-0299 lcd Screen panel for Pad Tablet
HSD101PUW1-A00-0299 Product details :
| HannStar LCD Screen HSD101PUW1-A00-0299 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD101PUW1-A00-0299 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 1920(RGB)×1200, WUXGA 225PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 216.576(W)×135.36(H) mm |
| Outline Dim. | 224.46(H)×144.98(V)×0.77(D) mm |
| Treatment | Hard coating |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Plate Thickness | 0.25+0.25 mm |
| Transmittance | 4.4% (Typ.)(with Polarizer) |
| Support Color | 16.7M 52% NTSC |
| Light Source | No B/L , W/O Driver |
| Weight | TBD |
| Designed For | Pad & Tablet |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | MIPI (4 data lanes) , 34 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| New 10.1 inch 1920*1200 HSD101PUW1-A00-0299 lcd Screen panel for Pad Tablet | |
HSD101PUW1-A00-0299 a letter to the buyer:
Dear buyer, if you can't confirm your machine screen, please take the photo off the sending screen, we can confirm your screen through photos, and we are a professional LCD screen supplier, we have a lot of screens. If you want any screen to give us information, due to the time difference, we will respond to the information as soon as we see the information, thank you for watching, the best wishes are given to you.
HSD101PUW1-A00-0299 Shipping and Package :
HSD101PUW1-A00-0299 Shipping time:
We try our best to ship out same day for payment cleared before 17.00 PM (Beijing Time),otherwise we will ship on next working day.Order placed on weekend or holiday will be shipped on Monday or next working day.when we shipped, you can see the tracking number in your order.
HSD101PUW1-A00-0299 Warning:
*Installation guide not included, We are not responsible for any damage caused by installation of this accessory, please be sure you know how to install it before bid,Thank you for your kind understanding!
*We just can guarantee the one you received that will be compatible with your tablet,
*Please DO NOT buy if you do not accept an A+ grade compatible touch screen digitizer with different flex cable numbers as our title/description/photo states is out of supply in the market, thank you!
HSD101PUW1-A00-0299 FAQ:
Q: Can You declare my order of HSD101PUW1-A00-0299 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of HSD101PUW1-A00-0299 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of HSD101PUW1-A00-0299 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of HSD101PUW1-A00-0299 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
