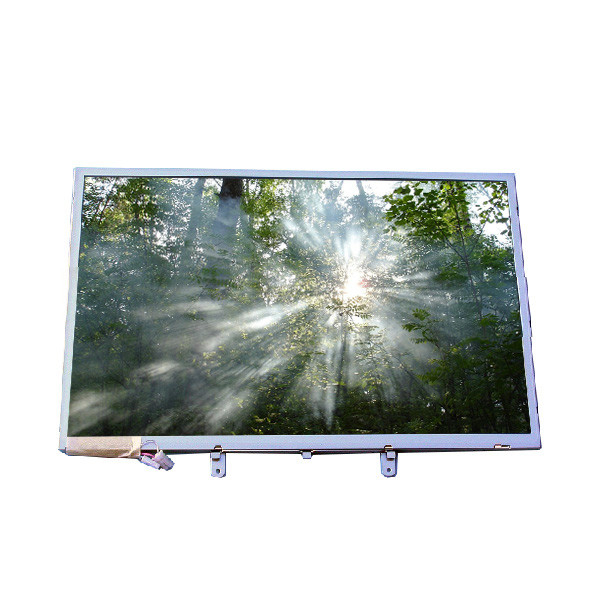

15.6 inch 1366*768 LCD Display Module B156XTK02.0 HW5A

15.6 inch 1366*768 LCD Display Module B156XTK02.0 HW5A

Brand Name: AUO
Model Number: B156XTK02.0 HW5A
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Model Name:
B156XTK02.0 HW5A
Diagonal Size:
15.6"
Resolution:
1366(RGB)×768, WXGA 100PPI
Active Area:
344.232(W)×193.536(H) Mm
Outline Size:
350.66(W)×216.15(H) ×3.2(D) Mm
Brightness:
220 Cd/m² (Typ.)
Viewing Angle:
45/45/15/35 (Typ.)(CR≥10)
Contrast Ratio:
500:1 (Typ.) (TM)
Touch Panel:
8 (Typ.)(Tr+Td)
Application:
Laptop
Supply Ability:
100000 Unit/Units per Month
Product Description

15.6 inch 1366*768 LCD Display Module B156XTK02.0 HW5A



B156XTK02.0 HW5A Product details :

Brand AUO
Model P/N B156XTK02.0 HW5A
Diagonal Size 15.6"
Panel Type a-Si TFT-LCD, LCM
Resolution 1366(RGB)×768, WXGA 100PPI
Pixel Format RGB Vertical Stripe
Active Area 344.232(W)×193.536(H) mm
Bezel Opening -
Outline Dim. 350.66(W)×216.15(H) ×3.2(D) mm
Treatment Glare (Haze 0%)
Luminance 220 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
View Direction 6 o'clock
Response Time 8 (Typ.)(Tr+Td)
Viewing Angle 45/45/15/35 (Typ.)(CR≥10)
Operating Mode TN, Normally White, Transmissive
Support Color 262K 45% NTSC
Light Source WLED , 15K hours , With LED Driver
Shape Style Slim (PCBA Flat, T≤3.2mm)
Designed For Laptop
Frame Rate 60Hz
Touch Panel On-Cell Touch, USB
Interface Type eDP (1 Lane) , eDP1.2 , 40 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
