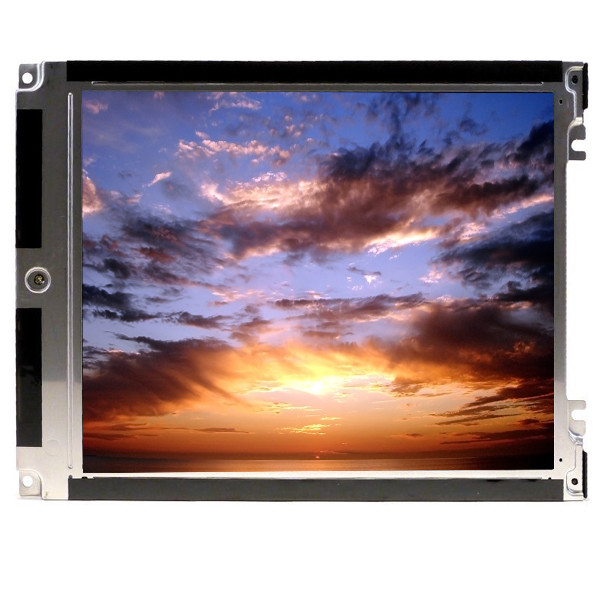

LM8V311 7.7 inch 640*480 lcd display panel for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LM8V311 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM8V311 | Diagonal Size: | 7.7" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 103PPI | Active Area: | 157.42(W)×118.06(H) Mm |
| Outline Size: | 197(W)×142.5(H) Mm | Brightness: | 55 Cd/m² (Typ.) |
| Viewing Angle: | 30/30/15/30 (Typ.)(CR≥5) | Contrast Ratio: | 30:1 (Typ.) (TM) |
| Touch Panel: | 4-wire Resistive Touch, F/G | Application: | Industrial |
Product Description
LM8V311 7.7 inch 640*480 lcd display panel for Industrial
LM8V311 Product details :

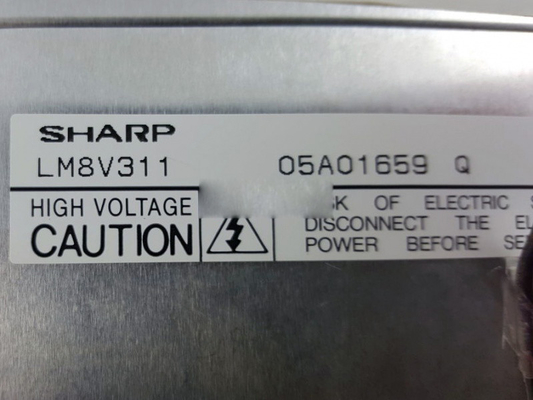

| Sharp LCD SCREEN LM8V311 | |
| manufacturer | Sharp |
| Model Name | LM8V311 |
| Panel Size | 7.7 inch |
| Panel Type | CSTN-LCD, LCM |
| Resolution | 640(RGB)×480, VGA 103PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 157.42(W)×118.06(H) mm |
| Outline Dim. | 197(W)×142.5(H) mm |
| Brightness | 55 cd/m² (Typ.) |
| Contrast Ratio | 30:1 (Typ.) (TM) |
| Viewing Angle | 30/30/15/30 (Typ.)(CR≥5) |
| Response Time | 270/80 (Typ.)(Tr/Td) |
| Display Mode | STN, Normally Black, Transmissive |
| Response Time | 270/80 (Typ.)(Tr/Td) |
| Display Colors | Color |
| Lamp Typec | 1 pcs CCFL , 25K hours , Without Driver |
| Frequency | 75Hz |
| Designed For | Industrial |
| Panel Weight | 310g (Typ.) |
| Touch Panel | 4-wire Resistive Touch, F/G |
| Interface Type | Parallel Data (1ch, 8-bit) , 29 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 40 °C ; Storage Temp.: -25 ~ 60 °C |
| LM8V311 7.7 inch 640*480 lcd display panel for Industrial | |
LM8V311 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
LM8V311 About Shipping:
We will test them strictly before shipping.
We will ship it in 3 working day after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me inadvance in time.as to the shipping time,it usually will be 7-30 days,which will be differentfor different countries.
LM8V311 Guarantee:
1. We will test these items to ensure they work properly, with a 6-month warranty
2. We are a professional supplier and have been working for nearly 10 years.
3. If you have any questions or assistance, please contact us and we will answer you within 24 hours.
LM8V311 FAQ:
Q: How long will I receive my goods LM8V311 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of LM8V311 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of LM8V3113 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
