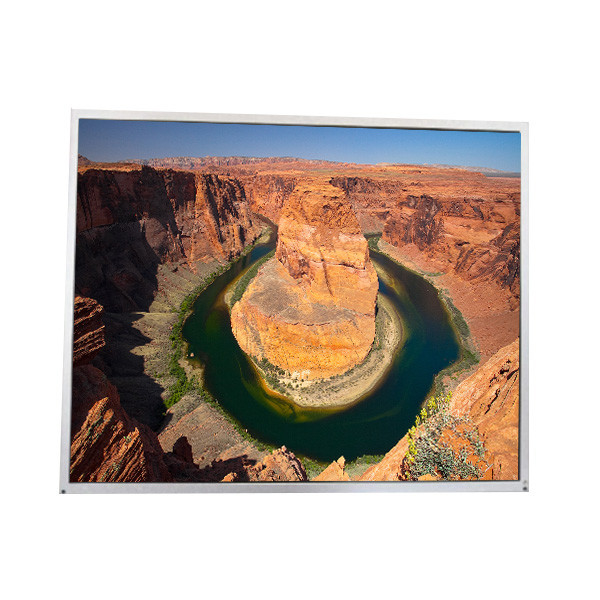

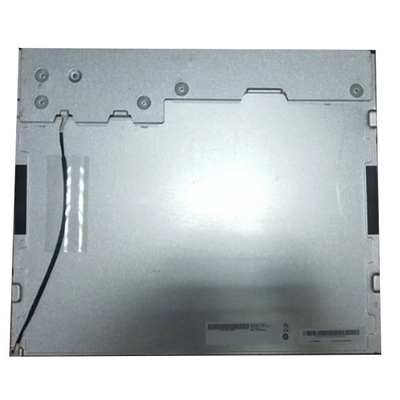

G190ETN01.8 19 inch 1280*1024 TFT 30 pins LCD display module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G190ETN01.8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G190ETN01.8 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024SXGA 86PPI | Active Area: | 376.32(H)×301.056(V) Mm |
| Outline Size: | 396(W)×324(H) | Response Time: | 7/3 (Typ.)(Tr/Td) Ms |
| Brightness: | 800 Cd/m² (Typ.) | Contrast Ratio: | 1000 : 1 (Typ.) [Transmission] |
| Display Colors: | 16.7M , 70% NTSC | Application: | Industrial Outdoor High Brightness |
Product Description
G190ETN01.8 19 inch 1280*1024 TFT 30 pins LCD display module
G190ETN01.8 Product details :
| AUO LCD SCREEN G190ETN01.8 | |
| Panel Brand | AUO |
| Panel Model | G190ETN01.8 |
| Panel Size | 19.0 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×1024SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 376.32(H)×301.056(V) mm |
| Bezel Opening | 379.72(W)×304.46(H) mm |
| Outline Size | 396(W)×324(H) |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 800 (Typ.)(cd/m²) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 7/3 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M , 70% NTSC |
| Lamp Type | WLED , 50K hours , No Driver |
| Frequency | 60Hz |
| Panel Weight | 1.80Kgs (Typ.) |
| Used for | Industrial Outdoor High Brightness |
| Touchscreen | Without |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Storage Temp.: -30 ~ 70 °C Operating Temp.: -30 ~ 70 °C |
| G190ETN01.8 19 inch 1280*1024 TFT 30 pins LCD display module | |
G190ETN01.8 Attentions :
All the items are easy to be fragile ,please test it before installation.
can't be accept the return screen which attmept has been made .
G190ETN01.8 Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
G190ETN01.8 Warranty :
1, We take 12 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .
G190ETN01.8 Abount Shipping Information:
We will ship out your items within 1-5 business days after the payment is cleared.
Standard shipping using international Airmail,Items ship from China and it takes 7-14 working days (2-3 weeks) to receive for most areas.
If you do not receive item within 30 working days (5 weeks), please contact us to investigate the case.(Brazil. Italy. 5~8 weeks)
G190ETN01.8 Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance
Customs in the destination Customs , It depends the laws in the destination country .
G190ETN01.8 FAQ:
Q: How long is the warranty of G190ETN01.8 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of G190ETN01.8 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I order G190ETN01.8 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for G190ETN01.8 ?
A: Of course!sample order is welcome !
