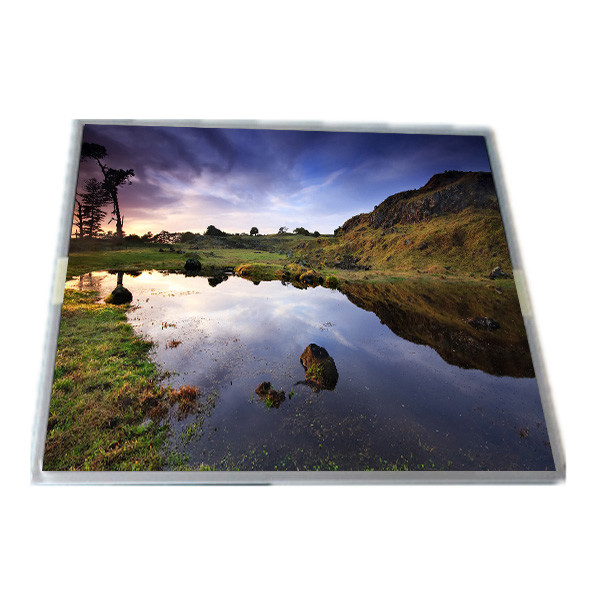

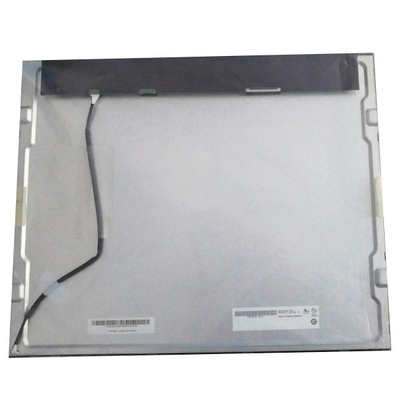

Industrial 19 inch 1280x1024 TFT LCD Screen IPS Panel For G190EG02 V104
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G190EG02 V104 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G190EG02 V104 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024SXGA 86PPI | Active Area: | 376.32(H)×301.056(V) Mm |
| Outline Size: | 396(H)×324(V)×15.8(D) Mm | Response Time: | 15/5 (Typ.)(Tr/Td) Ms |
| Brightness: | 350 Cd/m² (Typ.) | Contrast Ratio: | 2000 : 1 (Typ.) [Transmission] |
| Display Colors: | 16.7M , 70% NTSC | Application: | Industrial Medical Imaging |
Product Description
Industrial 19 inch 1280x1024 TFT LCD Screen IPS Panel For G190EG02 V104
G190EG02 V104 Product details :
| AUO LCD SCREEN G190EG02 V104 | |
| Panel Brand | AUO |
| Panel Model | G190EG02 V104 |
| Panel Size | 19.0 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×1024SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 376.32(H)×301.056(V) mm |
| Bezel Opening | 380.32(H)×305.06(V) mm |
| Outline Size | 396(H)×324(V)×15.8(D) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 2000:1 (Typ.) (Transmission) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| Display Mode | MVA, Normally Black, Transmissive |
| Response Time | 15/5 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M , 70% NTSC |
| Lamp Type | WLED , 50K hours, with LED driver |
| Frequency | 60Hz |
| Panel Weight | 1.74Kgs (Typ.) |
| Used for | Industrial Medical Imaging |
| Touchscreen | Without |
| Signal Interface | 30 pins LVDS (2 ch, 8-bit) , terminal |
| Input Voltage | 5.0V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 60 °C |
| Industrial 19 inch 1280x1024 TFT LCD Screen IPS Panel For G190EG02 V104 | |
G190EG02 V104 Attentions :
All the items are easy to be fragile ,please test it before installation.
can't be accept the return screen which attmept has been made .
G190EG02 V104 Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
G190EG02 V104 Warranty :
1, We take 12 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .
G190EG02 V104 FAQ:
Q: Do you accept sample orders of G190EG02 V104 ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of G190EG02 V104 vai credit card ?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of G190EG02 V104 ?
A: The order will be shipped within 2-3 working days after received your payment.
G190EG02 V104 Shipping and Package :
