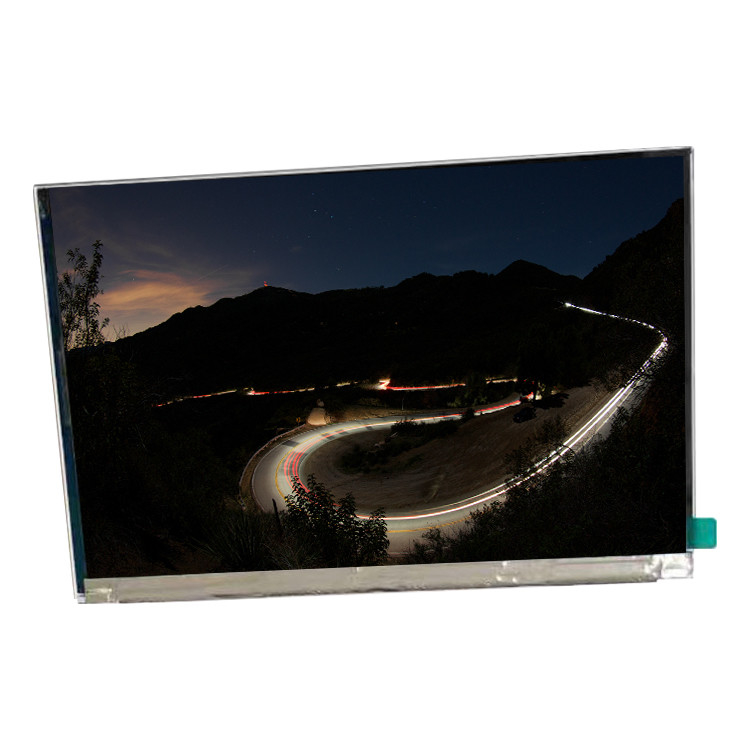

Original new 7.0 inch LCD Screen HSD070PWW1-C00 LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD070PWW1-C00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD070PWW1-C00 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 215PPI | Active Area: | 150.72(W)×94.2(H) Mm |
| Outline Size: | 161.6(H)×105.8(V)×4.85(D) Mm | Treatment: | Hard Coating |
| Luminance: | 690 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Panel Weight: | 91.0g (Max.) | Designed For: | Pad & Tablet / Outdoor High Brightness / MID UMPC |
Product Description
Original new 7.0 inch LCD Screen HSD070PWW1-C00 LCD Display Panel
HSD070PWW1-C00 Product details :
| HannStar LCD Screen HSD070PWW1-C00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD070PWW1-C00 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 215PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 150.72(W)×94.2(H) mm |
| Outline Dim. | 161.6(H)×105.8(V)×4.85(D) mm |
| Treatment | Hard coating |
| Luminance | 690 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Support Color | 262K 50% NTSC |
| Light Source | WLED , 10K hours , With LED Driver |
| Weight | 91.0g (Max.) |
| Designed For | Pad & Tablet / Outdoor High Brightness / MID UMPC |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Original new 7.0 inch LCD Screen HSD070PWW1-C00 LCD Display Panel | |
HSD070PWW1-C00 Purchase instructions:
Ⅰ All products are guaranteed to be genuine
Ⅱ All products are tested and delivered
Ⅲ Different models of the same link can be used in general
Ⅳ If you need help, please leave a message to the owner
HSD070PWW1-C00 Shipping and Package :
HSD070PWW1-C00 Shipping Terms:
1. We ship all the items to your Paypal address, please make sure that your Paypal address must be correct or send us a message to inform us if you want to change a address before you pay for it.
2. We ship all our buyers packages with tracking number, and all the items will be sent within 1-2 business days after payment received.
3. We Ship it in one day by DHL 1- 3 Day arrive you!
4. For remote regions, we will charge your extra shipping costs. Usually it cost about 35USD-50USD. We will contact you after your payment. Thanks for your understanding.
HSD070PWW1-C00 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase
HSD070PWW1-C00 FAQ:
Q: Can You declare my order of HSD070PWW1-C00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods HSD070PWW1-C00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of HSD070PWW1-C00 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of HSD070PWW1-C00 ?
A: Of course!If you make a large order, we will give you a discount.
