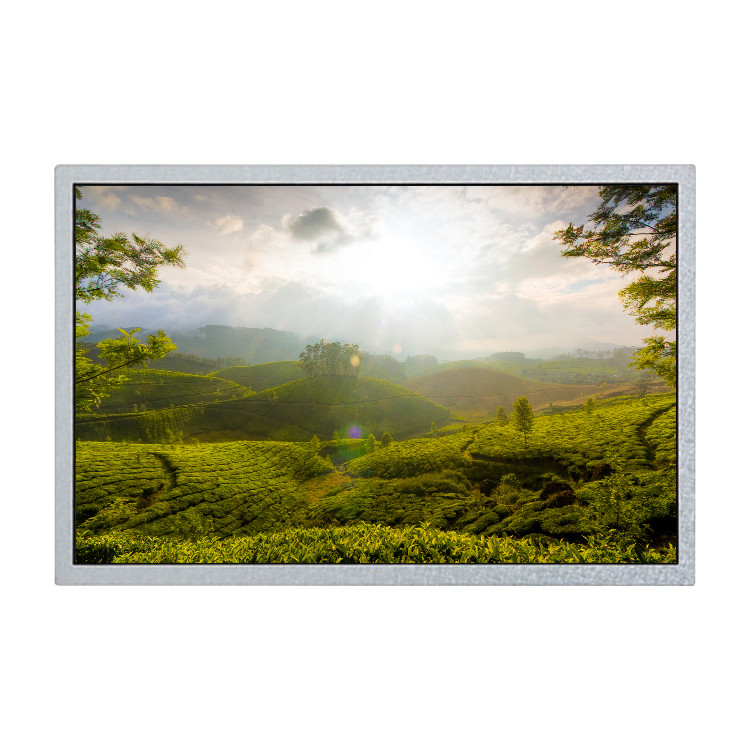

10.1 Inch 1280*800 IPS Medical LCD Panel Without Touch Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | EV101WXM-N82 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | EV101WXM-N82 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 149PPI | Display Size: | 216.96(W)×135.6(H) Mm |
| Outline Size: | 228.6(W)×149.2(H) ×6(D) Mm | Brightness: | 500 Cd/m² (Typ.) |
| Contrast Ratio: | 900:1 (Typ.) (TM) | Display Mode: | ADS, Normally Black, Transmissive |
| Panel Weight: | TBD | Application: | Medical Imaging |
| High Light: | IPS Medical LCD Panel,EV101WXM-N82 Medical LCD Panel,EV101WXM-N82 IPS LCD Panel |
||
Product Description
10.1 Inch 1280*800 IPS Medical LCD Panel Without Touch Screen
EV101WXM-N82 10.1 inch 1280*800 IPS LCD PANEL for Medical Imaging
EV101WXM-N82 Product details :
| BOE LCD Screen EV101WXM-N82 | |
|---|---|
| Brand | BOE |
| Model P/N | EV101WXM-N82 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 149PPI |
| Pixel Format | Pixel Format |
| Active Area | 216.96(W)×135.6(H) mm |
| Outline Size | 228.6(W)×149.2(H) ×6(D) mm |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 16.2M 50% NTSC |
| Lamp Type | WLED , 30K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | TBD |
| Application | Medical Imaging |
| Signal Interface | LVDS (1 ch, 8-bit) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| EV101WXM-N82 10.1 inch 1280*800 IPS LCD PANEL for Medical Imaging | |
EV101WXM-N82 Helpful Information:
To make sure you purchase a correct screen, please be sure to match size, resolution, and backlight of product. If you are uncertain, please contact us with your lcd brand/serial/model, or model number on back of the screen. Our technicians will help you to choose the correct screen
EV101WXM-N82 Payment:
1).Alipay/Credit card/bank transfer /western union /moneybooker/money programs etc online support.
2). Payment must be made within 3 days of order.
3).If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 3 days.
4).if meet questions on payment ,contact us anytime.
EV101WXM-N82 Shipping and Package :
EV101WXM-N82 Warranty:
Buyer Must Verify Part Number Being Advertised Is The Correct Part Needed.
Physically Damaged Items Such As Bent CPU Pins Or Burnt Motherboards Are Not Eligible For Replacement Or Refund.
It’s Necessary For The End User To Check With The Manufacturer, Manual Or Other Web Sources To Insure Compatibility. If You Find Any Inconsistencies Please Email Us So We Update Our Database.
We Want You To Be Perfectly Satisfied With Your Purchase And We Will Do All That We Can To Ensure That This Happens. We Are Humans And Will Try Our Very Best To Describe Our Products As Accurately As Possible.
Do Not Remove Any Stickers From Merchandise Received. Warranty Will Be Voided If Identified Stickers On Product Are Removed.
Our Descriptions Are Correct To The Best Of Our Knowledge, But With So Many Models And Parts It’s Difficult To Know Every Compatible And Incompatible Model.
We Are Dedicated To Provide You With The Best Service Available, Before, During And After The Sale.
EV101WXM-N82 FAQ:
Q: Can you give me a discount if I need a large quantity of EV101WXM-N82 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders for EV101WXM-N82 ?
A: Of course!sample order is welcome !
Q: How long is the warranty of EV101WXM-N82 ?
A: 90days warranty .
Q: How to make payment for EV101WXM-N82 ?
A: We accept T/T , Paypal , western union .
