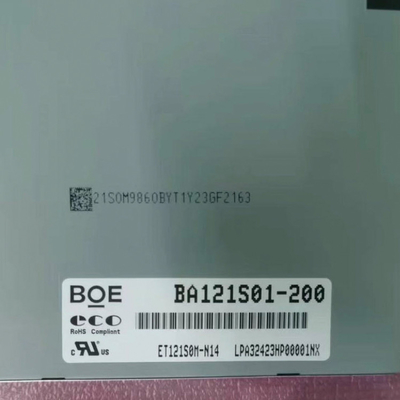

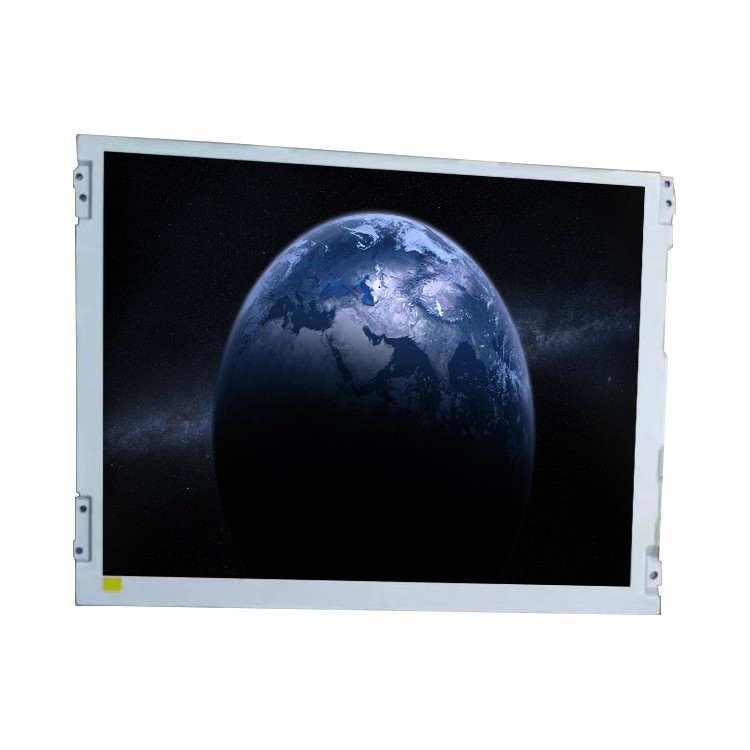

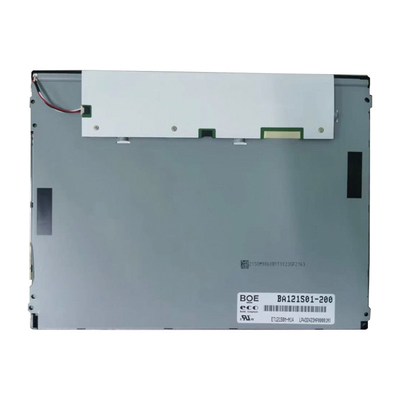

Original BOE 12.1 Inch Medical LCD Panel 800 * 600 Resolution
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | ET121S0M-N14 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | ET121S0M-N14 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 82PPI | Display Size: | 246(W)×184.5(H) Mm |
| Bezel Opening: | 249.05(W)×188.30(H) Mm | Outline Dim.: | 279(H)×209(V) ×9.6(D) Mm |
| Brightness: | 400 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Weight: | 630g (Max.) | Designed For: | Industrial / Medical Imaging |
| High Light: | Original BOE Medical LCD Panel,12.1 Inch Medical LCD Panel,ET121S0M-N14 TFT Screen Panel |
||
Product Description
Original BOE 12.1 Inch Medical LCD Panel 800 * 600 Resolution
Original BOE 12.1-inch LCD screen ET121S0M-N14 800*600 Resolution LCD Panel
ET121S0M-N14 Product details :
| BOE LCD Screen ET121S0M-N14 | |
|---|---|
| Brand | BOE |
| Model P/N | ET121S0M-N14 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 82PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 246(W)×184.5(H) mm |
| Bezel Opening | 249.05(W)×188.30(H) mm |
| Outline Dim. | 279(H)×209(V) ×9.6(D) mm |
| Treatment | Antiglare (Haze 25%) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | 12 o'clock |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.7M 55% NTSC |
| Light Source | WLED , 30K hours , With LED Driver |
| Weight | 630g (Max.) |
| Designed For | Industrial / Medical Imaging |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Original BOE 12.1-inch LCD screen ET121S0M-N14 800 * 600 Resolution LCD Panel | |
