SVGA 82PPI ET121S0M-N10 TFT BOE LCD Module For Medical Imaging
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | ET121S0M-N10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | ET121S0M-N10 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 82PPI | Display Size: | 246(W)×184.5(H) Mm |
| Bezel Opening: | 249.05(W)×188.3(H) Mm | Outline(mm): | 279(W)×209(H)×9.3(D) |
| Brightness: | 450 (Typ.)(cd/m²) | Contrast Ratio: | 800 : 1 (Typ.) (TM) |
| Mass: | 500g (Max.) | Used For: | Industrial / Medical Imaging |
| High Light: | Medical Imaging BOE LCD Module,TFT BOE LCD Module,ET121S0M-N10 TFT LCD Display |
||
Product Description

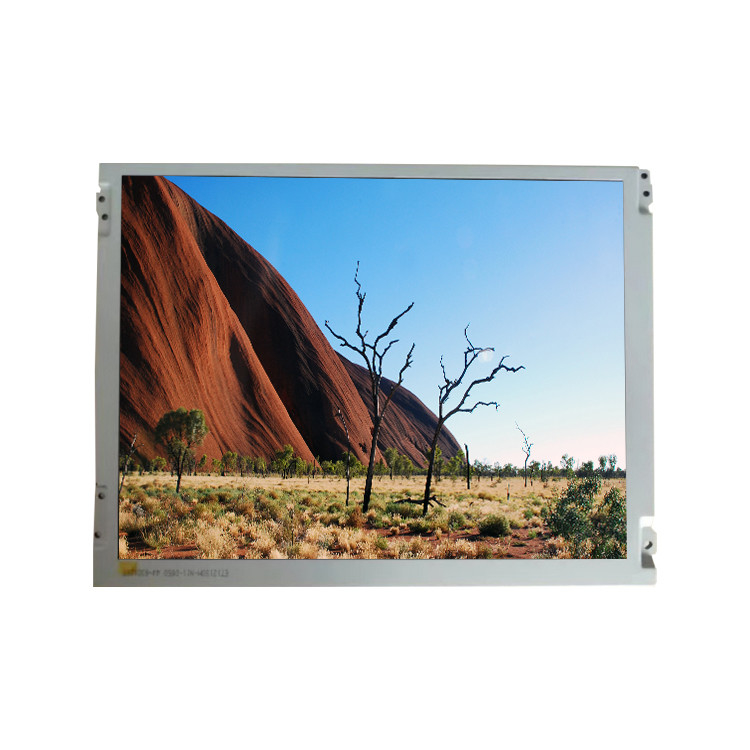

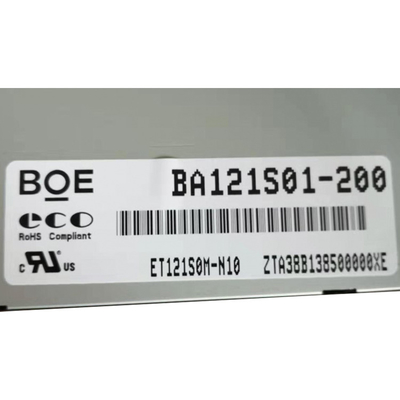

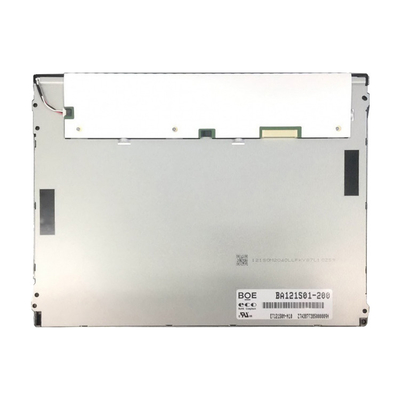

12.1 Inch ET121S0M-N10 TFT BOE LCD Module For Medical Imaging
BOE 12.1 inch ET121S0M-N10 lcd module for medical imaging
ET121S0M-N10 Product details :
| BOE LCD Screen ET121S0M-N10 | |
|---|---|
| Brand | BOE |
| Model P/N | ET121S0M-N10 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 82PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 246(W)×184.5(H) mm |
| Bezel Opening | 249.05(W)×188.3(H) mm |
| Outline(mm) | 279(W)×209(H)×9.3(D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 450 (Typ.)(cd/m²) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) |
| Work Mode | TN, Normally White, Transmissive |
| Good View at | 12 o'clock |
| Response | 30 (Typ.)(Tr+Td) ms |
| Color Depth | 262K/16.7M 58% NTSC |
| Backlight | 9S2P WLED , 50K hours , With LED Driver |
| Mass | 500g (Max.) |
| Used for | Industrial / Medical Imaging |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| BOE 12.1 inch ET121S0M-N10 lcd module for medical imaging | |
ET121S0M-N10 Regarding payment:
1,we accept Alipay,Paypal,Western Union,TT here.
2,Accept all major credit through the secure payment program ESCROW.
3,Please make sure you have read the complete instructions and agree Transaction before purchase.
ET121S0M-N10 Shipping and Package :
ET121S0M-N10 Shipment:
· We can ship to worldwide.
· Usually we send it out as a gift or low-value commodities.
· All orders will be shipped via airmail from Hong Kong or China post or Singapore post or EUB.We will choose the best shipping way. Usually the delivery time is about 10-20 business days to USA, UK, Australia. (it will take 10-30 business days to Other countries.)
· Items are generally shipped to your Paypal shipping address within 24 hours after payment has been verified. (Sat. & Sun. and most national holidays excluded.). if you want to change your shipping address, please email us in time. We are not responsible for wrong or undeliverable address.
· Our price (freight) do not include any tariffs or other taxes; if you have any questions please contact local Customs before you buy the goods.
· Shipping via EMS DHL UPS are available, please contact us if you want other shipping service.
ET121S0M-N10 After service:
We can accept a 5-days return without reasons, and promise a warranty of 90 days for this item, and the shipping cost of returning should be afforded by the buyer.
Such as man-made factors, natural disasters caused damage will not in our warranty. For example: the installed improper, Nick, the tube touch bad, feed, etc... Store the selling of commodities have posted the warranty fragile tags, such as warranty tags in guarantee period be torn up. Disconnect or loss shall be deemed to be giving up the warranty, and we shall not accept any responsibility. Please attention!
ET121S0M-N10 FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of ET121S0M-N10 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of ET121S0M-N10 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of ET121S0M-N10 ?
A: Of course!sample order is welcome !
