10.4 Inch 800*600 SVGA 96PPI Resolution Medical LCD Panel ET104S0M-N16
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | ET104S0M-N16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | ET104S0M-N16 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 96PPI | Display Size: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.0(W)×162.0(H) Mm | Outline Size: | 236(W)×176.9(H) ×5.9(D) Mm |
| Brightness: | 350 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Panel Weight: | 300g (Max.) | Application: | Industrial / Medical Imaging |
| High Light: | SVGA 96PPI Medical LCD Panel,ET104S0M-N16 Medical LCD Panel,SVGA 96PPI Medical LCD Screen |
||
Product Description

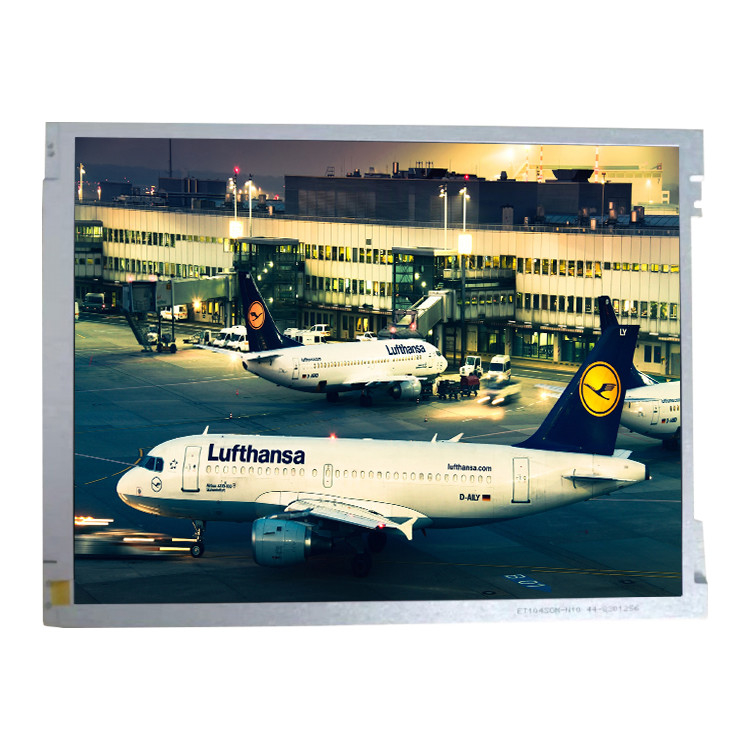

10.4 Inch 800*600 SVGA 96PPI Resolution Medical LCD Panel ET104S0M-N16
new and original 10.4 inch 800*600 Resolution LCD Screen ET104S0M-N16 for Medical Imaging
ET104S0M-N16 Product details :
| BOE LCD Screen ET104S0M-N16 | |
|---|---|
| Brand | BOE |
| Model P/N | ET104S0M-N16 |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 215.0(W)×162.0(H) mm |
| Outline Size | 236(W)×176.9(H) ×5.9(D) mm |
| Surface | Antiglare (Haze 25%) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 262K/16.7M 55% NTSC |
| Lamp Type | 6S4P WLED , 30K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 300g (Max.) |
| Application | Industrial / Medical Imaging |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| new and original 10.4 inch 800*600 Resolution LCD Screen ET104S0M-N16 for Medical Imaging | |
ET104S0M-N16 lmportant Tips:
1,Please confirm your address carefully after placing order.We will prepare anddeliver the goods to you as soon as receive the payment.
2,The items are shipped from china by air mail;they can reach most countrieswithin 15-30 working days.
3,lf you do not receive the product within 45 days,please contact us.Please give us3 working days to check the undelivered package and the reason. lf it's ourproblem,we will refund you.
ET104S0M-N16 Payment:
ESCROW, TT, Western Union or Paypal is available for you
ET104S0M-N16 Shipping and Package :
ET104S0M-N16 SHIPPING:
1.Ship by Courier Express(4-7 Working days), we can suggest you good and cheaper shipping agent if needeal
2.Express Company like DHL, FEDEX,TNT, UPs etc.(3-5 working days)
3.China Post Air Mail.(About 15-35days according to your location)
4.Sea shipment about 20-30days.
ET104S0M-N16 FAQ:
Q: How can I trace my order of ET104S0M-N16 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods ET104S0M-N16 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of ET104S0M-N16 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of ET104S0M-N16 ?
A: Of course!If you make a large order, we will give you a discount.
