PCAP 1280*1024 G170ETT01.0 LCD Screen Display Panel 30 Pins Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G170ETT01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G170ETT01.0 | Diagonal Size: | 17.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024[SXGA] 96PPI | Display Size: | 337.92 × 270.336 (H×V) Mm |
| Outline Dim.: | 379.32 × 316.74 × 14.05 (H×V×D) Mm | Brightness: | 250 Cd/m² (Typ.) |
| Support Color: | 16.7M , 72% NTSC | Response Time: | 5 (Typ.)(Tr+Td) Ms |
| Viewing Angle: | 85/85/80/80 (Typ.) (CR≥10) | Designed For: | Industrial |
| High Light: | PCAP LCD Screen Display Panel,G170ETT01.0 LCD Screen Display Panel,30 Pins Connector LCD Display Panel |
||
Product Description

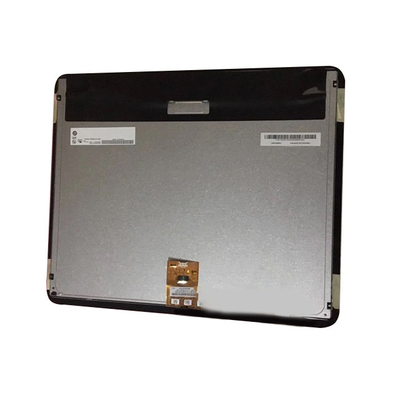

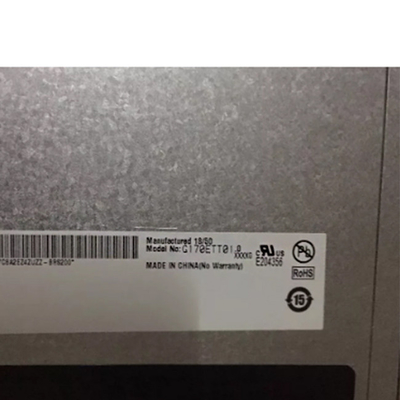

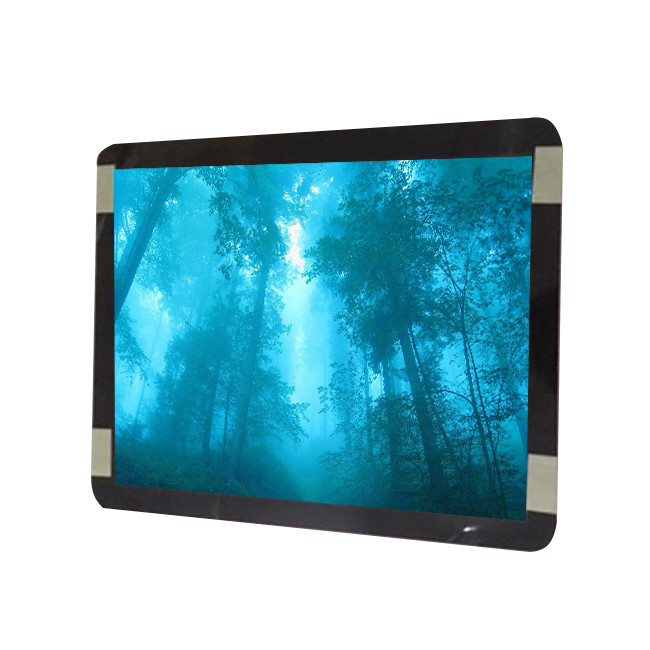

PCAP 1280*1024 G170ETT01.0 LCD Screen Display Panel 30 Pins Connector
PCAP 17 inch 1280*1024 lcd display panel G170ETT01.0 lcd module 30 pins Connector
G170ETT01.0 Product details :
| AUO LCD SCREEN G170ETT01.0 | |
| Panel Brand | AUO |
| Panel Model | G170ETT01.0 |
| Panel Size | 17.0 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×1024[SXGA] 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 337.92 × 270.336 (H×V) mm |
| Outline Size | 379.32 × 316.74 × 14.05 (H×V×D) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) [Transmission] |
| Viewing Angle | 85/85/80/80 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 5 (Typ.)(Tr+Td) ms |
| Display Colors | 16.7M , 72% NTSC |
| Lamp Type | 4 strings WLED , 30K hours, without driver |
| Frequency | 60Hz |
| Panel Weight | 1.27Kgs (Typ.) |
| Designed For | Industrial |
| Touch Panel | PCAP, Air Bonding, USB |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins , terminal |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| PCAP 17 inch 1280*1024 lcd display panel G170ETT01.0 lcd module 30 pins Connector | |
G170ETT01.0 Friendly Reminder :
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
G170ETT01.0 Friendly Reminder :
Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.
Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.
G170ETT01.0 About Shipping:
We will test them strictly before shipping.
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
G170ETT01.0 Shipping:
All items will be shipped within 48 business hours upon receipt of payment (Except Saturdays and Sundays and holidays).
7-15 working days to USA,Ship by USPS with track number.
14-22 business days to UK Australia,Canada.
18-25 business days to Greece,Spain,Poland,Norway.
18-25 business days to Germany,Filand.Sweden,Malta.
20-25 business days to France, Czech. most of Europe.
30-40 business days to other countries(Brazil and Russia).
This is the normally around ship time.if your country strict customs and will cause delay.
We are not responsible for any custom delay or tax. Import taxes are not included in the item price or shipping fee.
G170ETT01.0 Tariffs and fees:
We do not charge a fee for all customer orders, or even a part of.
When the parts arrive your local customs, if part tariffs, we will not be responsible for any customs duties or import taxes
Standard shipping items using international aviation, ship from Hong Kong needs 7-14
Working days (2-3 weeks) received most of the region.
If you do not have the date of receipt of the items from the 30 working days (5 weeks) survey, please contact us. (Russia United Kingdom. 5 to 9 weeks)
Our Working Time: Monday-Friday, Except legal holidays.
G170ETT01.0 Return :
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
Shipping fees are non-refundable.
G170ETT01.0 FAQ:
Q: How to order AUO G170ETT01.0 ?
A: We accept the T/T , Western union , paypal .
Q: How long the warranty of G170ETT01.0 ?
A: 90 days .
Q: Can you declared low value for my order G170ETT01.0 when shipping?
A: Yes, Pls leave the value you want .
Q: What happen if the lcd panel G170ETT01.0 I received can't work ?
A: Our G170ETT01.0 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
G170ETT01.0 Shipping and Package :
