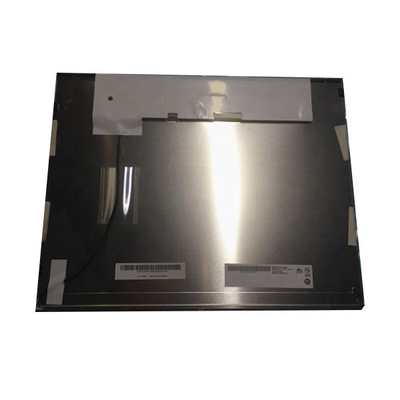

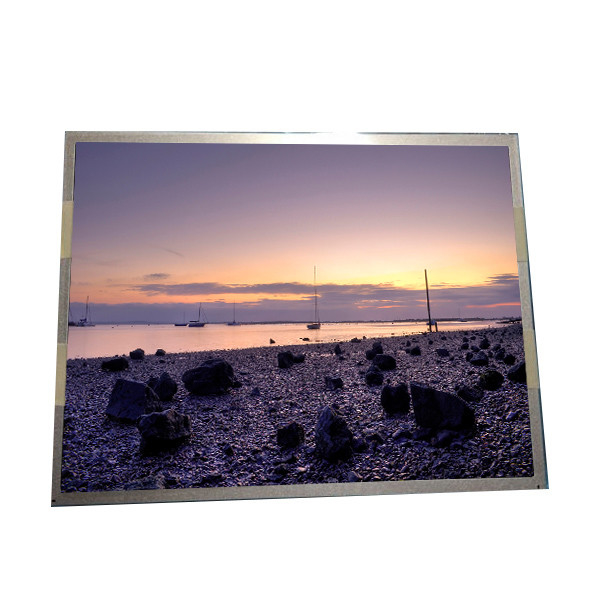

15.0 Inch 1024*768 Industrial TFT Display LCD Display Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G150XTN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G150XTN01.0 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA, 85PPI | Display Size: | 304.128(W)×228.096(H) Mm |
| Outline Dim.: | G150XTN01.0 | Brightness: | 350 Cd/m² (Typ.) |
| Support Color: | 16.2M , 60% NTSC | Response Time: | 5.7/2.3 (Typ.)(Tr/Td) Ms |
| Viewing Angle: | 80/80/60/80 (Typ.)(CR≥10) | Designed For: | Industrial |
| High Light: | 15.0 Inch Industrial TFT Display,G150XTN01.0 LCD Display Screen Panel,G150XTN01.0 Industrial TFT Display |
||
Product Description
15.0 Inch 1024*768 Industrial TFT Display LCD Display Screen Panel
G150XTN01.0 15.0 inch 1024*768 Industrial LCD Display Screen
G150XTN01.0 Product details :
| AUO LCD SCREEN G150XTN01.0 | |
| Panel Brand | AUO |
| Panel Model | G150XTN01.0 |
| Panel Size | 15.0 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 310.18(W)×234.40(H) mm |
| Outline Size | 326.5 × 253.5 × 13.1 (H×V×D) |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 5.7/2.3 (Typ.)(Tr/Td) ms |
| Display Colors | 16.2M , 60% NTSC |
| Lamp Type | WLED , 50K hours, with LED driver |
| Used for | Industrial |
| Panel Weight | 1.00Kgs (Max.) |
| Signal Interface | 20 pins LVDS (1 ch, 8-bit) , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: -30 ~ 85 °C ; Storage temperature: -30 ~ 85 °C |
| G150XTN01.0 15.0 inch 1024*768 Industrial LCD Display Screen | |
G150XTN01.0 Helpful Information:
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
Please confirm it with us before buying if you need 100% new products only.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
G150XTN01.0 Friendly Reminder :
Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.
Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.
G150XTN01.0 About Shipping:
We will test them strictly before shipping.
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
G150XTN01.0 Shipping:
All items will be shipped within 48 business hours upon receipt of payment (Except Saturdays and Sundays and holidays).
7-15 working days to USA,Ship by USPS with track number.
14-22 business days to UK Australia,Canada.
18-25 business days to Greece,Spain,Poland,Norway.
18-25 business days to Germany,Filand.Sweden,Malta.
20-25 business days to France, Czech. most of Europe.
30-40 business days to other countries(Brazil and Russia).
This is the normally around ship time.if your country strict customs and will cause delay.
We are not responsible for any custom delay or tax. Import taxes are not included in the item price or shipping fee.
G150XTN01.0 Return and feedback:
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
G150XTN01.0 FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of G150XTN01.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of G150XTN01.0 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods G150XTN01.0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
G150XTN01.0 Shipping and Package :
