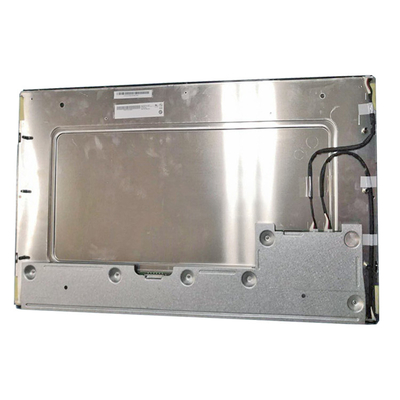

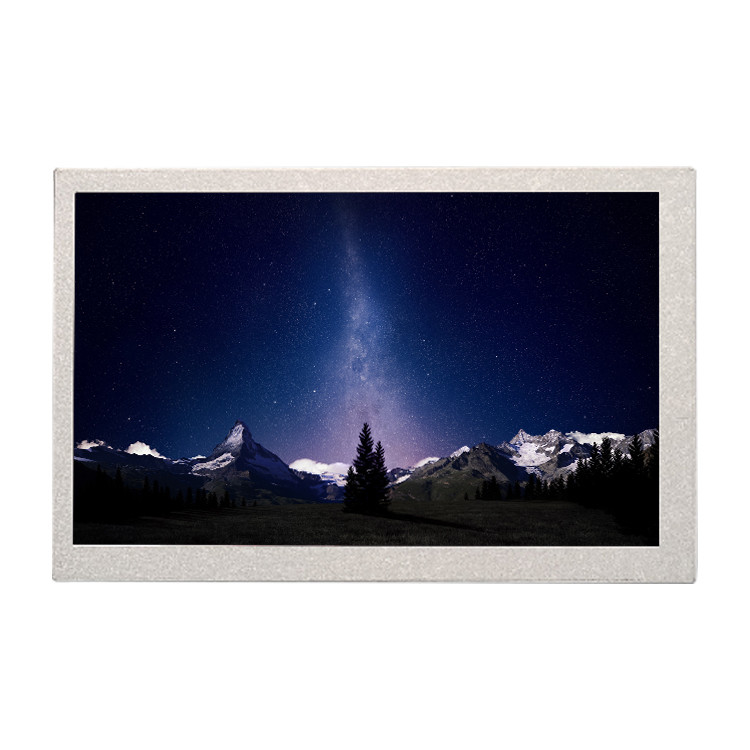

Industrial G320ZAN02.4 TFT Medical LCD Panel For Medical Imaging
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G320ZAN02.4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G320ZAN02.4 | Diagonal Size: | 32.0" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160, UHD 137PPI | Active Area: | 708.48(W)×398.52(H) Mm |
| Bezel Opening: | 714.48(W)×404.52(H) Mm | Outline(mm): | 727.3 × 424.5 × 20.98 (H×V×D) |
| Luminance: | 500 Cd/m² (Typ.) | Contrast Ratio: | 1000 : 1 (Typ.) (TM) |
| Mass: | 4.63Kgs (Typ.) | Used For: | Industrial / Medical Imaging |
| High Light: | TFT Medical LCD Panel,G320ZAN02.4 Medical LCD Panel,Medical Imaging Industrial LCD Display |
||
Product Description
Industrial G320ZAN02.4 TFT Medical LCD Panel For Medical Imaging
Industrial 32.0 LCD display G320ZAN02.4 TFT screen Panel for Medical Imaging
G320ZAN02.4 Product details :
| AUO LCD Screen G320ZAN02.4 | |
|---|---|
| Brand | AUO |
| Model P/N | G320ZAN02.4 |
| Diagonal Size | 32.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840(RGB)×2160, UHD 137PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 708.48(W)×398.52(H) mm |
| Bezel Opening | 714.48(W)×404.52(H) mm |
| Outline(mm) | 727.3 × 424.5 × 20.98 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 22 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AHVA, Normally Black, Transmissive |
| Color Depth | 1.07B 100% sRGB |
| Backlight | WLED , 30K hours , With LED Driver |
| Mass | 4.63Kgs (Typ.) |
| Used for | Industrial / Medical Imaging |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | V-by-One 8 lane , 51 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Industrial 32.0 LCD display G320ZAN02.4 TFT screen Panel for Medical Imaging | |
G320ZAN02.4 We Promise to:
1:Only sell the best consumer goods and ensure the highest quality possible.
2:Deliver goods to our customers all over the world with speed and precision
G320ZAN02.4 Shipping and Package :
G320ZAN02.4 Shipping:
1,We will send out your goods within 3 working days after we get your order .
2,Free Shipping via China Post Registered Air Mail or ePacket.You can choose any other shipping method on Alibaba too.
3, Please make sure your shipping information are correct before order .If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
G320ZAN02.4 Service hours:
lf you have any question, please contact us I will sincerely for your service, our service time for the Beijing time:8: 00-12: 00; 1: 30-6: 00;But we have 24 hours will have customer service for you to solve the problem.
G320ZAN02.4 FAQ:
Q: Can You declare my order of G320ZAN02.4 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods G320ZAN02.4 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of G320ZAN02.4 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of G320ZAN02.4 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
