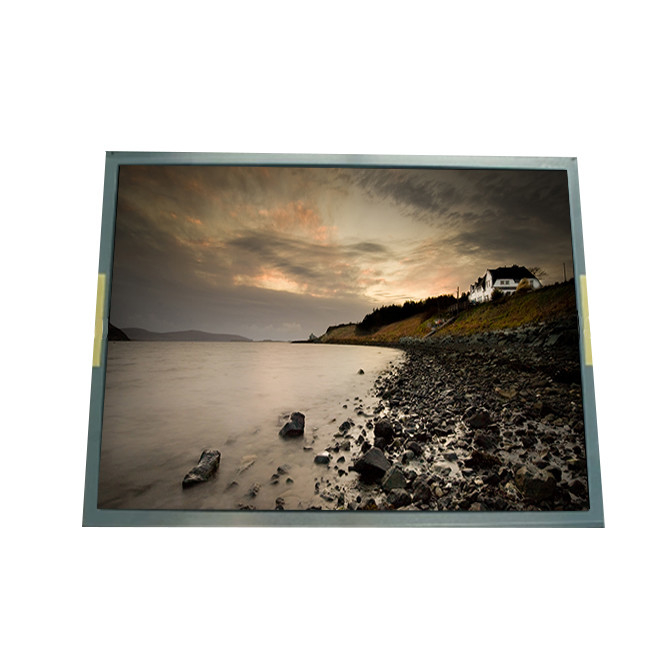

G150XG03 V5 LCD Panel Display Module 1024*768 85PPI Resolution
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G150XG03 V5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G150XG03 V5 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA, 85PPI | Display Size: | 304.128(W)×228.096(H) Mm |
| Outline Dim.: | 1024(RGB)×768, XGA, 85PPI | Brightness: | 250 Cd/m² (Typ.) |
| Support Color: | 262K/16.2M , 65% NTSC | Response Time: | 5.7/2.3 (Typ.)(Tr/Td) Ms |
| Viewing Angle: | 80/80/60/80 (Typ.)(CR≥10) | Designed For: | Industrial |
| High Light: | G150XG03 V5 LCD Panel Display Module,AUO LCD Panel Display Module,85PPI Resolution AUO LCD Screen |
||
Product Description
G150XG03 V5 LCD Panel Display Module 1024*768 85PPI Resolution
15.0 inch 1024*768 85PPI G150XG03 V5 LCD Panel Screen
G150XG03 V5 Product details :
| AUO LCD SCREEN G150XG03 V5 | |
| Panel Brand | AUO |
| Panel Model | G150XG03 V5 |
| Panel Size | 15.0 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 310.18(W)×234.40(H) mm |
| Outline Size | 326.5(W)×253.5(H) ×13.1(D) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 5.7/2.3 (Typ.)(Tr/Td) ms |
| Display Colors | 262K/16.2M , 65% NTSC |
| Lamp Type | WLED , 30K hours, with LED driver |
| Frequency | 60Hz |
| Application | Industrial |
| Panel Weight | 950g (Max.) |
| Signal Interface | 20 pins LVDS (1 ch, 6/8-bit) , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: -30 ~ 85 °C ; Storage temperature: -30 ~ 85 °C |
| 15.0 inch 1024*768 85PPI G150XG03 V5 LCD Panel Screen | |
G150XG03 V5 Features:
1.Reasonable and competitive price.
2.if you have any problem with the item, please contact me before you buy it, we will reply to you as soon as possible.
3.Each item has been checked and in good condition before shipping.
4. It is shipped in protective bubble wrap and has all the protective screen coatings, so, please do not worry.
G150XG03 V5 About Shipping:
We will test them strictly before shipping.
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
G150XG03 V5 Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
G150XG03 V5 Return and feedback:
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
G150XG03 V5 FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of G150XG03 V5 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of G150XG03 V5 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of G150XG03 V5 ?
A: Of course!sample order is welcome !
G150XG03 V5 Shipping and Package :
