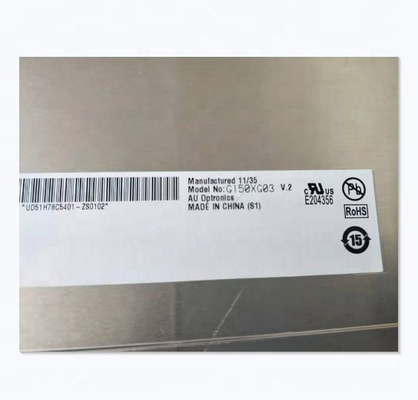

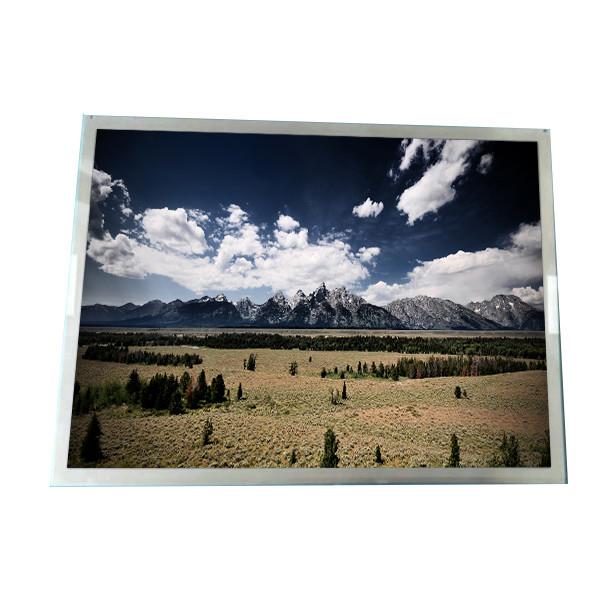

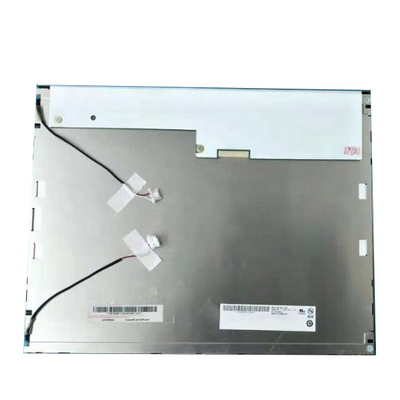

1024X768 15.0 Inch AUO Industrial Lcd Screen 20 Pin TFT LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G150XG01 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G150XG03 V2 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA, 85PPI | Display Size: | 304.128(W)×228.096(H) Mm |
| Outline Dim.: | 326.5(W)×253.5(H)×12(D) Mm | Brightness: | 250 Cd/m² (Typ.) |
| Support Color: | 262K/16.2M , 65% NTSC | Response Time: | 5.7/2.3 (Typ.)(Tr/Td) Ms |
| Viewing Angle: | 80/80/70/70 (Typ.) (CR≥10) | Designed For: | Industrial |
| High Light: | AUO Industrial Lcd Screen,G150XG03 V2 Industrial Lcd Screen,AUO TFT LCD Module |
||
Product Description
1024X768 15.0 Inch AUO Industrial Lcd Screen 20 Pin TFT LCD Module
G150XG03 V2 1024X768 15.0 inch 20 pin for Industrial lcd screen
G150XG03 V2 Product details :
| AUO LCD SCREEN G150XG03 V2 | |
| Panel Brand | AUO |
| Panel Model | G150XG03 V2 |
| Panel Size | 15.0 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm |
| Outline Size | 326.5(H)×253.5(V) ×12(D) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/70/70 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 5.7/2.3 (Typ.)(Tr/Td) ms |
| Display Colors | 262K/16.2M , 65% NTSC |
| Lamp Type | CCFL [2 pcs] , 50K hours, no driver |
| Frequency | 60Hz |
| Panel Weight | 1.10Kgs (Typ.) |
| Designed For | Industrial |
| Touch Panel | Without |
| Signal Interface | 20 pins LVDS (1 ch, 6/8-bit) , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: -30 ~ 85 °C ; Storage temperature: -30 ~ 85 °C |
| G150XG03 V2 1024X768 15.0 inch 20 pin for Industrial lcd screen | |
G150XG03 V2 Ransaction:
If the buyer cannot find the same product, the buyer can send us the product and model, and we will provide it for you.
100% new meaning new product.95% new and 90% new meaning second-hand products,All products good working,tested before shipping.
After installation, if not working, please contact us as soon as possible, and our engineers will help you solve the problem.
At the time of delivery, please verify the correctness and completeness of the goods. If the goods are wrong or damaged, please refuse to sign and contact us.
G150XG03 V2 About Shipping:
We will test them strictly before shipping.
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
G150XG03 V2 Return and feedback:
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
G150XG03 V2 FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional
Q: How to order AUO Display LCD G150XG03 V2 ?
A: We accept T/T , Paypal , western union .
Q: Can you tested the G150XG03 V2 before shipping ?
A: Of course , our lcd panel G150XG03 V2 was Strictly tested before shipping.
Q: What happen if the lcd pane G150XG03 V2 received can't work ?
A: AUO Display G150XG03 V2 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
G150XG03 V2 Shipping and Package :
