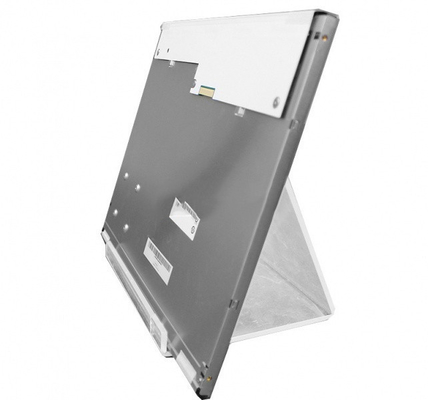

G150XG01 V2 TFT LCD Screen Display Panel 1024×768 XGA 85PPI Resolution
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G150XG01 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G150XG01 V2 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA, 85PPI | Display Size: | 304.128(W)×228.096(H) Mm |
| Outline Dim.: | 326.5(W)×253.5(H)×12(D) Mm | Brightness: | 350 Cd/m² (Typ.) |
| Support Color: | 262K/16.2M , 65% NTSC | Response Time: | 5.7/2.3 (Typ.)(Tr/Td) Ms |
| Viewing Angle: | 80/80/80/60 (Typ.) (CR≥10) | Designed For: | Industrial |
| High Light: | XGA TFT LCD Screen Display Panel,85PPI Resolution LCD Screen Display Panel,G150XG01 V2 TFT LCD Panel |
||
Product Description
G150XG01 V2 TFT LCD Screen Display Panel 1024×768 XGA 85PPI Resolution
15 inch G150XG01 V2 20 pin 1024*768 TFT LCD panel
G150XG01 V2 Product details :
| AUO LCD SCREEN G150XG01 V2 | |
| Panel Brand | AUO |
| Panel Model | G150XG01 V2 |
| Panel Size | 15.0 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm |
| Outline Size | 326.5(W)×253.5(H)×12(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 5.7/2.3 (Typ.)(Tr/Td) ms |
| Display Colors | 262K/16.2M , 65% NTSC |
| Lamp Type | WLED [9S3P] , 50K hours, no driver |
| Frequency | 60Hz |
| Designed For | Industrial |
| Designed For | Without |
| Panel Weight | 1.10Kgs (Typ.) |
| Signal Interface | 20 pins LVDS (1 ch, 6/8-bit) , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Working: -30 ~ 85 °C ; Storage: -30 ~ 85 °C |
| 15 inch G150XG01 V2 20 pin 1024*768 TFT LCD panel | |
G150XG01 V2 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
G150XG01 V2 About Shipping:
We will test them strictly before shipping.
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
G150XG01 V2 Return and feedback:
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
G150XG01 V2 FAQ:
Q: How to order HITACHI G150XG01 V2 ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: When will ship my order G150XG01 V2 ?
A: The order are shipped within 1-2 working days after received the payment.
Q: What happen if G150XG01 V2 I received can't work ?
A: AUO G150XG01 V2 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How long the warranty of 15.0 inch TFT-LCD G150XG01 V2 ?
A: 90 DAYS.
G150XG01 V2 Shipping and Package :
