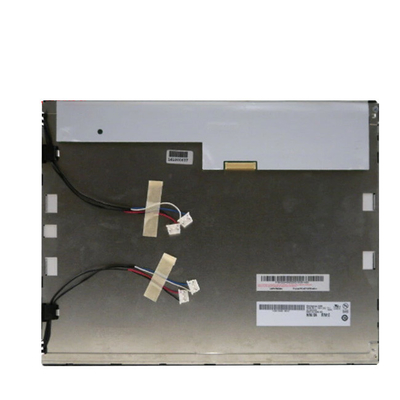

High Brightness TFT 1024*768 CCFL LCD Backlight Panel Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G150XG02 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G150XG02 V1 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA, 85PPI | Display Size: | 304.128(W)×228.096(H) Mm |
| Outline Dim.: | 326.5×253.5×14.6 (H×V×D) | Brightness: | 550 Cd/m² (Typ.) |
| Support Color: | 262K/16.2M , 65% NTSC | Response Time: | 5.7/2.3 (Typ.)(Tr/Td) Ms |
| Viewing Angle: | 80/80/70/70 (Typ.) (CR≥10) | Designed For: | Industrial |
| High Light: | CCFL LCD Backlight Panel,G150XG02 V1 LCD Backlight Panel,Backlight LCD Panel Screen |
||
Product Description
G150XG02 V1 TFT 1024*768 CCFL LCD Backlight Panel Display Screen
15 inch G150XG02 V1 tft 1024*768 ccfl backlight lcd panel display
G150XG02 V1 Product details :
| AUO LCD SCREEN G150XG02 V1 | |
| Panel Brand | AUO |
| Panel Model | G150XG02 V1 |
| Panel Size | 15.0 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm |
| Outline Size | 326.5×253.5×14.6 (H×V×D) |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 550 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/70/70 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 5.7/2.3 (Typ.)(Tr/Td) ms |
| Display Colors | 262K/16.2M , 65% NTSC |
| Lamp Type | CCFL [4 pcs] , 50K hours, no driver |
| Frequency | 60Hz |
| Panel Weight | 1.35Kgs (Typ.) |
| Used for | Industrial |
| Touchscreen | Without |
| Signal Interface | 20 pins LVDS (1 ch, 6/8-bit) , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Working: -30 ~ 85 °C ; Storage: -30 ~ 85 °C |
| 15 inch G150XG02 V1 tft 1024*768 ccfl backlight lcd panel display | |
