Medical LCD Panel

21.5 Inch Medical imaging FHD LCD Screen G215HAN01.6 LVDS Interface

All Category

Floor Standing Digital Signage

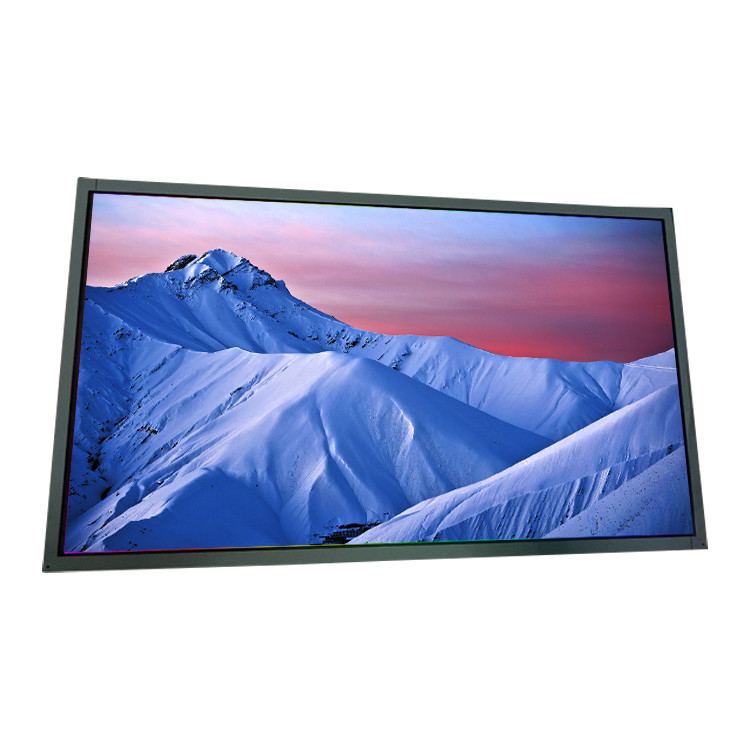

21.5 Inch Medical imaging FHD LCD Screen G215HAN01.6 LVDS Interface

Brand Name:	AUO
Model Number:	G215HAN01.6
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

G215HAN01.6

Diagonal Size:

21.5"

Resolution:

1920(RGB)×1080, FHD 102PPI

Active Area:

476.064(W)×267.786(H) Mm

Bezel Opening:

479.8(W)×271.3(H) Mm

Outline (mm):

497.6×292.2 (H×V×D)

Luminance:

500 Cd/m² (Typ.)

Contrast Ratio:

1800:1 (Typ.) (TM)

Response:

12/10 (Typ.)(Tr/Td) Ms

Used For:

Industrial / Medical Imaging

Supply Ability:

100000 Unit/Units per Month

Highlight:

Medical Imaging FHD LCD Screen

LVDS Interface FHD LCD Screen

G215HAN01.6 LVDS LED Display

Product Description

21.5 Inch Medical Imaging FHD LCD Screen G215HAN01.6 LVDS Interface

21.5 inch FHD LCD screen G215HAN01.6 LVDS LED display

G215HAN01.6 Product details :

AUO LCD Screen G215HAN01.6
Brand	AUO
Model P/N	G215HAN01.6
Diagonal Size	21.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 102PPI
Pixel Format	RGB Vertical Stripe
Active Area	476.064(W)×267.786(H) mm
Bezel Opening	479.8(W)×271.3(H) mm
Outline (mm)	497.6×292.2 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	500 cd/m² (Typ.)
Contrast Ratio	1800 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response	12/10 (Typ.)(Tr/Td) ms
Good View at	Symmetry
Work Mode	AHVA, Normally Black, Transmissive
Color Depth	16.7M 72% NTSC
Backlight	WLED , 50K hours , No Driver
Used for	Industrial / Medical Imaging
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit) , Connector 30 pins
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
21.5 inch FHD LCD screen G215HAN01.6 LVDS LED display

G215HAN01.6 Purchase instructions:

Ⅰ All products are guaranteed to be genuine

Ⅱ All products are tested and delivered

Ⅲ Different models of the same link can be used in general

Ⅳ If you need help, please leave a message to the owner

G215HAN01.6 Payment:

1:We accept Alipay, PayPal, Western Union, TT here

2: All major credit cards are accepted through secure payment proces-sor ESCROW

3:Please make sure you read the entire description and agree to the transaction before buying.

G215HAN01.6 Shipping and Package :

21.5 Inch Medical imaging FHD LCD Screen G215HAN01.6 LVDS Interface 0

G215HAN01.6 Return:

Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.

Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.

G215HAN01.6 FAQ:

Q: How long is the warranty of G215HAN01.6 ?

A: 90 days warranty .

Q: How can I trace my order of AUO G215HAN01.6 ?

A: we will give you tracking number then you can trace your order form website.

Q: Can You declare my order of lcd panel G215HAN01.6 at a very low value ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of G215HAN01.6 ?

A: Of course!If you make a large order, we will give you a discount.
