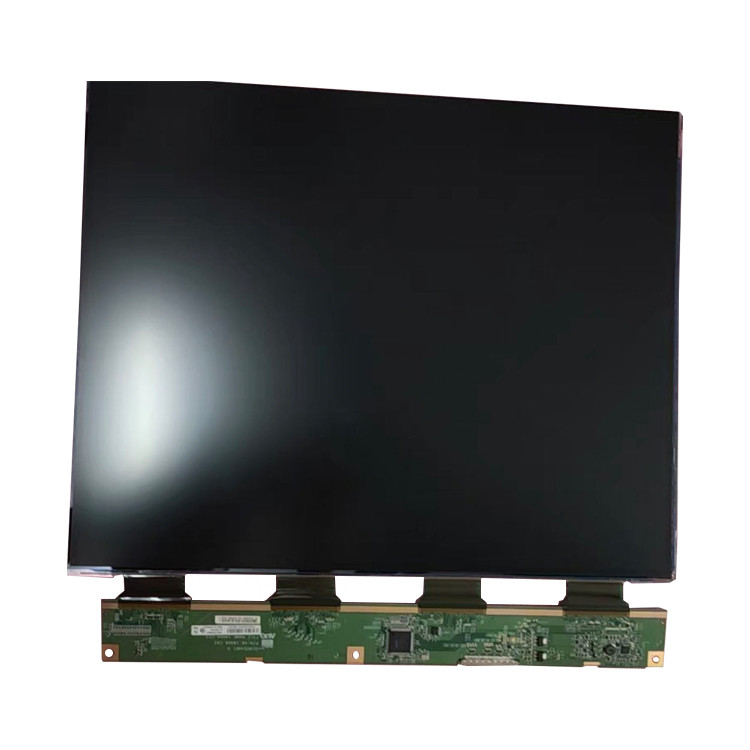

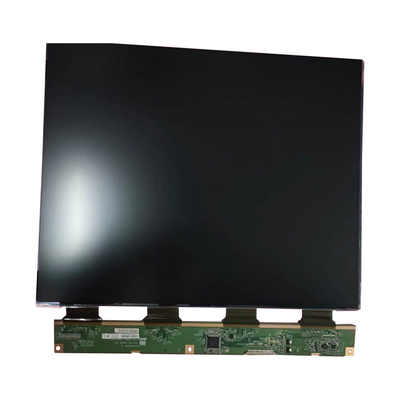

19.0 Inch 30 Pins 1280*1024 CELL Medical LCD Panel Monitor Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G190EAN01.0 CELL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G190EAN01.0 CELL | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 86PPI | Active Area: | 376.32(W)×301.056(H) Mm |
| Luminance: | 0 Cd/m² | Contrast Ratio: | 1000 : 1 (Typ.) (TM) |
| Response: | 13/12 (Typ.)(Tr/Td) Ms | Work Mode: | AHVA, Normally Black, Transmissive |
| Color Depth: | 16.7M 72% NTSC | Used For: | Industrial / Medical Imaging |
| High Light: | CELL Medical LCD Panel,G190EAN01.0 Medical LCD Panel,30 Pins LCD Monitor Display |
||
Product Description
19.0 Inch 30 Pins 1280*1024 CELL Medical LCD Panel Monitor Display
19.0 inch 30 pins 1280*1024 G190EAN01.0 CELL Medical Imaging lcd monitor display
G190EAN01.0 CELL Product details :
| AUO LCD Screen G190EAN01.0 CELL | |
|---|---|
| Brand | AUO |
| Model P/N | G190EAN01.0 CELL |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 376.32(W)×301.056(H) mm |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 13/12 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AHVA, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | No B/L |
| Used for | Industrial / Medical Imaging |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Built-in COG 4 source + 2 gate chips |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 19.0 inch 30 pins 1280*1024 G190EAN01.0 CELL Medical Imaging lcd monitor display | |
