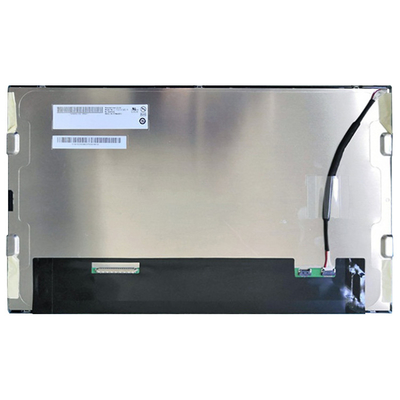

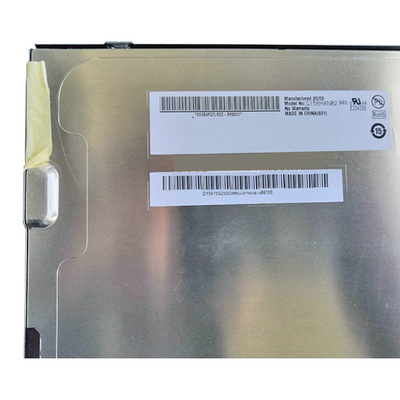

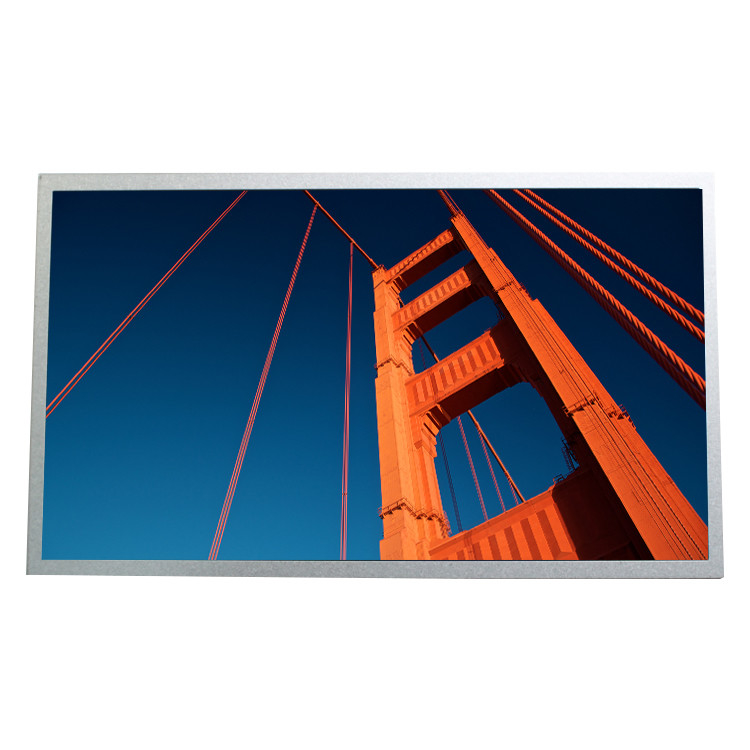

AUO 15.6 Inch G156HAN02.302 Medical LCD Panel 1920*1080 Resolution

Brand Name: AUO
Model Number: G156HAN02.302
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
China
Model Name:
G156HAN02.302
Diagonal Size:
15.6"
Resolution:
1920(RGB)*1080, FHD 141PPI
Active Area:
344.16(W)*193.59(H) Mm
Bezel Opening:
347.06(W)*196.49(H) Mm
Outline Dim.:
363.8(H)*215.9(V)*9.3(D) Mm
Luminance:
500 Cd/m² (Typ.)
Contrast Ratio:
1000:1 (Typ.) (TM)
Weight:
600/660g (Typ./Max.)
Designed For:
Industrial / Medical Imaging
Supply Ability:
100000 Unit/Units per Month
Highlight:

AUO Medical LCD Panel

,

G156HAN02.302 Medical LCD Panel

,

Medical Imaging TFT LCD Display

Product Description

AUO 15.6 Inch G156HAN02.302 Medical LCD Panel 1920*1080 Resolution



AUO 15.6 Inch TFT-LCD Display 1920*1080 Resolution G156HAN02.302 Lcd Panel For Medical Imaging

G156HAN02.302 Product details :

AUO LCD Screen G156HAN02.302
Brand AUO
Model P/N G156HAN02.302
Diagonal Size 15.6"
Panel Type a-Si TFT-LCD, LCM
Resolution 1920(RGB)×1080, FHD 141PPI
Pixel Format RGB Vertical Stripe
Active Area 344.16(W)×193.59(H) mm
Bezel Opening 347.06(W)×196.49(H) mm
Outline Dim. 363.8(H)×215.9(V) ×9.3(D) mm
Treatment Antiglare, Hard coating (3H)
Luminance 500 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
View Direction Symmetry
Response Time 25 (Typ.)(Tr+Td)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Operating Mode AHVA, Normally Black, Transmissive
Support Color 16.7M 99% sRGB
Light Source WLED , 50K hours , With LED Driver
Weight 600/660g (Typ./Max.)
Designed For Industrial / Medical Imaging
Frame Rate 60Hz
Touch Panel Without
Interface Type LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C
AUO 15.6 Inch TFT-LCD Display 1920*1080 Resolution G156HAN02.302 Lcd Panel For Medical Imaging



G156HAN02.302 WARNING:


* Make sure your original one is same as ours


* Installation guide NOT included, Please ask Skilled person for operation.



G156HAN02.302 Shipping and Package :

AUO 15.6 Inch G156HAN02.302 Medical LCD Panel 1920*1080 Resolution 0

G156HAN02.302 Shipping:



We will ship all items within 5 working days upon receipt of payment,our goal is: ship it as fast as we can.



Standard Shipping: To USA,Europe and Australia by SpeedPAK,need 15 working days.

All parcels will provide tracking number for you track.



Expedited/Standard Int'l Shipping by FEDEX : To USA,need 5-6 working days,To other countries,need 6-8 working days normally.But sometimes int'l delivery is highly depended on the courier company and local customs/duties.



Import duties and taxes are not included in the item price or shipping charges.These charges are the buyer responsibility.



G156HAN02.302 Warranty:


Quality assurance is provided.If you feel disappointed with the item,tell us within 7 days of delivery.Items must be returned in original condition for refund/exchange.Shipping cost incurred is on you.We understand the frustrations you might have.We card about each buyer and will do our endeavor to fix any problem in a good business manner.Your satisfaction is always our NO.1 priority.



G156HAN02.302 FAQ:



Q: How long is the warranty of G156HAN02.302 ?

A: 90 days warranty .



Q: Can I pay my goods G156HAN02.302 by credit card ?

A: Yes!you can use your credit card through your Paypal account.



Q: Can You declare my order of lcd panel G156HAN02.302 at a very low value ?

A: Yes , we can . pls inform us before shipping .



Q: I do not find the LCD I am looking for in the website, what should I do ?

A: You can give us some pictures,we have a lot of LCD out of shelves.
