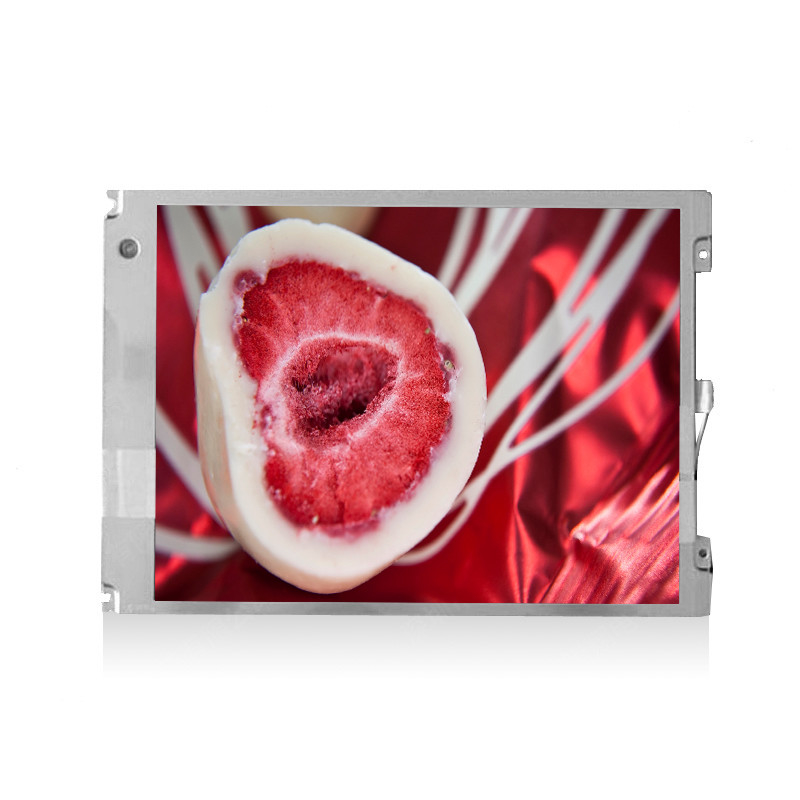

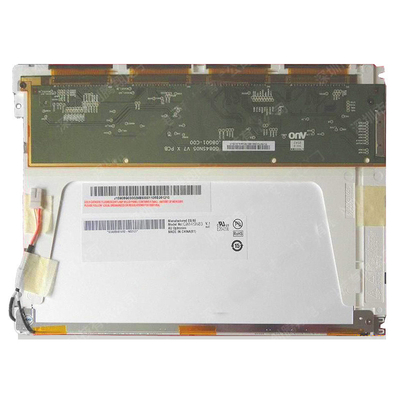

G084SN03 V.1 8.4 Inch 800*600 LVDS LCD Display Panel 45% NTSC Color
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G084SN03 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G084SN03 V1 | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 800(RGB)*600 SVGA 119PPI | Display Size: | 170.4(H)*127.8(V) Mm |
| Outline Dim.: | 203(H)*142.5(V) Mm | Brightness: | 250 Cd/m² (Typ.) |
| Support Color: | 262K/16.2M, 45% NTSC | Response Time: | 20/10 (Typ.)(Tr/Td) Ms |
| Viewing Angle: | 80/80/80/60 (Typ.)(CR≥10) | Designed For: | Industrial |
| High Light: | G084SN03 V.1 LVDS LCD Display,45% NTSC Color LVDS LCD Display,G084SN03 V.1 LVDS Display Panel |
||
Product Description
G084SN03 V.1 8.4 Inch 800*600 LVDS LCD Display Panel 45% NTSC Color
G084SN03 V1 8.4 inch 800*600 20 pins LVDS lcd display panel
G084SN03 V1 Product details :
| AUO LCD SCREEN G084SN03 V1 | |
| Manufacturer | AUO |
| Model Name | G084SN03 V1 |
| Diagonal Size | 8.4 inches |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Number | 800(RGB)*600 SVGA 119PPI |
| Configuration | RGB Vertical Stripe |
| Display size | 170.4(H)*127.8(V) mm |
| Outline Dim. | 203(H)*142.5(V) mm |
| Bezel Opening | 173.8(H)*131.2(V) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (transmission) |
| Response Time | 20/10 (Typ.)(Tr/Td) ms |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.2M, 45% NTSC |
| Light Source | CCFL [1 pcs], 30K hours, no driver |
| Frame Rate | 60Hz |
| Weight | 200±10g |
| Designed For | Industrial |
| Touch Panel | Without |
| Interface Type | 20 pins LVDS (1 ch, 6-bit), connector |
| Power Supply | 3.3V (Typ.) |
| Environment | -30 ~ 85 °C; Storage temperature: -30 ~ 85 °C |
| G084SN03 V.1 8.4 inch 800*600 20 pins LVDS lcd display panel | |
G084SN03 V1 Item contains:
Keep in mind that we use on there a general photo to show you each and every one of the products that we handle, but remember that you are buying the part number that is mentioned in the title.
We have a lot of products and only show a small number of products on the website.
If you need other products,please contact us directly for much better price.
G084SN03 V1 Shipping:
1,We will send out your goods within 3 working days after we get your order .
2,Free Shipping via China Post Registered Air Mail or ePacket.You can choose any other shipping method on Aliexpress too.
3, Please make sure your shipping information are correct before order .If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
G084SN03 V1 WARRANTY:
- Exchange/replace item within 30 days
counting from the day you receive merchandise.
- Buyer pay the return shipping cost.
- Exchange/replace item should be new.
G084SN03 V1 FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Do you accept the sample order of G084SN03 V1 ?
A: Yes, Welcome !
Q: How long the warranty of G084SN03 V1 ?
A: 90 days .
Q: What happen if the G084SN03 V1 received can't work ?
A: Our G084SN03 V1 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
G084SN03 V1 Shipping and Package :
