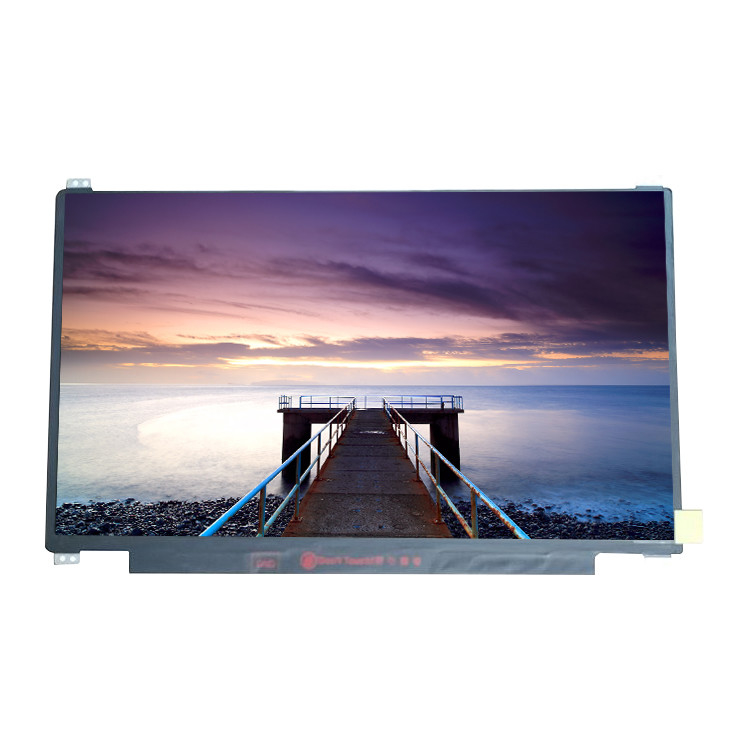

G133HAN02.2 WLED FHD LCD Display 1920*1080 For Medical Device
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G133HAN02.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G133HAN02.2 | Diagonal Size: | 13.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 166PPI | Active Area: | 293.472(W)×165.078(H) Mm |
| Outline(mm): | 306.3 × 195.29 × 3.2 (H×V×D) | Treatment: | Glare (Haze 0%) |
| Response: | 27 (Typ.)(Tr+Td) Ms | Work Mode: | AHVA, Normally Black, Transmissive |
| Mass: | 280g (Max.) | Used For: | Industrial / Medical Imaging / Gaming |
| High Light: | WLED FHD LCD Display,Medical Device FHD LCD Display,G133HAN02.2 Medical Device Display |
||
Product Description
G133HAN02.2 WLED FHD LCD Display 1920*1080 For Medical Device
13.3 inch FHD LCD screen G133HAN02.2 WLED 1920*1080 LED display for Medical Imaging
G133HAN02.2 Product details :
| AUO LCD Screen G133HAN02.2 | |
|---|---|
| Brand | AUO |
| Model P/N | G133HAN02.2 |
| Diagonal Size | 13.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 166PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 293.472(W)×165.078(H) mm |
| Outline(mm) | 306.3 × 195.29 × 3.2 (H×V×D) |
| Treatment | Glare (Haze 0%) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 27 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AHVA, Normally Black, Transmissive |
| Color Depth | 16.2M 45% NTSC |
| Backlight | WLED , 50K hours , With LED Driver |
| Mass | 280g (Max.) |
| Used for | Industrial / Medical Imaging / Gaming |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C |
| 13.3 inch FHD LCD screen G133HAN02.2 WLED 1920*1080 LED display for Medical Imaging | |
G133HAN02.2 NOTES:
1.When you order our screens, please confirm the model of your machine. To avoid purchasing incorrectly and not being able to use properly.
2. Before you confirm that the screen cannot function perfectly, please do not use adhesive to install our screen onto your device. If the screen has adhesive attached, we cannot accept your return and request a refund.
G133HAN02.2 Shipping and Package :
G133HAN02.2 Shipping:
1. We will test them strictly before shipment.
2. We will only pay the shipping cost and tax for our country, if there is any shipping cost and tax in your country, you should pay for it.
3. We will send the product within7 working days after receiving the order.(Chinese New Year, we will extend the delivery of products)
4.Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition or replace it.
5.Please confirm it with us before buying if you need 100% new.
G133HAN02.2 Allocation of additional shipping costs:
If the customer has any errors regarding the required product or delivery address, we will charge additional shipping fees.
G133HAN02.2 FAQ:
Q: Can You declare my order of G133HAN02.2 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of G133HAN02.2 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of G133HAN02.2 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of G133HAN02.2 ?
A: Of course!If you make a large order, we will give you a discount.
