Original HannStar Desktop Display Screen Monitor Panel 400cd Luminance
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD062IDW1-A01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD062IDW1-A01 | Diagonal Size: | 6.2" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 150PPI | Active Area: | 137.52(W)×77.232(H) Mm |
| Bezel Opening: | 140.7(W)×80.4(H) Mm | Outline Dim.: | 155.2(H)×88.2(V)×5.3(D) Mm |
| Luminance: | 400 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) (TM) |
| Weight: | 120g (Typ.) | Designed For: | HannStar |
| High Light: | HannStar Desktop Display Screen,400cd LCD Laptop Screen,HannStar Desktop LCD Monitor |
||
Product Description
Original HannStar Desktop Display Screen Monitor Panel 400cd Luminance

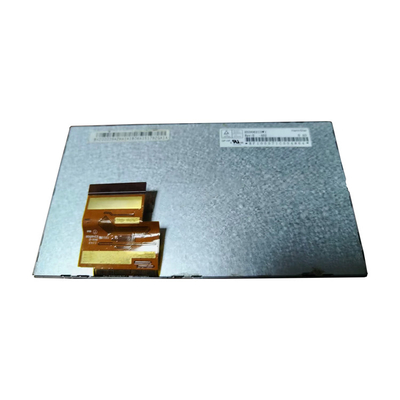

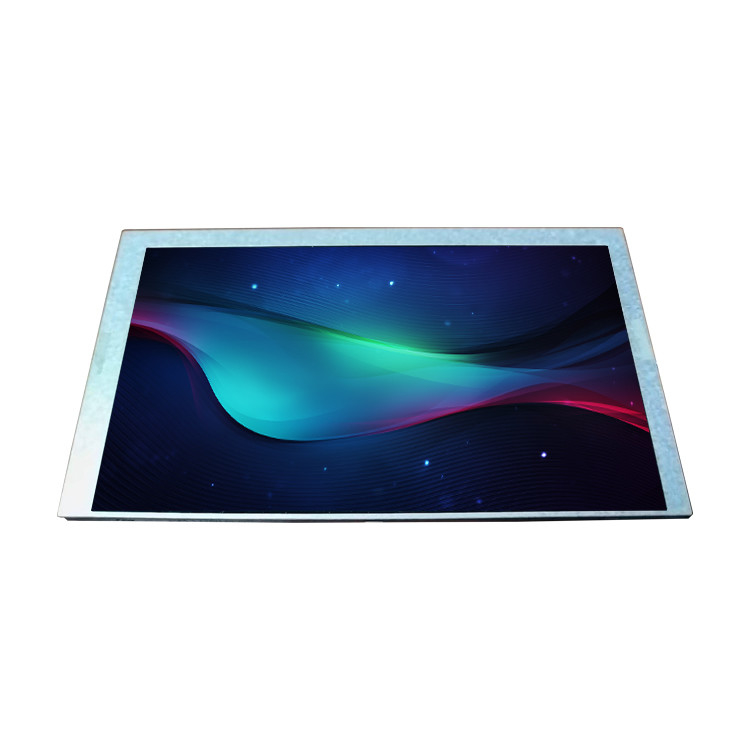

Original HannStar 6.2 inch 800*480 Resolution LCD Screen Display Module HSD062IDW1-A01
HSD062IDW1-A01 Product details :
| HannStar LCD Screen HSD062IDW1-A01 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD062IDW1-A01 |
| Diagonal Size | 6.2" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 150PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 137.52(W)×77.232(H) mm |
| Bezel Opening | 140.7(W)×80.4(H) mm |
| Outline Dim. | 155.2(H)×88.2(V)×5.3(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle | 75/75/70/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.2M 50% NTSC |
| Light Source | WLED [3S7P] , 20K hours , W/O Driver |
| Weight | 120g (Typ.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | TTL (1 ch, 6/8-bit) , 60 pins FPC |
| Power Supply | 3.3/10.0/15.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| Original HannStar 6.2 inch 800*480 Resolution LCD Screen Display Module HSD062IDW1-A01 | |
