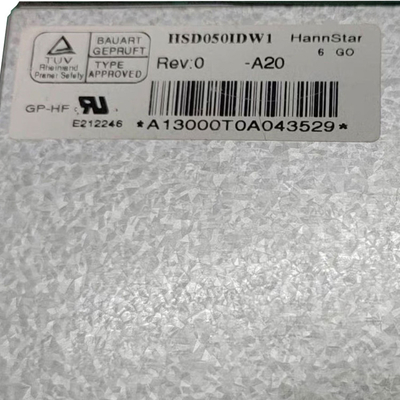

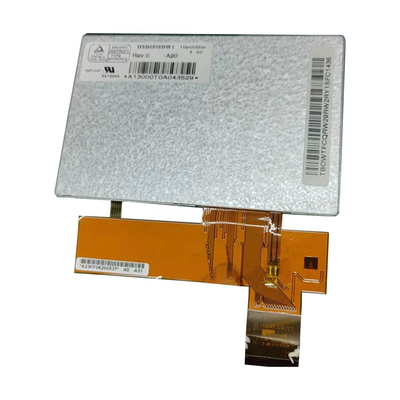

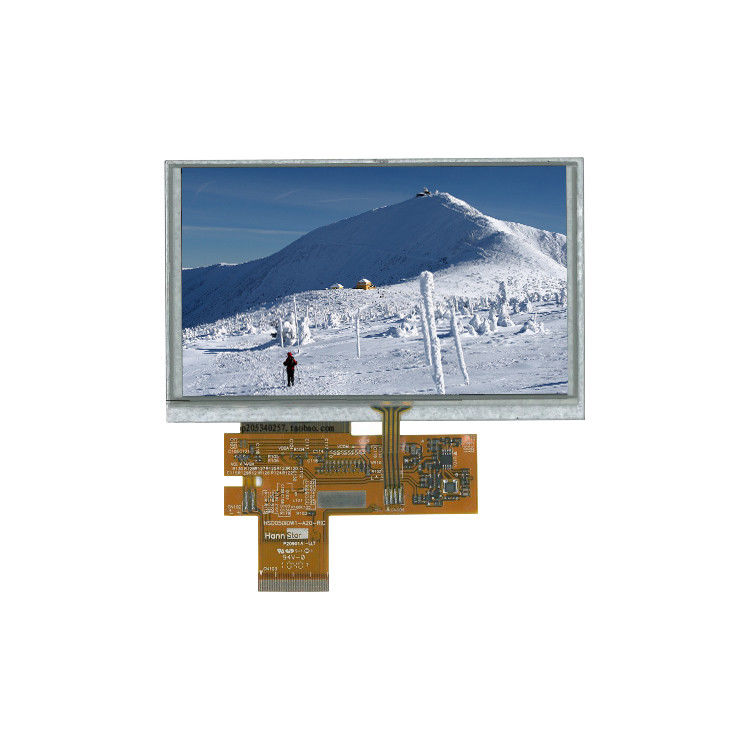

HannStar 5.0 Inch 800*480 RGB LCD Screen Display Panel HSD050IDW1-A20
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD050IDW1-A20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD050IDW1-A20 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 188PPI | Active Area: | 108(W)×64.8(H) Mm |
| Bezel Opening: | 110.6(W)×67.4(H) Mm | Outline Size: | 118.5(W)×77.55(H) ×3.7(D) Mm |
| Brightness: | 400 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) (TM) |
| Panel Weight: | 66.0g (Typ.) | Application: | Automotive Display / Portable Navigation / MID UMPC / MP3 PMP / Gaming |
| High Light: | RGB LCD Screen Display Panel,HSD050IDW1-A20 LCD Screen Display Panel,HannStar 5 Inch LCD Display |
||
Product Description
HannStar 5.0 Inch 800*480 RGB LCD Screen Display Panel HSD050IDW1-A20
HannStar 5.0 inch 800*480 LCD panel HSD050IDW1-A20 LCD display
HSD050IDW1-A20 Product details :
| HannStar LCD Screen HSD050IDW1-A20 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD050IDW1-A20 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 108(W)×64.8(H) mm |
| Bezel Opening | 110.6(W)×67.4(H) mm |
| Outline Size | 118.5(W)×77.55(H) ×3.7(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Display Colors | 16.2M |
| Lamp Type | 7S2P WLED , 10K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 66.0g (Typ.) |
| Application | Automotive Display / Portable Navigation / MID UMPC / MP3 PMP / Gaming |
| Signal Interface | TTL (1 ch, 8-bit) , 40 pins FPC |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| HannStar 5.0 inch 800*480 LCD panel HSD050IDW1-A20 LCD display | |
HSD050IDW1-A20 Payment:
· PayPal is the only method of payment that we accept.
· The price not included customs fee.Some of country maybe need buyer customs clear and pay for customs fee.
HSD050IDW1-A20 Shipping and Package :
HSD050IDW1-A20 About Shipping:
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
HSD050IDW1-A20 Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund.The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
HSD050IDW1-A20 FAQ:
Q: Can You declare my order of HSD050IDW1-A20 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of HSD050IDW1-A20 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of HSD050IDW1-A20 ?
A: Of course!sample order is welcome !
Q: How to make payment of HSD050IDW1-A20 ?
A: We accept T/T , Paypal , western union .
