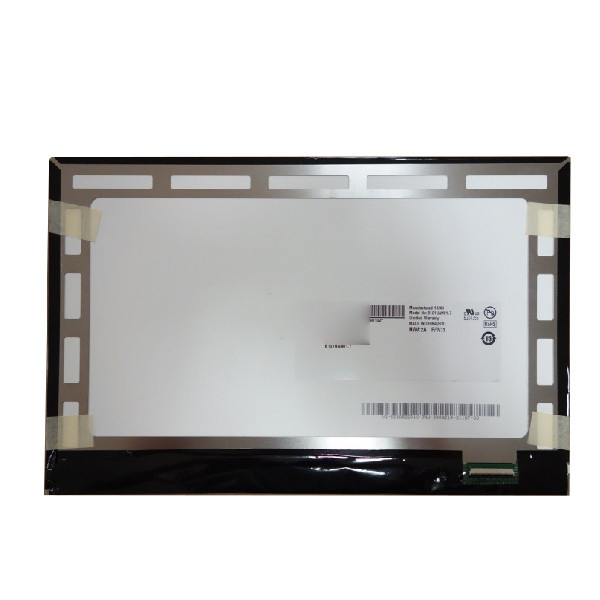

B101UAN01.7 HW2A TFT Screen Display For Tablet 1920*1200 WUXGA 224PPI
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101UAN01.7 HW2A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B101UAN01.7 HW2A | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1200, WUXGA 224PPI | Active Area: | 216.81(W)×135.5(H) Mm |
| Outline Size: | 227.72 × 147.8 × 5.35 (H×V×D) | Brightness: | 400 Cd/m² (Typ.) |
| Contrast Ratio: | 800:1 (Typ.) (TM) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Display Colors: | 16.7M 50% NTSC | Application: | Pad & Tablet |
| High Light: | Tablet TFT Screen Display,WUXGA TFT Screen Display,WUXGA LCD Screen For Tablet |
||
Product Description
B101UAN01.7 HW2A TFT Screen Display For Tablet 1920*1200 WUXGA 224PPI
10.1 inch 1920*1200 224PPI B101UAN01.7 HW2A tablet LCD screen
B101UAN01.7 HW2A Product details :
| AUO LCD SCREEN B101UAN01.7 HW2A | |
| Brand | AUO |
| Model Name | B101UAN01.7 HW2A |
| Panel type | TFT-LCD Si-OLED |
| Panel size | 10.1" |
| Resolution | 1920(RGB)×1200, WUXGA 224PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 216.81(W)×135.5(H) mm |
| Outline(mm) | 227.72 × 147.8 × 5.35 (H×V×D) |
| Treatment | Glare (Haze 0%) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AHVA, Normally Black, Transmissive |
| Color Depth | 16.7M 50% NTSC |
| Backlight | WLED , 12K hours , With LED Driver |
| Mass | 135g (Max.) |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | MIPI (4 data lanes) , 34 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 10.1 inch 1920*1200 224PPI B101UAN01.7 HW2A tablet LCD screen | |
B101UAN01.7 HW2A Notice:
1.Before installing the LCD screen, please turn off the power first, unplug the screen cable, and turn on the power after all the installation work is completed.
2.All panels will be sent out after strict testing to ensure that you can install them directly after receiving them.all panelsA+ grade no dead pixels
3.Please check the specific information of the Panel, we will ensure that the issued panel is fully compatible, if you are not sure about your specific panel, please send us the panel picture on your current machine to confirm, we will reply you as soon as possible.
4.If you are a professional and know the panel model you need, you can directly place an order to buy.
B101UAN01.7 HW2A Payment:
ESCROW, TT, Western Union or Paypal is available for you.
aliexpress will continue to update more payment methods.
When you submit your order you can choose the payment method that suits you.
B101UAN01.7 HW2A Delivery:
We can send out the items within 7 working days after payment confirmation.
The shipping way depends on the shipping cost which you choose, so please choose a proper shipping way according to your own situation.
If your place are located in a remote area, it may cost some extra charges, and we would let you know if the shipping cost is changed.
B101UAN01.7 HW2A Other Policies:
1:We are not responsible for any custom duty or import tax.
2:All emails will be answered within 24 hours.If you don't receive our reply, please kindly re-sent your email and we will reply to you.
B101UAN01.7 HW2A FAQ:
Q: Can I pay my order of B101UAN01.7 HW2A via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of B101UAN01.7 HW2A ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of B101UAN01.7 HW2A ?
A: we will give you tracking number then you can trace your order from website.
Q: Can You declare my order of B101UAN01.7 HW2A to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
B101UAN01.7 HW2A Shippment & Packing
