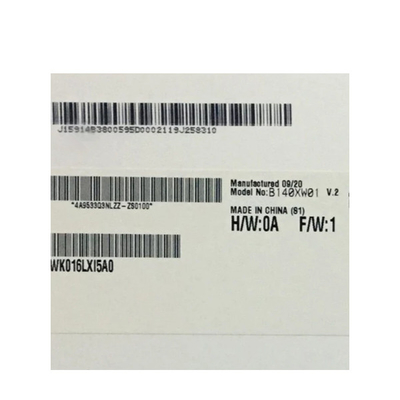

B140XW01 V2 LCD Laptop Screen Panels 262K 45% NTSC Display Colors
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B140XW01 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B140XW01 V2 | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 WXGA 112PPI | Active Area: | 309.399 × 173.952 Mm (H×V) |
| Outline Size: | 323.5 × 192 × 5.2 Mm (H×V×D) | Brightness: | 200 Cd/m² (Typ.) |
| Contrast Ratio: | 500:1 (Typ.) (TM) | Viewing Angle: | 45/45/15/35 (Typ.) (CR≥10) |
| Display Colors: | 262K , 45% NTSC | Application: | Laptop |
| High Light: | B140XW01 V2 LCD Laptop Screen,262K Colors LCD Laptop Screen,Laptop LCD Screen Panels |
||
Product Description
B140XW01 V2 LCD Laptop Screen Panels 262K 45% NTSC Display Colors

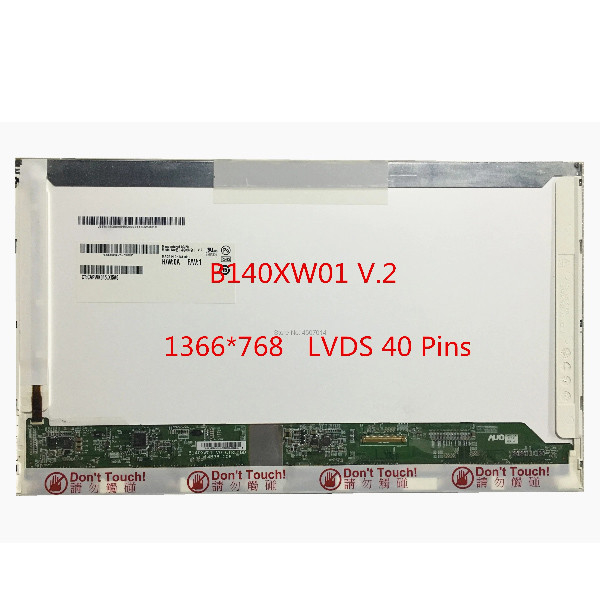

14.0 inch 1366*768 B140XW01 V2 Laptop LCD Screen LED panels
B140XW01 V2 Product details :
| AUO LCD SCREEN B140XW01 V2 | |
| Panel Brand | AUO |
| Panel Model | B140XW01 V2 |
| Panel Size | 14.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 WXGA 112PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 309.399(W)×173.952(H) mm |
| Bezel Opening | 312.40(W)×176.95(H) mm |
| Outline Size | 323.5(W)×192(H)×5.2(D) mm |
| Surface | Mirror (Haze 0%), Hard coating (3H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (Transmission) |
| Viewing Angle | 45/45/15/35 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 10K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Application | Laptop |
| Signal Interface | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| 14.0 inch 1366*768 B140XW01 V2 Laptop LCD Screen LED panels | |
B140XW01 V2 Notice:
1.Before installing the LCD screen, please turn off the power first, unplug the screen cable, and turn on the power after all the installation work is completed.
2.All panels will be sent out after strict testing to ensure that you can install them directly after receiving them.all panelsA+ grade no dead pixels
3.Please check the specific information of the Panel, we will ensure that the issued panel is fully compatible, if you are not sure about your specific panel, please send us the panel picture on your current machine to confirm, we will reply you as soon as possible.
4.If you are a professional and know the panel model you need, you can directly place an order to buy.
B140XW01 V2 Payment:
ESCROW, TT, Western Union or Paypal is available for you.
aliexpress will continue to update more payment methods.
When you submit your order you can choose the payment method that suits you.
B140XW01 V2 Delivery:
We can send out the items within 7 working days after payment confirmation.
The shipping way depends on the shipping cost which you choose, so please choose a proper shipping way according to your own situation.
If your place are located in a remote area, it may cost some extra charges, and we would let you know if the shipping cost is changed.
B140XW01 V2 Other Policies:
1:We are not responsible for any custom duty or import tax.
2:All emails will be answered within 24 hours.If you don't receive our reply, please kindly re-sent your email and we will reply to you.
B140XW01 V2 FAQ:
Q: Can I pay my order of B140XW01 V2 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of B140XW01 V2 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of B140XW01 V2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long is the warranty ?
A: We offer 90days warranty .
B140XW01 V2 Shippment & Packing
