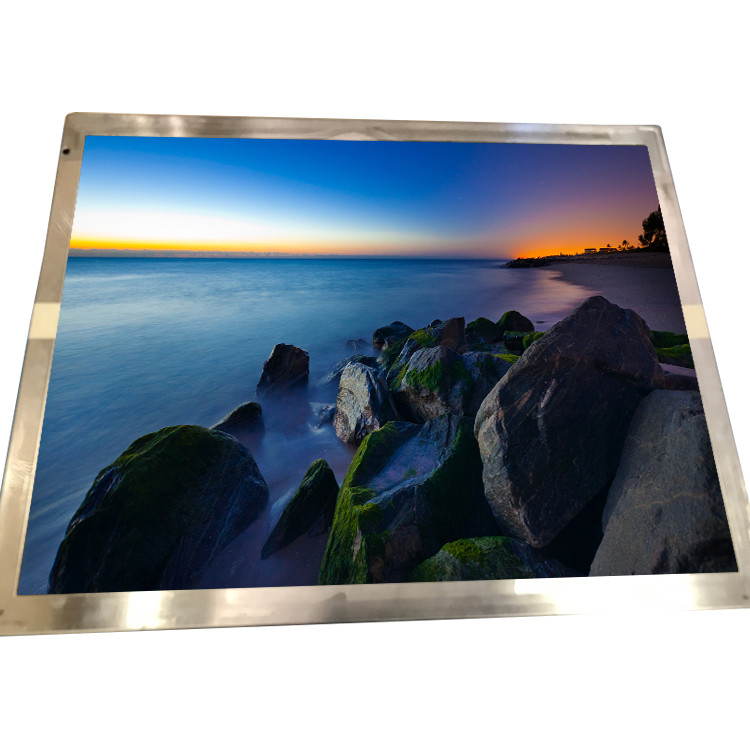

B156XTN04.2 15.6 inch 1366*768 lcd screen for Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B156XTN04.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B156XTN04.2 | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 100PPI | Active Area: | 344.232(W)×193.536(H) Mm |
| Bezel Opening: | 346.2(W)×195.5(H) Mm | Outline (mm): | 359.5(W)×223.8(H)×3.8(D) Mm |
| Luminance: | 220 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Lamp Type: | WLED , 15K Hours , With LED Driver | Used For: | Laptop |
| Highlight: | Laptop LCD Screen Display Module Pane,LG LCD Screen Display Module Panel,LC150X01-SL01 LCD Laptop Screen |
||
Product Description
B156XTN04.2 15.6 inch 1366*768 lcd screen for Laptop
B156XTN04.2 Product details :
| Brand | AUO |
| Model P/N | B156XTN04.2 |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.232(W)×193.536(H) mm |
| Bezel Opening | 346.2(W)×195.5(H) mm |
| Outline Size | 359.5(W)×223.8(H)×3.8(D) mm |
| Brightness | 220 cd/m² (Typ.) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 262K 45%NTSC |
| Frequency | 60Hz |
| Shape Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(Tr+Td) |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Touch Screen | Without |
| Application | Laptop |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
B156XTN04.2 Terms of Service:
Thank you for reviewing the important information, I will tell you the important steps:
The screen of the machine is inside the device, you need to disassemble the machine, and then send me the screen picture (this is very important, please pay attention),And tell me the length, width, and thickness of the screen.
B156XTN04.2 Shippment & Packing
B156XTN04.2 Shipping:
Any order will be shipped the same day or next day within 24 hours. (*Certain restrictions applied. Available on business day only.)
Your shipping address must be correct and complete ( we will not be responsible for any extra cost may happen due to the incorrect or incomplete address provided)
No Local Pick Up
International order will take 25-30 days to arrive, we will not be responsible for any local customs and tax
B156XTN04.2 About guarantee:
1: The product is damaged during the warranty period, we can replace it for free or get a full refund. For some high-value products, the buyer needs to return the package to us.
2: If the product has any problems, we will try our best to solve the problem and provide good after-sales service. Please keep in touch with us.
B156XTN04.2 FAQ:
Q: Can you tested the B156XTN04.2 before shipping ?
A: Of course , our lcd panel B156XTN04.2 was Strictly tested before shipping.
Q: How to order B156XTN04.2 ?
A: We accept T/T , Paypal , western union .
Q: How long the warranty of the lcd B156XTN04.2 ?
A: 90 days .
Q: What happen if the lcd panel B156XTN04.2 I received can't work ?
A: B156XTN04.2 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
