High Brightness 220cd 40 Pins Laptop LCD Display Screen B140XW01 V6

All Category

Floor Standing Digital Signage

High Brightness 220cd 40 Pins Laptop LCD Display Screen B140XW01 V6

Brand Name:	AUO
Model Number:	B140XW01 V6
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model P/N:

B140XW01 V6

Diagonal Size:

14.0"

Resolution:

1366(RGB)×768 WXGA 112PPI

Active Area:

309.399 × 173.952 Mm (H×V)

Outline Size:

323.5 × 192 × 5.2 Mm (H×V×D)

Brightness:

220 Cd/m² (Typ.)

Contrast Ratio:

500:1 (Typ.) (TM)

Viewing Angle:

45/45/15/35 (Typ.) (CR≥10)

Display Colors:

262K , 60% NTSC

Application:

Laptop

Supply Ability:

100000 Unit/Units per Month

Highlight:

High Brightness Laptop LCD Display

220cd Laptop LCD Display

B140XW01 V6 40 Pin LCD Screen

Product Description

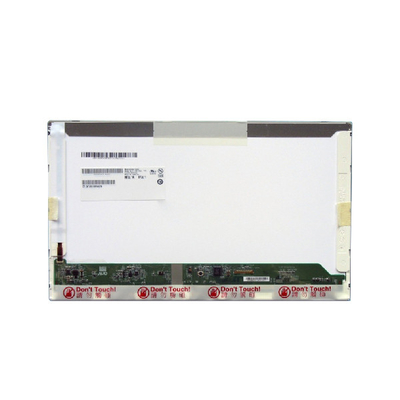

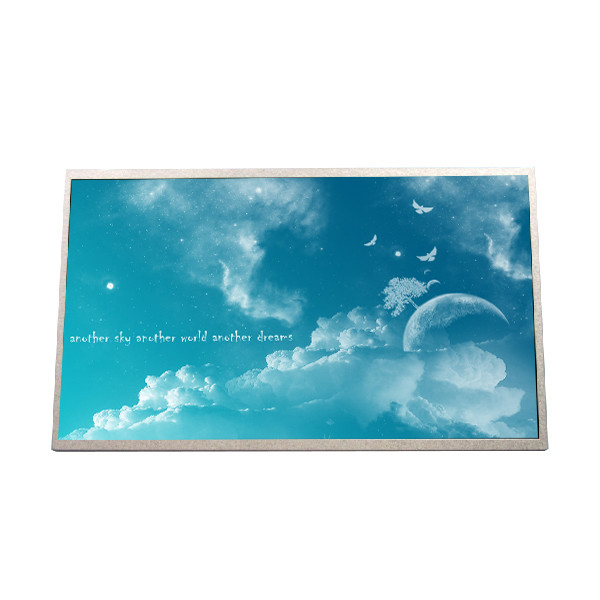

High Brightness 220cd 40 Pins Laptop LCD Display Screen B140XW01 V6

14.0 inch 1366*768 B140XW01 V6 40 pins LCD SCREEN for Laptop

B140XW01 V6 Product details :

AUO LCD SCREEN B140XW01 V6
Panel Brand	AUO
Panel Model	B140XW01 V6
Panel Size	14.0"
Panel Type	a-Si TFT-LCD , LCM
Resolution	1366(RGB)×768 WXGA 112PPI
Pixel Format	RGB Vertical Stripe
Display Area	309.399(W)×173.952(H) mm
Bezel Opening	312.40(W)×176.95(H) mm
Outline Size	323.5(W)×192(H)×5.2(D) mm
Surface	Mirror (Haze 0%), Hard coating (3H)
Brightness	220 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (Transmission)
Viewing Angle	45/45/15/35 (Typ.) (CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	8 (Typ.)(Tr+Td) ms
Display Colors	262K , 60% NTSC
Lamp Type	WLED , 10K hours, with LED driver
Frequency	60Hz
Used for	Laptop
Touch Screen	Without
Signal Interface	LVDS (1 ch, 6-bit) , 40 pins , terminal
Input Voltage	3.3V (Typ.)
Environment	Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C
*14.0 inch 1366768 B140XW01** V6 40 pins LCD SCREEN for Laptop

B140XW01 V6 Customer Service Policy:

We are more than happy to answer any questions that you have, please contact with

1:Orders processed timely after the payment verification.

2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.

3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!

4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.

B140XW01 V6 About Shipping:

We will test them strictly before shipping.

we will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.

It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.

B140XW01 V6 Shipment Details:

1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.

2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days

3: If you do not receive the goods within 45 days, please contact us. And give us 3 business days to check the packages that are not delivered and the reasons. If this is our problem, we will refund your money.

B140XW01 V6 FAQ:

Q: How to order AUO lcd panel B140XW01 V6 ?

A: We accept T/T , Paypal , western union .

Q: Can you tested the B140XW01 V6 before shipping ?

A: Of course , 10.1 inch lcd screen B101EW05 V3 was Strictly tested before shipping.

Q: What happen if the B140XW01 V6 received can't work ?

A: B140XW01 V6 lcd panel was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

Q: How long the warranty of the B140XW01 V6 ?

A: 90 days .

B140XW01 V6 Shippment & Packing
