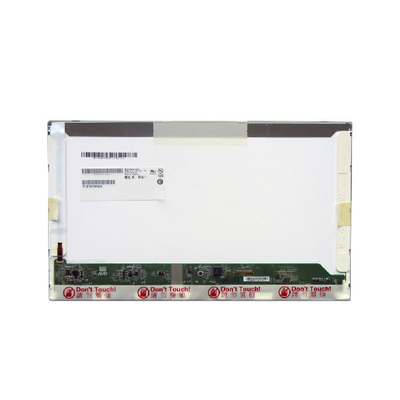

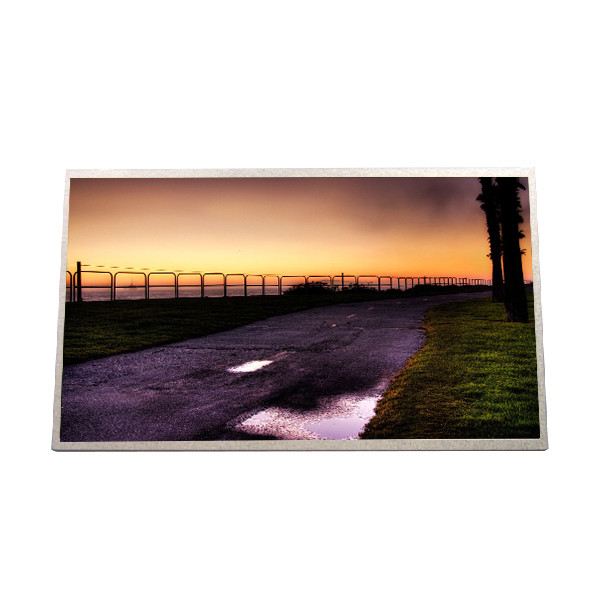

14 Inch 1366*768 WXGA 112PPI LCD Laptop Screen B140XW01 V7 Model
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B140XW01 V7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B140XW01 V7 | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 WXGA 112PPI | Active Area: | 309.399 × 173.952 Mm (H×V) |
| Outline Size: | 323.5 × 192 × 5.2 Mm (H×V×D) | Brightness: | 200 Cd/m² (Typ.) |
| Contrast Ratio: | 400:1 (Typ.) (TM) | Viewing Angle: | 45/45/15/35 (Typ.) (CR≥10) |
| Display Colors: | 262K , 60% NTSC | Application: | Laptop |
| High Light: | B140XW01 V7 LCD Laptop Screen,WXGA 112PPI LCD Laptop Screen,B140XW01 V7 14 Inch LCD Screen |
||
Product Description
14 Inch 1366*768 WXGA 112PPI LCD Laptop Screen B140XW01 V7 Model
14.0 inch 1366*768 B140XW01 V7 LCD SCREED for Laptop
B140XW01 V7 Product details :
| AUO LCD SCREEN B140XW01 V7 | |
| Panel Brand | AUO |
| Panel Model | B140XW01 V7 |
| Panel Size | 14.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 WXGA 112PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 309.399(W)×173.952(H) mm |
| Outline Size | 323.5(W)×192(H)×5.2(D) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (Transmission) |
| Viewing Angle | 45/45/15/35 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 60% NTSC |
| Lamp Type | WLED , 10K hours, with LED driver |
| Frequency | 60Hz |
| Designed For | Laptop |
| Touch Screen | Without |
| Signal Interface | LVDS (1 ch, 6-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| 14.0 inch 1366*768 B140XW01 V7 LCD SCREED for Laptop | |
B140XW01 V7 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
B140XW01 V7 About Shipping:
We will test them strictly before shipping.
we will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
B140XW01 V7 Refund&Return Policy
We will refund you if the screen was damaged during transportation.
We will pack it very well, don't worry about packing.
You can return the items if item was not as description.
B140XW01 V7 FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Do you accept the sample order of B140XW01 V7 ?
A: Yes, Welcome !
Q: How long the warranty of B140XW01 V7 ?
A: 90 days .
Q: What happen if the B140XW01 V7 received can't work ?
A: Our B140XW01 V7 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
B140XW01 V7 Shippment & Packing
