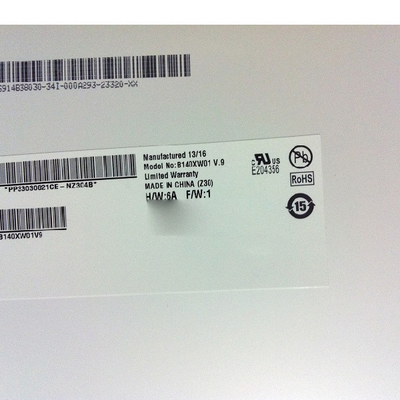

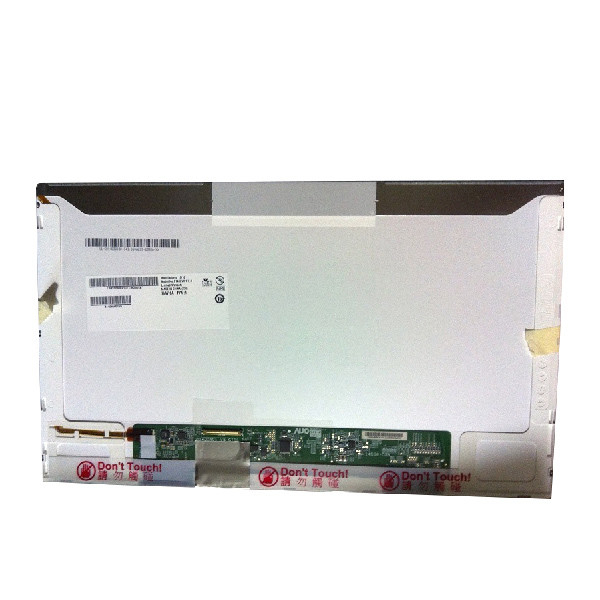

1366*768 B140XW01 V9 40 Pins LCD Laptop Screen Display 14.0 Inch
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B140XW01 V9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B140XW01 V9 | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 WXGA 112PPI | Active Area: | 309.399 × 173.952 Mm (H×V) |
| Outline Size: | 323.5 × 192 × 5.2 Mm (H×V×D) | Brightness: | 200 Cd/m² (Typ.) |
| Contrast Ratio: | 400:1 (Typ.) (TM) | Viewing Angle: | 45/45/15/35 (Typ.) (CR≥10) |
| Display Colors: | 262K , 45% NTSC | Application: | Laptop |
| High Light: | B140XW01 V9 LCD Laptop Screen,40 Pins LCD Laptop Screen,Laptop 40 Pin LCD Screen |
||
Product Description
1366*768 B140XW01 V9 40 Pins LCD Laptop Screen Display 14.0 Inch
14.0 inch 1366*768 B140XW01 V9 40 pins Laptop Screen Display
B140XW01 V9 Product details :
| AUO LCD SCREEN B140XW01 V9 | |
| Panel Brand | AUO |
| Panel Model | B140XW01 V9 |
| Panel Size | 14.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 WXGA 112PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 309.399 × 173.952 mm (H×V) |
| Bezel Opening | 312.40 × 176.95 mm (H×V) |
| Outline Size | 323.5 × 192 × 5.2 mm (H×V×D) |
| Surface | Matte, Hard coating (3H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (Transmission) |
| Viewing Angle | 45/45/15/35 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 10K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Designed For | Laptop |
| Signal Interface | LVDS (1 ch, 6-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| 14.0 inch 1366*768 B140XW01 V9 40 pins Laptop Screen Display | |
B140XW01 V9 Useful news:
Our shop has been engaged in physical store wholesale and online retail wholesale in the LCD screen industry for 10 years.
There are many models to choose from and will be uploaded one after another. If you need any screen, you can leave me a message.
Note: Please disassemble the machine before placing an order, and send us the correct screen picture for confirmation, so as to avoid sending the wrong goods.
B140XW01 V9 About Shipping:
We will test them strictly before shipping.
we will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
B140XW01 V9 Attention of receiving:
When receiving the products from the express company, please check the package is fineby face to face. If the package was broken or the product was broken, please refuse receiving and require taking photos as the evidence. The photos take two parts and separate into two parts. One to customer self for evidence, another to the express company who as the third part. Then when we receive the photos from the express company who give us the damaged product, we will finger out the case who take the responsibility for the damaged product.
We can`t compensation without the third party evidencePeace of mind with 100% satisifaction Guarantee.
Good quality,competitive price and 5 years trading business experience
If the product is not defective, the buyer is responsible for returning shipping costs and insurance. There will be a 25% restocking fee for returning an item what is not defective.
B140XW01 V9 FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of B140XW01 V9 ?
A: Of course!sample order is welcome !
Q: How to make payment of B140XW01 V9 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of B140XW01 V9 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
B140XW01 V9 Shippment & Packing
