50pins Connector LCD Screen Display Panel For Automotive Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD103JPW2-F12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD103JPW2-F12 | Diagonal Size: | 10.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×720 200PPI | Active Area: | 243.648(W)×91.368(H) Mm |
| Outline Size: | 258.9(W)×111.1(H) ×15.3(D) Mm | Brightness: | 1000 Cd/m² (Typ.) |
| Contrast Ratio: | 1500:1 (Typ.) (TM) | Display Mode: | IPS Pro, Normally Black, Transmissive |
| Weight: | 330g (Typ.) | Application: | Outdoor High Brightness / Automotive Display |
| High Light: | 50pins Connector LCD Screen Display Panel,10.3Inch LCD Screen Display Panel,HSD103JPW2-F12 LCD Display Screen Module |
||
Product Description

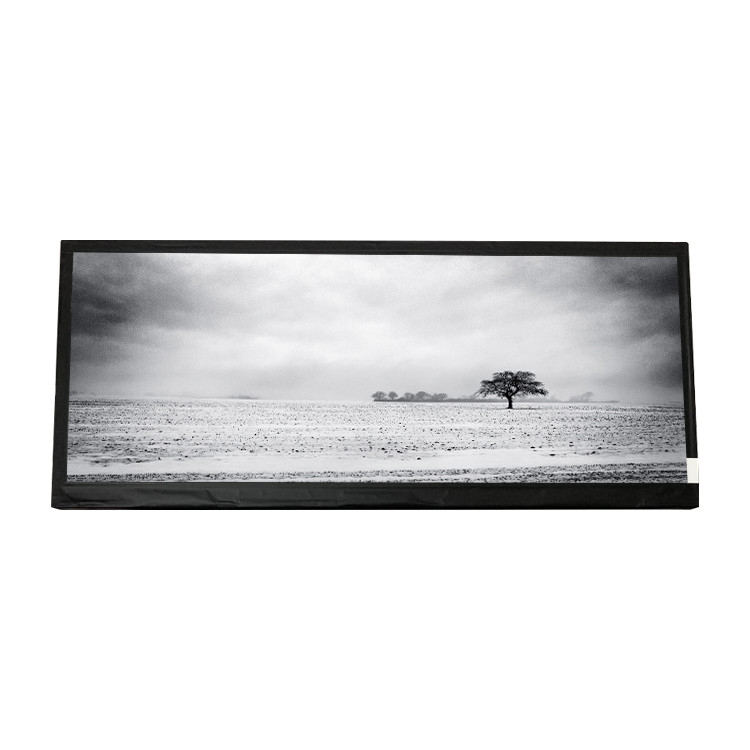

50pins Connector LCD Screen Display Panel For Automotive Display
10.3 Inch LCD Module 1920*720 Resolution HSD103JPW2-F12 Screen for Automotive Display
HSD103JPW2-F12 Product details :
| HannStar LCD Screen HSD103JPW2-F12 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD103JPW2-F12 |
| Diagonal Size | 10.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 200PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 243.648(W)×91.368(H) mm |
| Outline Size | 258.9(W)×111.1(H) ×15.3(D) mm |
| Surface | Hard coating |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Viewing Angle | 85/85/75/75 (Typ.)(CR≥10) |
| Display Mode | IPS Pro, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Max.)(Tr+Td) |
| Display Colors | 16.7M 75% NTSC |
| Lamp Type | 9S4P WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Weight | 330g (Typ.) |
| Application | Outdoor High Brightness / Automotive Display |

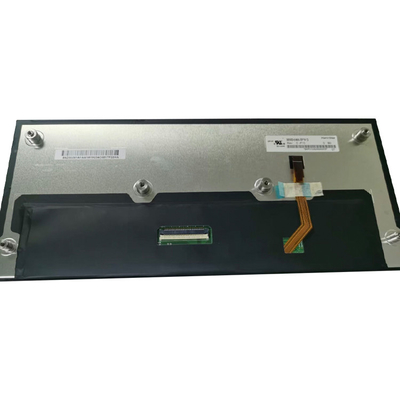

| Signal Interface | LVDS (2 ch, 8-bit) , 50 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| 10.3 Inch LCD Module 1920*720 Resolution HSD103JPW2-F12 Screen for Automotive Display | |
HSD103JPW2-F12 Useful news:
Our shop has been engaged in physical store wholesale and online retail wholesale in the LCD screen industry for 10 years.
There are many models to choose from and will be uploaded one after another. If you need any screen, you can leave me a message.
Note: Please disassemble the machine before placing an order, and send us the correct screen picture for confirmation, so as to avoid sending the wrong goods.
HSD103JPW2-F12 Shippment & Packing
HSD103JPW2-F12 About Shipping:
We will test them strictly before shipping.
we will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
HSD103JPW2-F12 Attention of receiving:
When receiving the products from the express company, please check the package is fineby face to face. If the package was broken or the product was broken, please refuse receiving and require taking photos as the evidence. The photos take two parts and separate into two parts. One to customer self for evidence, another to the express company who as the third part. Then when we receive the photos from the express company who give us the damaged product, we will finger out the case who take the responsibility for the damaged product.
We can`t compensation without the third party evidencePeace of mind with 100% satisifaction Guarantee.
Good quality,competitive price and 5 years trading business experience
If the product is not defective, the buyer is responsible for returning shipping costs and insurance. There will be a 25% restocking fee for returning an item what is not defective.
HSD103JPW2-F12 FAQ:
Q: Can You declare my order of HSD103JPW2-F12 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: If I place order now,when will you ship the goods of HSD103JPW2-F12 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of HSD103JPW2-F12 via credit card ?
A:Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
