LM215WF1-TLE1 Original 21.5 inch LCD Display Module Panel for Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM215WF1-TLE1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM215WF1-TLE1 | Diagonal Size: | 21.5" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 102PPI | Active Area: | 476.64(W)×268.11(H) Mm |
| Bezel Opening: | 479.8(W)×271.3(H) Mm | Outline Size: | 495.6(W)×292.2(H)×15(D) Mm |
| Frequency: | 60Hz | Application: | Desktop Monitor |
| Highlight: | Digital Signage LCD Display,Display Video Wall,LCD Screen Display Panel |
||
Product Description

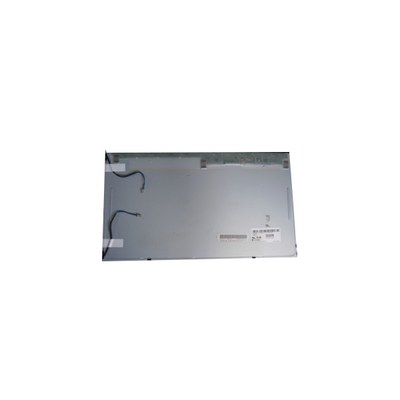

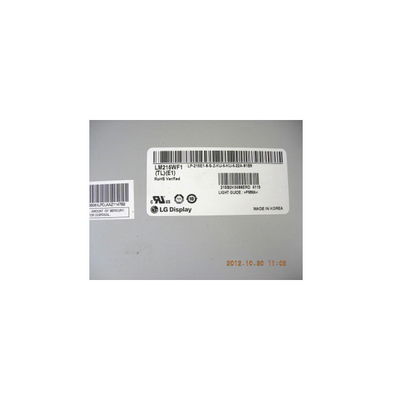

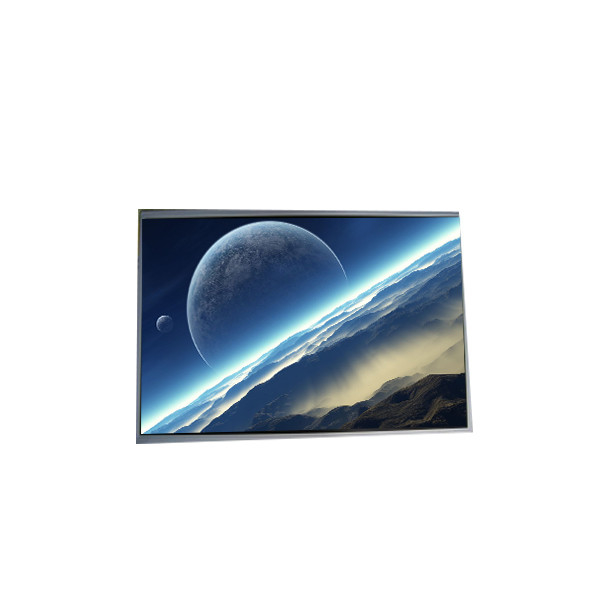

LM215WF1-TLE1 Original 21.5 inch LCD Display Module Panel for Desktop Monitor
LM215WF1-TLE1 Product details :
| Brand | LG Display |
| Model P/N | LM215WF1-TLE1 |
| Diagonal Size | 21.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 102PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 476.64(W)×268.11(H) mm |
| Bezel Opening | 479.8(W)×271.3(H) mm |
| Outline Size | 495.6(W)×292.2(H)×15(D) mm |
| Brightness | 250 cd/m² (Typ.) |
| Viewing Angle | 85/85/75/85 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 16.7M 72%NTSC |
| Frequency | 60Hz |
| Weight | 1.90/2.00Kgs (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 1.3/3.7 (Typ.)(Tr/Td) |
| Lamp Type | 2 pcs CCFL , 50K hours , Without Driver |
| Touch Screen | Without |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
LM215WF1-TLE1 Friendly Reminder :
- Installation guide not included, we are not responsible for any damage caused by installation of this accessory, please be sure you know how to install before bid.
- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
- Please make sure you understand disassembly procedure before purchase.
- We only accept return in original condition and strongly recommend customer to test item before installation.
LM215WF1-TLE1 Shipping and Package :
LM215WF1-TLE1 Shipping:
We are shipping the goods to every country of the world!
Usually the goods will be sent at the next working day after payment, the shipping time depends on your country of residence, depending on your country's customs!
Our default shipping method is Hong Kong DHL, And predicte the delivery time acording to your country of residence, if out of delivery times, have not received merchandise, please contact us and we will solve the problem the first time!
If you need other shipping methods, such as Fedex/ DHL/UPS or other shipping methods, required additional shipping costs to pay $35
LM215WF1-TLE1 Return policy:
&. When you received the item , if the product does't work or damage , we will resend the new one to you.
&. When you return the product ,Please keep the item in the same condition we offered you.
&. The buyer is responsible for the return shipping.
LM215WF1-TLE1 FAQ:
Q: How to order LG lcd panel LM215WF1-TLE1 ?
A: We accept the T/T , Western union , paypal .
Q: How long the warranty of LM215WF1-TLE1 ?
A: 90days.
Q: What happen if the LM215WF1-TLE1 I received can't work ?
A: Our LG LM215WF1-TLE1 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can you declared low price of my TFT-LCD LM215WF1-TLE1 when shipping?
A: Yes , please inform us the value you want .
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
