High Luminance Hard Coating Flat Panel LCD Monitor For HannStar
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD101IHW1-C00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD101IHW1-C00 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×720, WXGA 144PPI | Active Area: | 224.64(W)×126.36(H) Mm |
| Outline Dim.: | 238.48(W)×148(H) Mm | Treatment: | Hard Coating |
| Luminance: | 750 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Operating Mode: | HS-IPS Pro, Normally Black, Transmissive | Designed For: | Automotive Display |
| High Light: | Hard Coating Flat Panel LCD Monitor,HannStar TFT LCD Panel,HSD101IHW1-C00 TFT LCD Panel |
||
Product Description
High Luminance Hard Coating Flat Panel LCD Monitor For HannStar
10.1 INCH 1280*720 a-Si TFT-LCD Panel HSD101IHW1-C00 for HannStar
HSD101IHW1-C00 Product details :
| HannStar LCD Screen HSD101IHW1-C00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD101IHW1-C00 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×720, WXGA 144PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 224.64(W)×126.36(H) mm |
| Outline Dim. | 238.48(W)×148(H) mm |
| Treatment | Hard coating |
| Luminance | 750 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | HS-IPS Pro, Normally Black, Transmissive |
| Support Color | 262K/16.7M 70% NTSC |
| Light Source | WLED , W/O Driver |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |

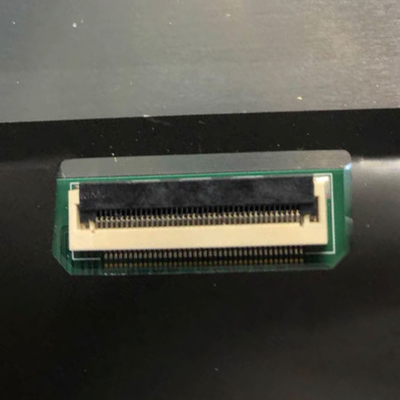

| Interface Type | LVDS (1 ch, 6/8-bit) , 40 pins FPC |
| Environment | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| 10.1 INCH 1280*720 a-Si TFT-LCD Panel HSD101IHW1-C00 for HannStar | |
HSD101IHW1-C00 Payments :
We accept paypal only.
Buyer is under obligation if (in case) the item is liable to your country's customs duties. We are not responsible for your country's any taxe or customs fee. Our prices do NOT include any customs duty or tax. Please verify it.
HSD101IHW1-C00 Shippment & Packing
HSD101IHW1-C00 Shipping :
1, Shipping via China Post Registered Air Mail or ePacket.
2, We will send out your goods within 3 working days after we get your order .
3, Normally , you can get the goods within 27 calendar days .
4, Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
HSD101IHW1-C00 Warranty :
1, We take 12 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .
HSD101IHW1-C00 FAQ:
Q: How can I trace my order of HSD101IHW1-C00 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of HSD101IHW1-C00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of HSD101IHW1-C00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods HSD101IHW1-C00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
