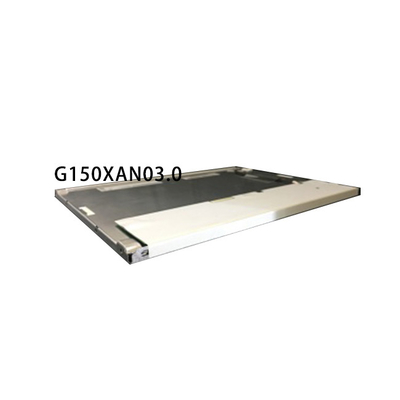

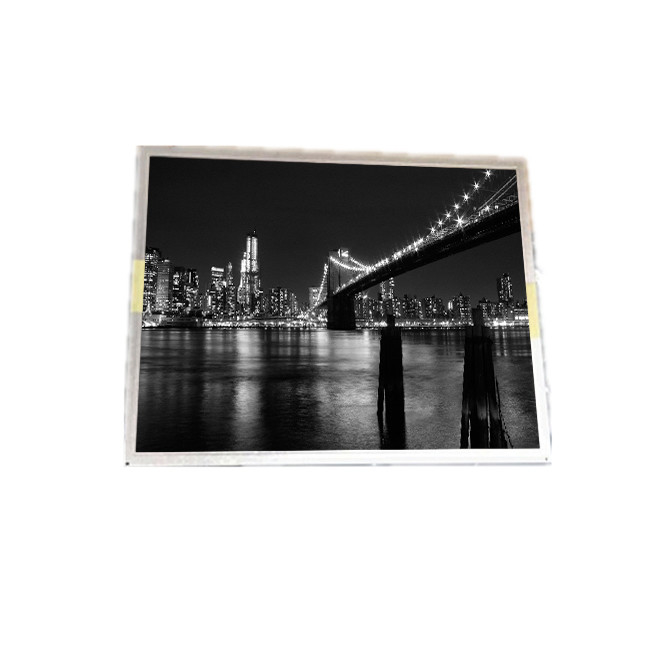

15 Inch IPS 30 Pins TFT Module LCD Screen Display Panel For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G150XAN03.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | G150XAN03.0 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA, 85PPI | Active Area: | 304.128(W)×228.096(H) Mm |
| Outline Dim.: | 314.13 × 245.3 × 6.8 Mm (H×V×D) | Luminance: | 400 Cd/m² (Typ.) |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Response Time: | 25 (Typ.)(Tr+Td) |
| Display Colors: | 16.2M , 60% NTSC | Designed For: | Industrial |
| High Light: | IPS LCD Screen Display Panel,G150XAN03.0 LCD Screen Display Panel,30 Pins TFT LCD Module |
||
Product Description
15 Inch IPS 30 Pins TFT Module LCD Screen Display Panel For Industrial
15 inch IPS G150XAN03.0 30 pins tft lcd module for Industrial
G150XAN03.0 Product details :
| AUO LCD SCREEN G150XAN03.0 | |
| Panel Brand | AUO |
| Panel Model | G150XAN03.0 |
| Panel Size | 15.0 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(W)×228.096(H) mm |
| Outline Size | 314.13 × 245.3 × 6.8 mm (H×V×D) |
| Surface | Matte, Hard coating (3H) |
| Brightness | 400 (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (Transmission) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 16.2M , 60% NTSC |
| Lamp Type | WLED , 50K hours, with LED driver |
| Frequency | 60Hz |
| Panel Weight | 920g (Max.) |
| Used for | Industrial |
| Touchscreen | Without |
| Signal Interface | eDP (1 Lane) , terminal, 30 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Working: -20 ~ 75 °C ; Storage: -20 ~ 75 °C |
| 15 inch IPS G150XAN03.0 30 pins tft lcd module for Industrial | |
G150XAN03.0 Payment:
1.We Only Accept Paypal . For specific requirements, please feel free to contact us.
2.Payment must be made within 48hrs of the auction end time.
3.If don't need,Please send us the cancel requeste.
G150XAN03.0 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
G150XAN03.0 Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
G150XAN03.0 Warranty & Maintenance:
We offer the 1 month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. We also provide 12 months free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
G150XAN03.0 FAQ:
Q: Do you accept sample orders for G150XAN03.0 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of G150XAN03.0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for G150XAN03.0 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of G150XAN03.0 at a very low value ?
A: Yes , we can . pls inform us before shipping .
G150XAN03.0 Shippment & Packing
