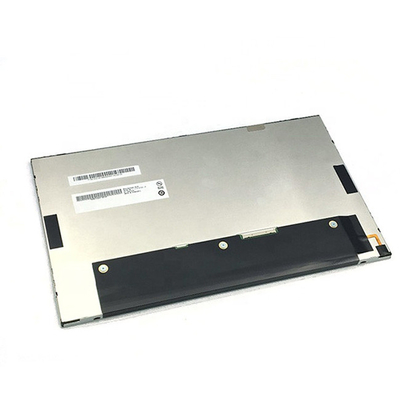

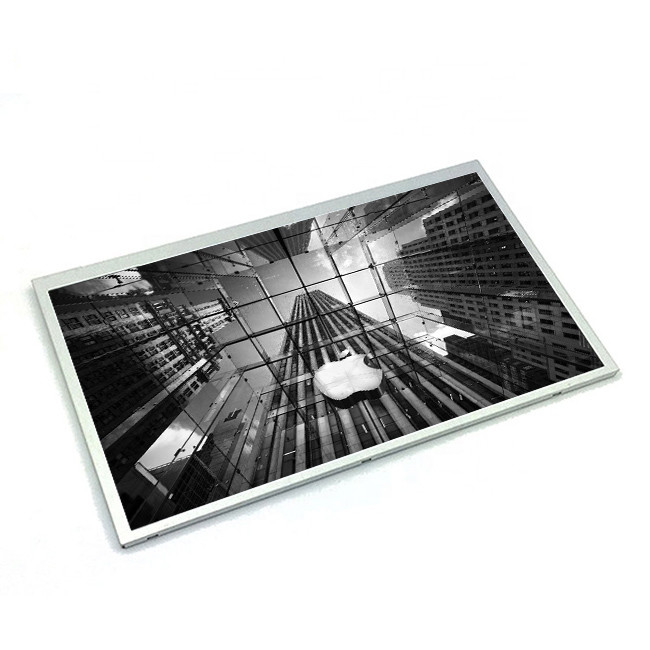

G133XTN01.2 13.3inch 1366*768 40 Pins LCD Screen Module LVDS interface
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G133XTN01.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | G133XTN01.2 | Diagonal Size: | 13.3" |
|---|---|---|---|
| Resolution: | 1366(RGB)*768 WXGA 118PPI | Active Area: | 293.42(W)*164.97(H) Mm |
| Outline Dim.: | 306.3(W)*197.2(H)*3(D) Mm | Luminance: | 300 Cd/m² (Typ.) |
| Contrast Ratio: | 400:1 (Typ.) (TM) | Response Time: | 306.3(W)×197.2(H)×3(D) Mm |
| Display Colors: | 16.7M , 46% NTSC | Designed For: | Industrial |
| High Light: | LVDS Interface LCD Screen Module,G133XTN01.2 LCD Screen Module,13.3inch 40 Pin LCD Screen |
||
Product Description
G133XTN01.2 13.3inch 1366*768 40 Pins LCD Screen Module LVDS Interface
G133XTN01.2 13.3 inch 1366*768 40 pins lcd screen module LVDS
G133XTN01.2 Product details :
| AUO LCD SCREEN G133XTN01.2 | |
| Panel Brand | AUO |
| Panel Model | G133XTN01.2 |
| Panel Size | 13.3 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 WXGA 118PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 293.42(W)×164.97(H) mm |
| Outline Size | 306.3(W)×197.2(H)×3(D) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (Transmission) |
| Viewing Angle | 70/70/50/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 5.7/2.3 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M , 46% NTSC |
| Lamp Type | WLED , 20K hours, with LED driver |
| Frequency | 60Hz |
| Panel Weight | 255g (Max.) |
| Used for | Industrial |
| Touchscreen | Without |
| Signal Interface | 40 pins LVDS (1 ch, 8-bit) , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: -20 ~ 60 °C ; Storage temperature: -30 ~ 70 °C |
| G133XTN01.2 13.3 inch 1366*768 40 pins lcd screen module LVDS | |
G133XTN01.2 Payment:
1.We Only Accept Paypal . For specific requirements, please feel free to contact us.
2.Payment must be made within 48hrs of the auction end time.
3.If don't need,Please send us the cancel requeste.
G133XTN01.2 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
G133XTN01.2 Final Closing Statement:
ITEMS PURCHASED FROM US MUST BE REMOVED FROM OUR FACILITY NO LATER THAN 30 DAYS AFTER AUCTION ENDS. UNLESS ARRANGEMENTS HAVE BEEN MADE WITH US AT OR BEFORE SALE DATE. AFTER 30 DAYS THE ITEM WILL BE RESOLD.
G133XTN01.2 FAQ:
Q: Can You declare my order of G133XTN01.2 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of G133XTN01.2 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of G133XTN01.2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of G133XTN01.2?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of G133XTN01.2 ?
A: Of course!If you make a large order, we will give you a discount.
G133XTN01.2 Shippment & Packing
