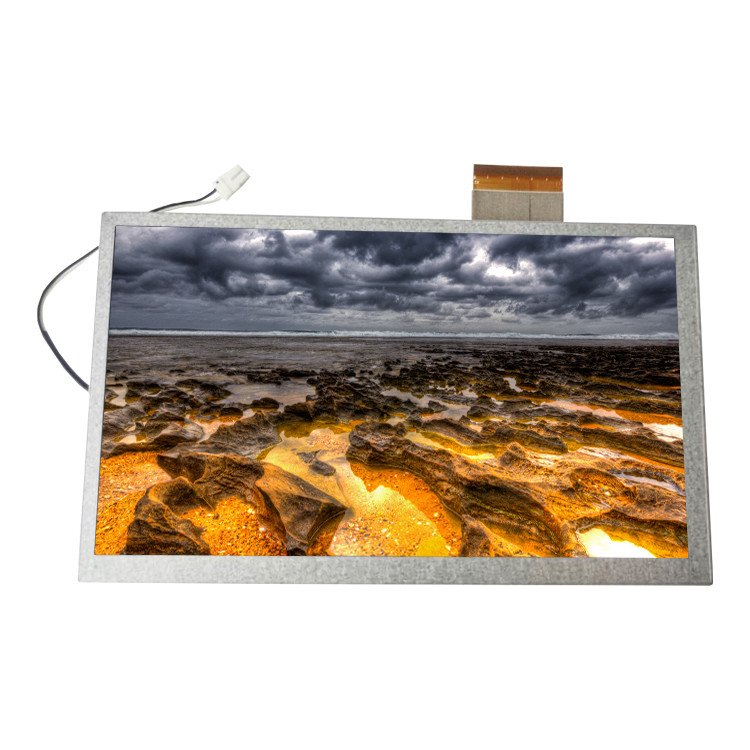

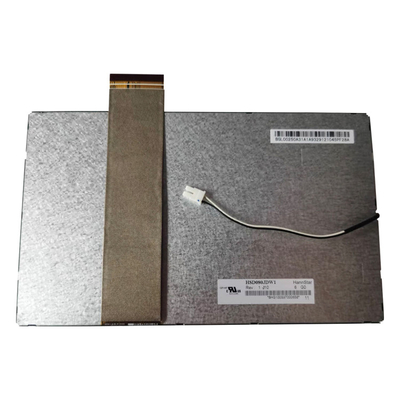

HSD080JDW1-J10 8.0 inch Industrial LCD Panel Display 800*480 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD080JDW1-J10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD080JDW1-J10 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 116PPI | Active Area: | 176.64(W)×99.36(H) Mm |
| Outline Dim.: | 192.8(H)×116.9(V) ×6.9(D) Mm | Luminance: | 700 Cd/m² (Typ.) |
| Contrast Ratio: | 600:1 (Typ.) (TM) | Response Time: | 25 (Typ.)(Tr+Td) |
| Weight: | 215g (Typ.) | Designed For: | Outdoor High Brightness / Automotive Display |
| High Light: | TFT Industrial LCD Panel Display,HSD080JDW1-J10 Industrial LCD Panel Display,800*480 TFT LCD Display Panel |
||
Product Description
HSD080JDW1-J10 8.0 inch Industrial LCD Panel Display 800*480 LCD Screen
HSD080JDW1-J10 Original 8.0 inch TFT LCD Display Panel 800*480 LCD Screen
HSD080JDW1-J10 Product details :
| HannStar LCD Screen HSD080JDW1-J10 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD080JDW1-J10 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 176.64(W)×99.36(H) mm |
| Outline Dim. | 192.8(H)×116.9(V) ×6.9(D) mm |
| Treatment | Hard coating, Antireflection |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.2M 50% NTSC |
| Light Source | WLED , 30K hours , W/O Driver |
| Weight | 215g (Typ.) |
| Designed For | Outdoor High Brightness / Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | TTL (1 ch, 6/8-bit) , 60 pins FPC |
| Power Supply | 3.3/15/-9/10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| HSD080JDW1-J10 Original 8.0 inch TFT LCD Display Panel 800*480 LCD Screen | |
HSD080JDW1-J10 Payment:
1.We Only Accept Paypal . For specific requirements, please feel free to contact us.
2.Payment must be made within 48hrs of the auction end time.
3.If don't need,Please send us the cancel requeste.
HSD080JDW1-J10 Shippment & Packing
HSD080JDW1-J10 Shipping:
We ship worldwide (Standard)via FedEx,DHL,UPS & Purolator. However if you need it in real rush we can ship it overnight on your account as well or else extra shipping charges will be added to the cost. There is no Packaging or Handling fees for regular orders. However, if equipment is needed immediately, evenings, or weekends, an additional fee will be added.
Shipping Cost will be calculated later as per your need(rush/regular) and location.
International shipments will usually be handled by Fedex unless another carrier is requested. A discount on shipping will apply if more than one item is purchased. Please call or email for an exact quote.
HSD080JDW1-J10 Final Closing Statement:
ITEMS PURCHASED FROM US MUST BE REMOVED FROM OUR FACILITY NO LATER THAN 30 DAYS AFTER AUCTION ENDS. UNLESS ARRANGEMENTS HAVE BEEN MADE WITH US AT OR BEFORE SALE DATE. AFTER 30 DAYS THE ITEM WILL BE RESOLD.
HSD080JDW1-J10 FAQ:
Q: If I place order now,when will you ship the goods of HSD080JDW1-J10 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of HSD080JDW1-J10 ?
A: Of course!sample order is welcome !
Q: How to make payment of HSD080JDW1-J10 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of HSD080JDW1-J10 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
