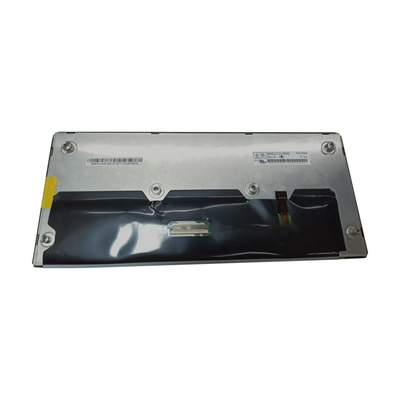

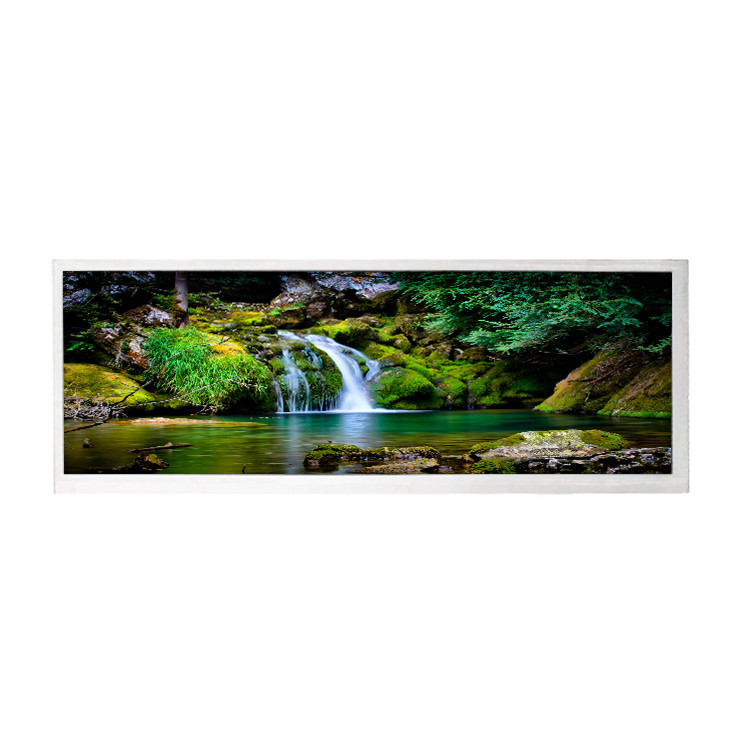

10.3 Inch 1920*720 LCD Display Screen Panel HSD103JPW2-A00
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD103JPW2-A00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD103JPW2-A00 | Diagonal Size: | 10.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×720 200PPI | Active Area: | 243.648(W)×91.368(H) Mm |
| Bezel Opening: | 246.05(W)×93.77(H) Mm | Outline Dim.: | 259.8(H)×112(V) ×15.7(D) Mm |
| Luminance: | 850 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Weight: | TBD | Designed For: | Outdoor High Brightness / Automotive Display |
| High Light: | 10.3 Inch LCD Display Screen,LVDS LCD Display Screen,HSD103JPW2-A00 Lvds Display Panel |
||
Product Description
10.3 Inch 1920*720 LCD Display Screen Panel HSD103JPW2-A00
Original in stock 10.3 inch 1920*720 LCD Display Screen HSD103JPW2-A00
HSD103JPW2-A00 Product details :
| HannStar LCD Screen HSD103JPW2-A00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD103JPW2-A00 |
| Diagonal Size | 10.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 200PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 243.648(W)×91.368(H) mm |
| Bezel Opening | 246.05(W)×93.77(H) mm |
| Outline Dim. | 259.8(H)×112(V) ×15.7(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 850 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 35 (Max.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Support Color | 16.7M 70% NTSC |
| Light Source | WLED [9S4P] , 20K hours , W/O Driver |
| Weight | TBD |
| Designed For | Outdoor High Brightness / Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 50 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| Original in stock 10.3 inch 1920*720 LCD Display Screen HSD103JPW2-A00 | |
HSD103JPW2-A00 Terms of Service:
Thank you for reviewing the important information, I will tell you the important steps:
The screen of the machine is inside the device, you need to disassemble the machine, and then send me the screen picture (this is very important, please pay attention),And tell me the length, width, and thickness of the screen.
HSD103JPW2-A00 Shippment & Packing
HSD103JPW2-A00 GUARANTEE AND RETURN:
1. We offer guarantee for all our products.
2. Buyers will bear the shipping cost of returning defective or non-defective items.
3. Returned items must be in good condition like the one we send, not damaged.
4. Returned items are subject to approval by us, must be in the original box as shipped.
5. Damaged items received must be reported within 2 days.
6. All non-seller error returns,shipping and handling charges are non-refundable.
HSD103JPW2-A00 Contact us:
If you have any questions,you are welcome to contact our customer service staffs by email. We strive to answer all questions and resolve any problems as quickly as possible.
HSD103JPW2-A00 Business Hours:
(Beijing Time)
Mon-Sat:10:00-18:00(except most national holiday)
HSD103JPW2-A00 FAQ:
Q: How to make payment of HSD103JPW2-A00 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of HSD103JPW2-A00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of HSD103JPW2-A00 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods HSD103JPW2-A00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
