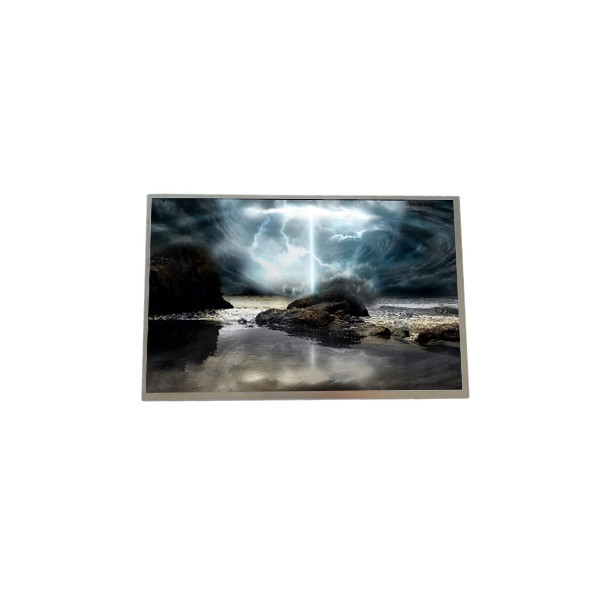

10.1 Inch 1280x800 TFT LCD Screen Display Panel B101EW05 V2 For Tablet
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101EW05 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B101EW05 V2 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA, 149PPI | Active Area: | 216.96 × 135.6 Mm (H×V) |
| Bezel Opening: | 220.76 × 139.00 Mm (H×V) | Outline Size: | 229.46 × 149.2 × 5.2 Mm (H×V×D) |
| Brightness: | 350 Cd/m² (Typ.) | Contrast Ratio: | 1300:1 (Typ.) (TM) |
| Display Colors: | 262K , 45% NTSC | Application: | Pad & Tablet |
| High Light: | TFT LCD Screen Display Panel,B101EW05 V2 LCD Screen Display Panel,10.1 Inch TFT LCD Screen |
||
Product Description
10.1 Inch 1280x800 TFT LCD Screen Display Panel B101EW05 V2 For Tablet
10.1 inch 1280x800 TFT LCD B101EW05 V2 for Tablet LCD SCREEN
B101EW05 V2 Product details :
| AUO LCD SCREEN B101EW05 V2 | |
| Panel Brand | AUO |
| Panel Model | B101EW05 V2 |
| Panel Size | 10.1" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×800, WXGA, 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 216.96 × 135.6 mm (H×V) |
| Bezel Opening | 220.76 × 139.00 mm (H×V) |
| Outline Size | 229.46 × 149.2 × 5.2 mm (H×V×D) |
| Surface | Hard coating (3H), reflectivity 1.5% (Typ.) |
| Brightness | 350 (Typ.) |
| Contrast Ratio | 1300 : 1 (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | MVA, Normally Black, Transmissive |
| Response Time | 25(Typ.)(Tr+Td) |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Designed For | Pad & Tablet |
| Touch Panel | Without |
| Panel Weight | 180g (Max.) |
| Signal Interface | LVDS (1 ch, 6-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| 10.1 inch 1280x800 TFT LCD B101EW05 V2 for Tablet LCD SCREEN | |
B101EW05 V2 Before purchase:
.To avoid common errors, please match the original screen with the image and description
We provide it in this list. If you are unsure if this screen is suitable for your machine, please send us your machine model and original LCD. You can find the model on the back of the LCD.
·All items will be tested before shipment. For all LCD screens, unless the exact model is mentioned, you will receive a 100% compatible model. We reserve the right to ship compatible screens
(Part numbers may vary, but 100% compatibility is guaranteed) If you require a specific model, please contact us before purchasing.
B101EW05 V2 Return:
1.Our Return Policy does not extended to any products that are physically damaged or that are not under normal operating conditions as a result of misuse or improper installation on the buyer/user's part.
2.This product comes with 60-Day Money Back Guarantee.
3.For all returned products, please contact us for the returning address.
4.We stand behind every product we sell. If you're not pleased with your purchase, we'll be happy to make an exchange or refund.
B101EW05 V2 About Us:
1.Our working time: Hong Kong time: Monday to Saturday Everyday 9:00 am to 18:00 pm.
2.Any questions, please contact us via eBay message, In our working hours will be resumed within 48 hours.
B101EW05 V2 FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to order lcd panel B101EW05 V2 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: Can you test lcd panel B101EW05 V2 before shipping?
A: Of course , Our B101EW05 V2 was tested before shipping ,So Don't Worry the item quailty .
B101EW05 V2 Shippment & Packing
