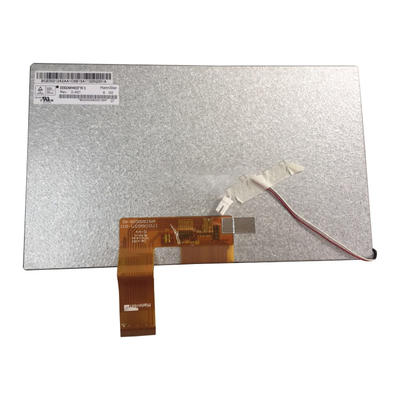

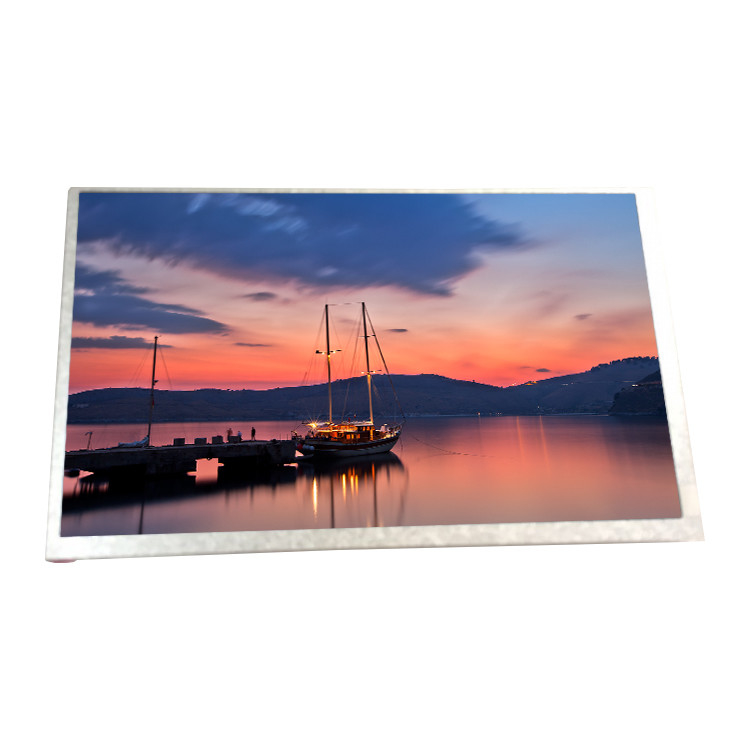

9.0 Inch HannStar LCD Display Screens For Automotive Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD090IFW1-A01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD090IFW1-A01 | Diagonal Size: | 9.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 132PPI | Active Area: | 196.608(W)×114.15(H) Mm |
| Bezel Opening: | 200.01(W)×117.55(H) Mm | Outline Dim.: | 211.1(H)×126.5(V) ×6(D) Mm |
| Luminance: | 500 Cd/m² (Typ.) | Response Time: | 18/17 (Typ.)(Tr/Td) |
| Weight: | 240g (Typ.) | Designed For: | Automotive Display |
| High Light: | HannStar LCD Display Screens,HSD090IFW1-A01 LCD Display Screens,HannStar Liquid Crystal Display |
||
Product Description
9.0 Inch HannStar LCD Display Screens For Automotive Display
9.0 Inch Lcd Display Screens HannStar HSD090IFW1-A01 for Automotive Display
HSD090IFW1-A01 Product details :

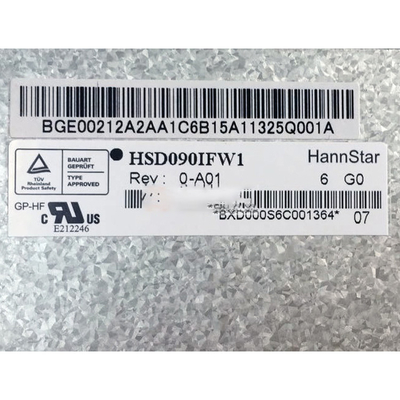

| HannStar LCD Screen HSD090IFW1-A01 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD090IFW1-A01 |
| Diagonal Size | 9.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 132PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 196.608(W)×114.15(H) mm |
| Bezel Opening | 200.01(W)×117.55(H) mm |
| Outline Dim. | 211.1(H)×126.5(V) ×6(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 18/17 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS-Pro, Normally Black, Transmissive |
| Support Color | 262K/16.2M 55% NTSC |
| Light Source | WLED [3S13P] , 15K hours , W/O Driver |
| Weight | 240g (Typ.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit) , 40 pins FPC |
| Power Supply | 3.3/12.6/23/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| 9.0 Inch Lcd Display Screens HannStar HSD090IFW1-A01 for Automotive Display | |
HSD090IFW1-A01 Payment:
· We only accept payment by paypal.
· Please make the payment within 5 days after auction. An unpaid item dispute might be opened if payment have not been received within 5 days.
· The price can be negotiable depending on the purchase quantity.
· Please contact us if you have any questions of payment procedures.
HSD090IFW1-A01 Shippment & Packing
HSD090IFW1-A01 Warm Reminder:
(1). To Brazil buyers, Need to offer us CNPJ or CPF if ship the goods by DHL/FEDEX/EMS.
(2). To Russia buyers, The goods only can be shipped by EMS , The buyer need to offer full name of receiver!
(3). The Duty or custom fees is depend on BUYER country, Not Seller! If need declare low value when shipping , Please advise us in time !
(4). To remote areas buyers , If ship the order by FEDEX/DHL , Need to add extra fee USD30.00 , Hope buyer can understand us.
HSD090IFW1-A01 Replacement/Exchange:
(1). We accept replacement or exchange within 30days.
(2). Please keep the goods in the same condition we offered when the buyer return the goods to us .
(3). We will resent the goods to buyer in time if happen that goods broken or doen't work.
HSD090IFW1-A01 FAQ:
Q: How long will I receive my goods HSD090IFW1-A01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of HSD090IFW1-A01 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of HSD090IFW1-A01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders of HSD090IFW1-A01 ?
A: Of course!sample order is welcome !
