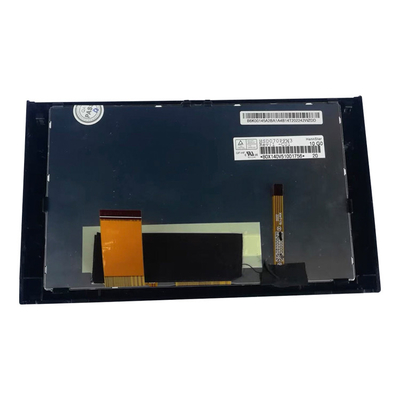

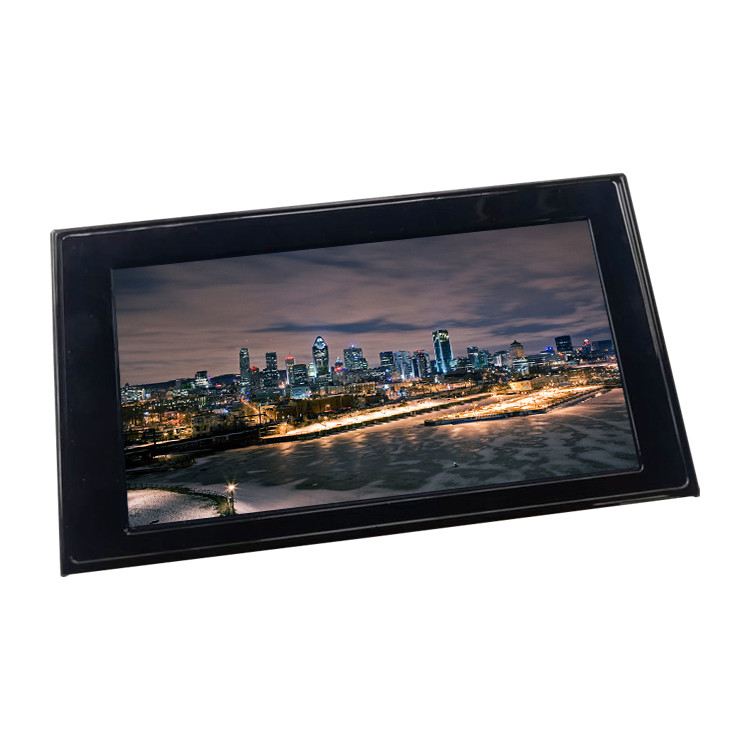

Small 7.0 Inch 1024*600 LCD Screen Panel 600cd TFT Module
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD070PFW3-C01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD070PFW3-C01 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 169PPI | Active Area: | 153.6(W)×90(H) Mm |
| Bezel Opening: | 156.0(W)×91.6(H) Mm | Outline(mm): | 164.4 × 102.2 × 6 (H×V×D) |
| Luminance: | 600cd/m² (Typ.) | Contrast Ratio: | 800 : 1 (Typ.) (TM) |
| Mass: | 112g (Typ.) | Used For: | Automotive Display |
| High Light: | 600cd LCD Screen Panel,HSD070PFW3-C01 Small Lcd Panel,HSD070PFW3-C01 LCD Screen Panel |
||
Product Description
Small 7.0 Inch 1024*600 LCD Screen Panel 600cd TFT Module
7.0 inch 1024*600 HSD070PFW3-C01 LCD screen panel LCD display TFT Module
HSD070PFW3-C01 Product details :

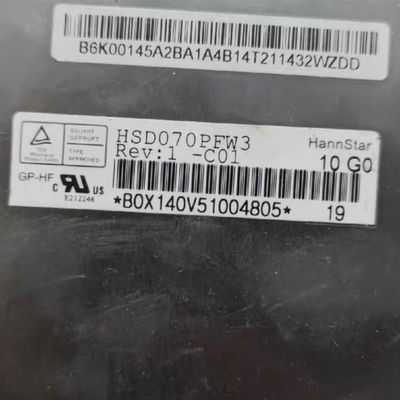

| HannStar LCD Screen HSD070PFW3-C01 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD070PFW3-C01 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 169PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×90(H) mm |
| Bezel Opening | 156.0(W)×91.6(H) mm |
| Outline(mm) | 164.4(W)×102.2(H)×6(D) |
| Treatment | Hard coating |
| Luminance | 600 (Typ.)(cd/m²) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/70 (Typ.)(CR≥10) |
| Work Mode | TN, Normally White, Transmissive |
| Good View at | 6 o'clock |
| Response | 4/12 (Typ.)(Tr/Td) ms |
| Color Depth | 16.7M 50% NTSC |
| Backlight | 3S8P WLED , 10K hours , No Driver |
| Mass | 112g (Typ.) |
| Used for | Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 40 pins FPC |
| Voltage Supply | 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VHL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 7.0 inch 1024*600 HSD070PFW3-C01 LCD screen panel LCD display TFT Module | |
HSD070PFW3-C01 PAYMENT :
We accept payment via Paypal for all our items. For other modes of payment, please check our individual listings.
HSD070PFW3-C01 Shippment & Packing
HSD070PFW3-C01 Description :
1. Our screen is a New Replacement parts for GPS ,it is In stock and with great quality, and has 100% tested well, when we shipped, you can see the tracking number in your order.
2. We will ship it with in 48 hours after you finishing the payment.
3. Our goods will ship with the Strong Packing , Antistatic bags +Bubble bag +Carton Box.
4. Before you confirming the screen can work perfectly, please do not use the adhesive to install our screen to your equipment, if the screen paste the glue, we can not accept you to return it and ask for the payment refunding.
5. Please test the LCD Screen before installing, take a video when test it, make sure it work good, then install. If LCD screen can't work, please provide us this video, we will provide you solution.
6.Please power off your device/ pull off the battery before you test or install the LCD screen! Other wise it won't work!
7.LCD screen is fragile, very easy to break, please be careful when you test or install !
HSD070PFW3-C01 Contact Us:
1. If there's any problem, please do not hesitate to contact us by message, we will reply you within 1 business day. (Not include public holiday)
2. Working Hours: Monday to Saturday
3. If you don't get response within 1-2 business days, please check your email or My Messages in case your email provider has an overly aggressive spam filter blocking or my emails. Please add us in your contact and email us again.
HSD070PFW3-C01 FAQ:
Q: How long will I receive my goods HSD070PFW3-C01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of HSD070PFW3-C01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of HSD070PFW3-C01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of HSD070PFW3-C01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
